Efficiency and precision are the cornerstones of modern manufacturing. To meet demands for high-volume production, workshops rely on specialized machinery that can deliver consistent results quickly. In the world of metalworking, few tools are as impactful as the turret lathe. This versatile machine has long been a hero of mass production, enabling the creation of identical parts with impressive speed and accuracy. Understanding the power of a turret lathe is key to optimizing any production line. This guide will explore everything you need to know about this essential piece of equipment, from its core components to its many benefits.
What Exactly Is a Turret Lathe?
So, what makes a turret lathe different from a standard engine lathe? The key is in the name: the turret. Instead of a conventional tailstock, a turret lathe is equipped with a rotating turret, which is an indexable tool holder. This allows multiple cutting tools to be mounted on the machine at once. During operation, the turret can be quickly rotated to bring each tool to the workpiece in a specific sequence. This design eliminates the need for an operator to manually change tools for different operations like drilling, turning, boring, and threading. The result is a significant reduction in downtime and a dramatic increase in production speed, especially for repetitive tasks.

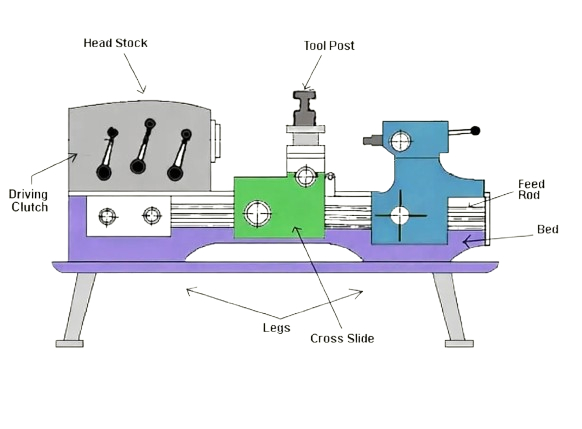

Inside the Machine: Key Components
To fully appreciate the functionality of a turret lathe machine, it’s helpful to understand its main components:
- Headstock: This is the powerhouse of the lathe. It houses the main spindle and the gearing mechanism that drives the rotation of the workpiece. The quality of the headstock is crucial for achieving high precision.
- Turret: The defining feature of the machine, the turret holds a variety of tools. It can be rotated to bring the desired tool into position for cutting, allowing for a seamless transition between different machining operations.
- Tool Post: Often found on the cross slide, the tool post holds tools, typically for facing or cutting-off operations.
- Cross Slide: The cross slide (or carriage) is located between the tool post and saddle of the lathe machine. It is able to slide sideways, which is at a right angle to the movement of the saddle.
- Driving Clutch: Similar to an automobile clutch, it connects or disconnects the prime mover (motor or gear-coupled shaft) with the spindle. Normally disengaged, the clutch must be engaged to transmit power, allowing the spindle to rotate and the machining process to start.
Different Types of Turret Lathes
Turret lathes come in several types, each suited for different tasks:
1. Horizontal Turret Lathe
This is the oldest configuration, where the spindle is oriented horizontally. It is highly versatile and used for a wide range of chucking and bar work.
2. Vertical Turret Lathe
As the name suggests, a vertical turret lathe features a vertical spindle and a horizontal, rotating table that holds the workpiece. This design is ideal for machining large, heavy, and short workpieces, such as flywheels or large gears.
3. Automatic Turret Lathe
An automatic turret lathe represents an improvement over the manual turret lathes. These types of lathes utilize mechanical automation, such as cams and stops, to control the sequence of operations. After the initial setup, an automatic turret lathe will operate with minimal operator intervention, which is ideal for high-volume production.
However, a caveat is that the automation sliding and indexing utilizing a camshaft is only practical on simple geometric shapes because it will not be successful on complex geometries.

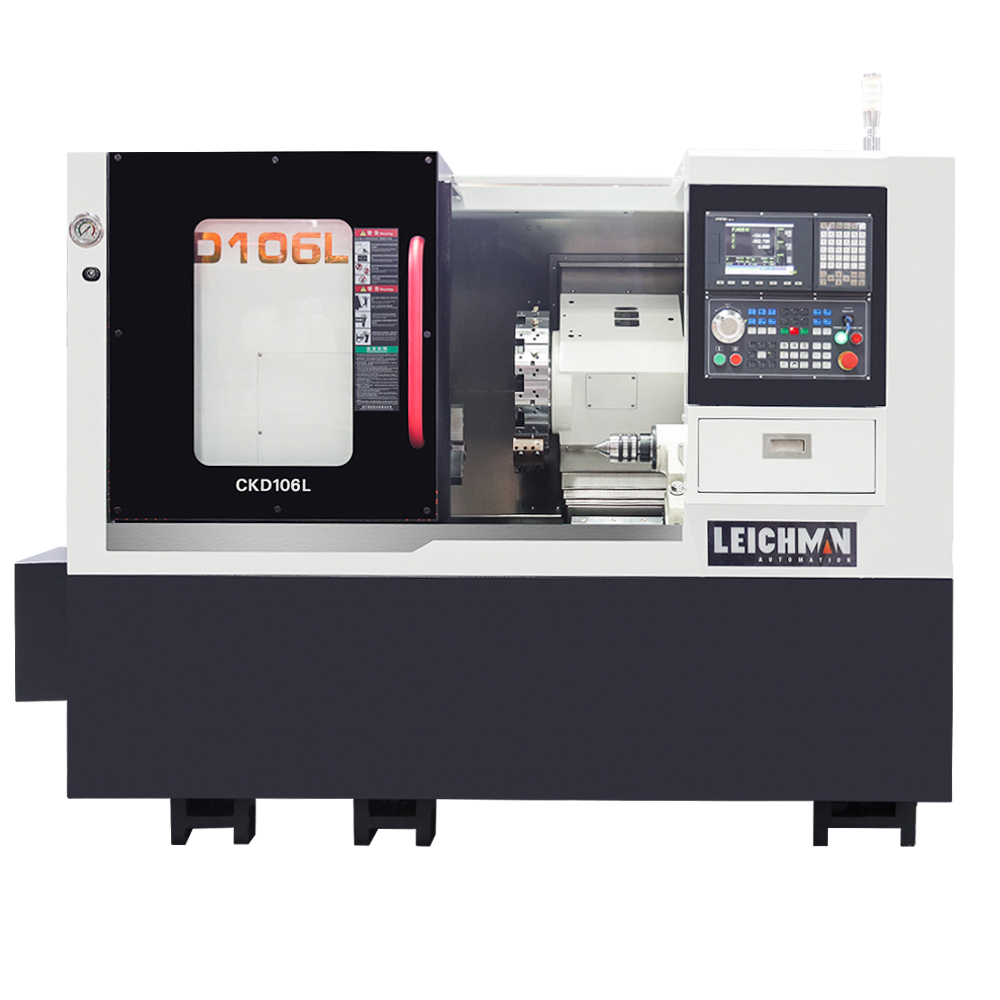

4. CNC Turret Lathe
The CNC turret lathe represents the current advanced state of this technology. They use G-code instructions programmed by a computer to control the spindle speed, feed rate, and movement of the turret. The controller takes the G-codes and directs the CNC turret lathe to perform the required machining operation.
In addition, CNC turret lathes offer the capability of automatic tool changing on the turret and can perform the changes during the machining operation without manual intervention. Therefore, they are adept at the creation of intricate parts with perfect repeatability.
Key Benefits at a Glance
Integrating a turret lathe into your operations brings a wealth of advantages:
- Increased Productivity and Efficiency: Without tool changes, cycle times are drastically reduced.
- Enhanced Precision and Quality: The rigid construction and automated sequencing ensure every part is machined to exact specifications.
- Greater Flexibility and Versatility: A single machine can perform a multitude of operations, from simple turning to complex contouring.
- Reduced Labor Costs: The streamlined process requires less manual intervention, allowing a single operator to manage multiple machines or tasks.
- Wide Range of Applications: From the automotive to the aerospace industry, turret lathes are indispensable for creating components of all shapes and sizes.
Leichman: Your Partner in Precision Machining
At Leichman, we don’t just sell machines—we deliver solutions. We design and manufacture turret lathes that stand out for their durability, precision, and ease of use. Our engineering team continuously refines designs to ensure our products meet global standards while staying cost-effective.
What sets us apart is our dedication to our customers. From consultation to after-sales support, we remain a trusted partner throughout your production journey. Whether you need a cnc turret lathe, a vertical turret lathe, or a customized solution, we provide expertise that helps you achieve efficiency and profitability.
Explore our turret lathe machines and experience the Leichman difference. With us, you’re not just investing in equipment—you’re investing in long-term success.
