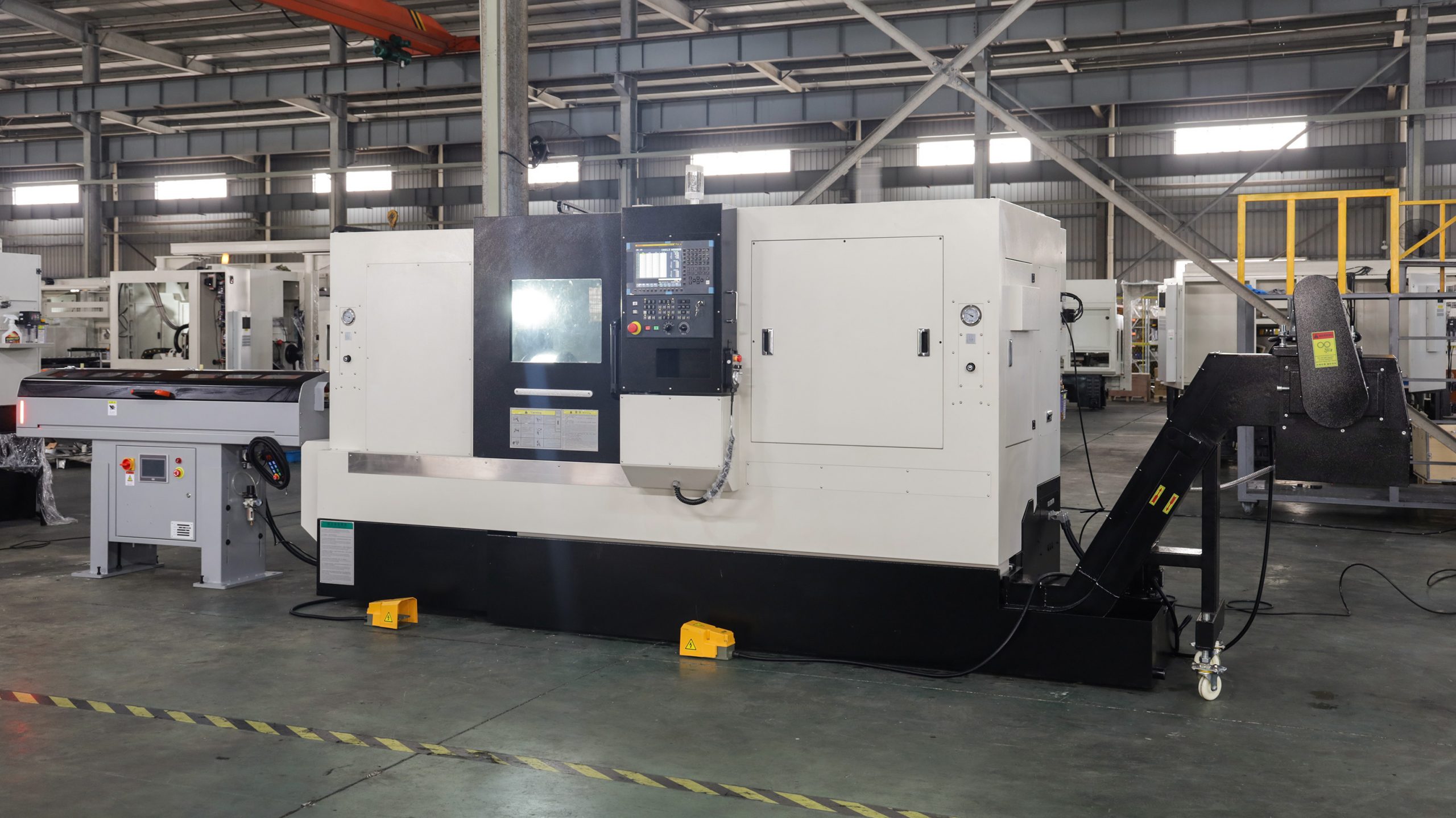

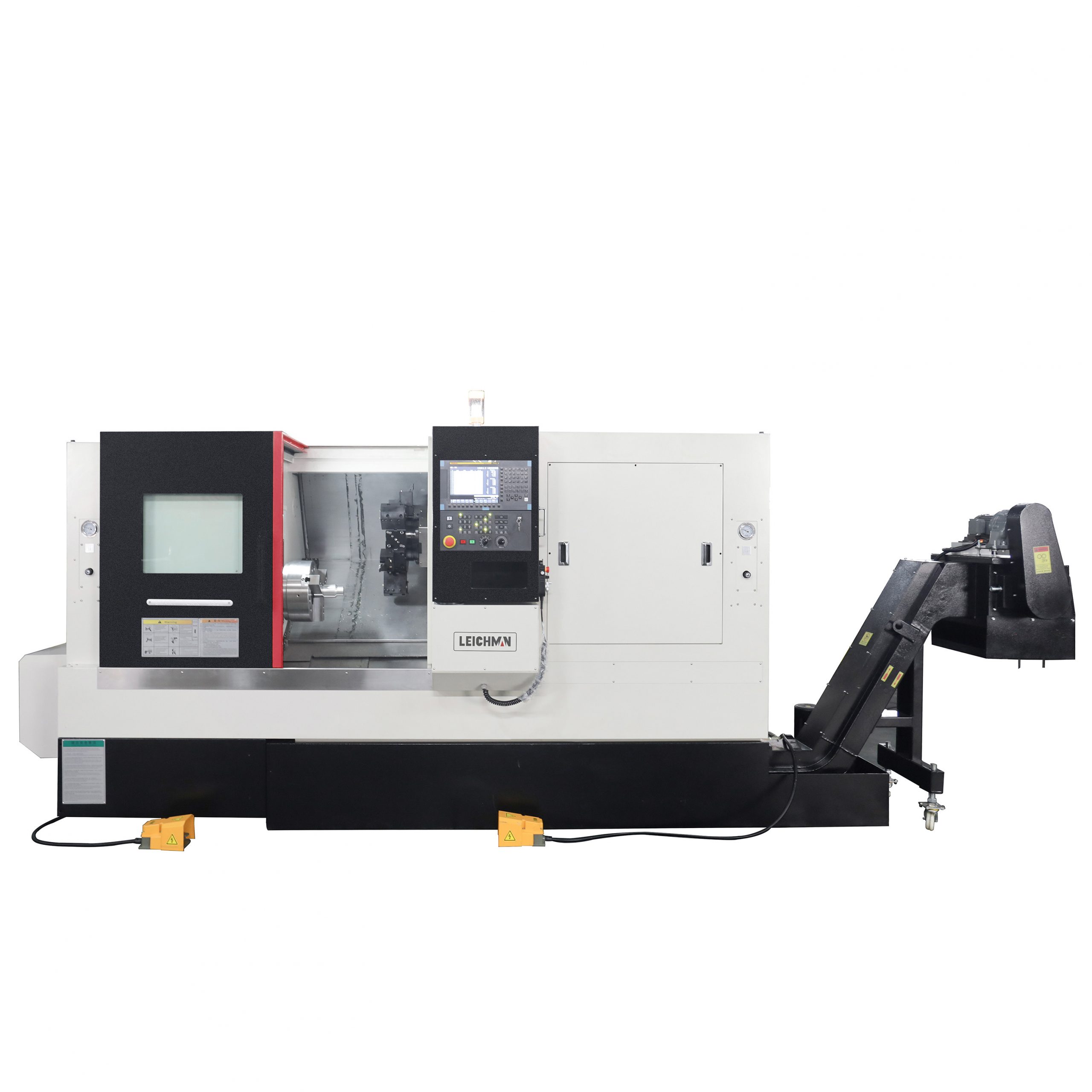

CDS Series equipped with 12+12 position servo power turret, Y axis optional, servo moto-spindle with C axis, can perform turning, milling, drilling, tapping, perfect for thin-shelled parts and complex parts, finish all operations in 1 machine to achieve highest precision.
| Item | Unit | Specifications | |||||
|---|---|---|---|---|---|---|---|
| CDS15 | CDS20 | CDS20L | CDS25 | ||||
| Machining Range | Max Swing | mm | Φ400 | Φ580 | Φ580 | Φ660 | |
| Max Machining Diameter | mm | Φ280 | Φ360 | Φ360 | Φ400 | ||
| X/Z Travel | mm | 160/400 | 200/500 | 200/700 | 230/700 | ||
| X/Z Fast Feed | m/min | 30/30 | 30/30 | 30/30 | 30/30 | ||
| Max Distance Between Center | mm | 500 | 600 | 800 | 800 | ||
| Main spindle | Spindle Size | Left | – | A2-5 | A2-6 | A2-6 | A2-8 |
| Right | – | A2-4 | A2-5 | A2-5 | A2-6 | ||
| Max Spindle Speed | Left | rpm | 5000 | 4000 | 4000 | 3000 | |
| Right | rpm | 5000 | 5000 | 5000 | 4000 | ||
| Main Motor Power | Left | kW | 7.5 | 11 | 11 | 11/15 | |
| Right | kW | 5.5 | 7.5 | 7.5 | 7.5/11 | ||
| Main Spindle Through Hole | Left | mm | Φ56 | Φ63 | Φ63 | Φ93 | |
| Right | mm | Φ46 | Φ56 | Φ56 | Φ63 | ||
| Max Bar Machining Diameter | Left | mm | Φ42 | Φ52 | Φ52 | Φ78 | |
| Right | mm | Φ32 | Φ42 | Φ42 | Φ52 | ||
| X/Z Rotation | X/Z Rotation | rpm | 3000 | 3000 | 3000 | 3000 | |
| Type of Tool Holder | Turret | – | 12 Position | 12 Position | 12 Position | 12 Position | |
| Tool Holder | mm | 25×25 | 25×25 | 25×25 | 25×25/32×32 | ||
| Boring Bar | mm | Φ32 | Φ32 | Φ32 | Φ40 | ||
| Coolant Tank Volume | L | 150 | 180 | 180 | 200 | ||
| Bed Inclination | – | 30° | 30° | 30° | 30° | ||
| Dimension(LxWxH) | mm | 3200x1500x1650 | 3300x1700x1750 | 3500x1700x1750 | 3600x1800x1800 | ||
| Weight | kg | 4800 | 5500 | 5800 | 7000 | ||
One Clamping, Complete Execution: Perform turning, milling, drilling, and tapping across two sides in a single machine setup—drastically cutting production time and manual handling errors.
Streamlined Workflow & Lean Operations: Simplifies production tracking, reduces shop floor bottlenecks, and significantly enhances overall equipment effectiveness (OEE).

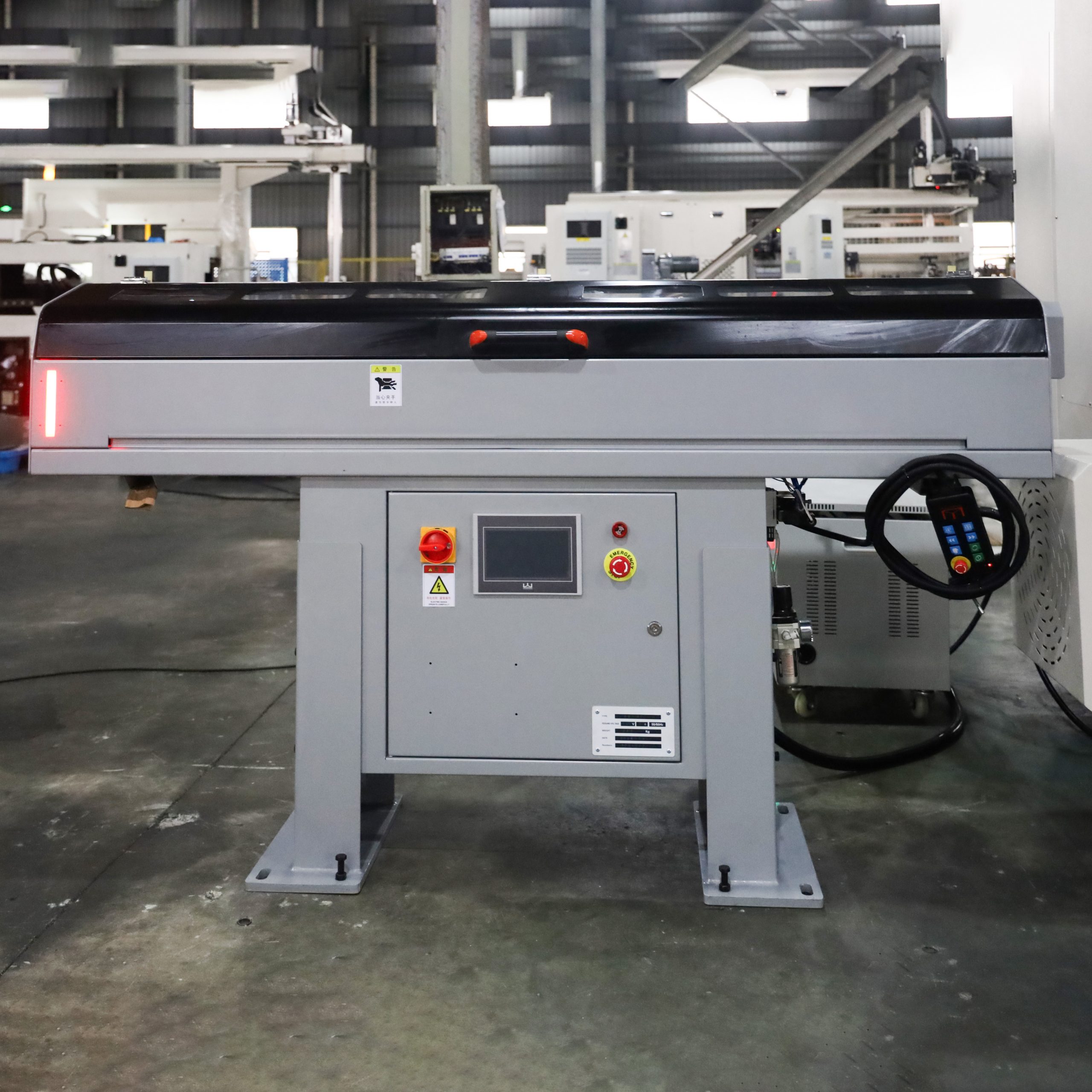

Automated Bar Stock Processing: Designed for high-speed continuous bar feeding, providing an optimized solution to balance operational cycle times between the main and sub-spindles.
Multi-Axis Capability (with Y-Axis): True Y-axis displacement allows complex, off-center multi-task machining for intricate geometry components.

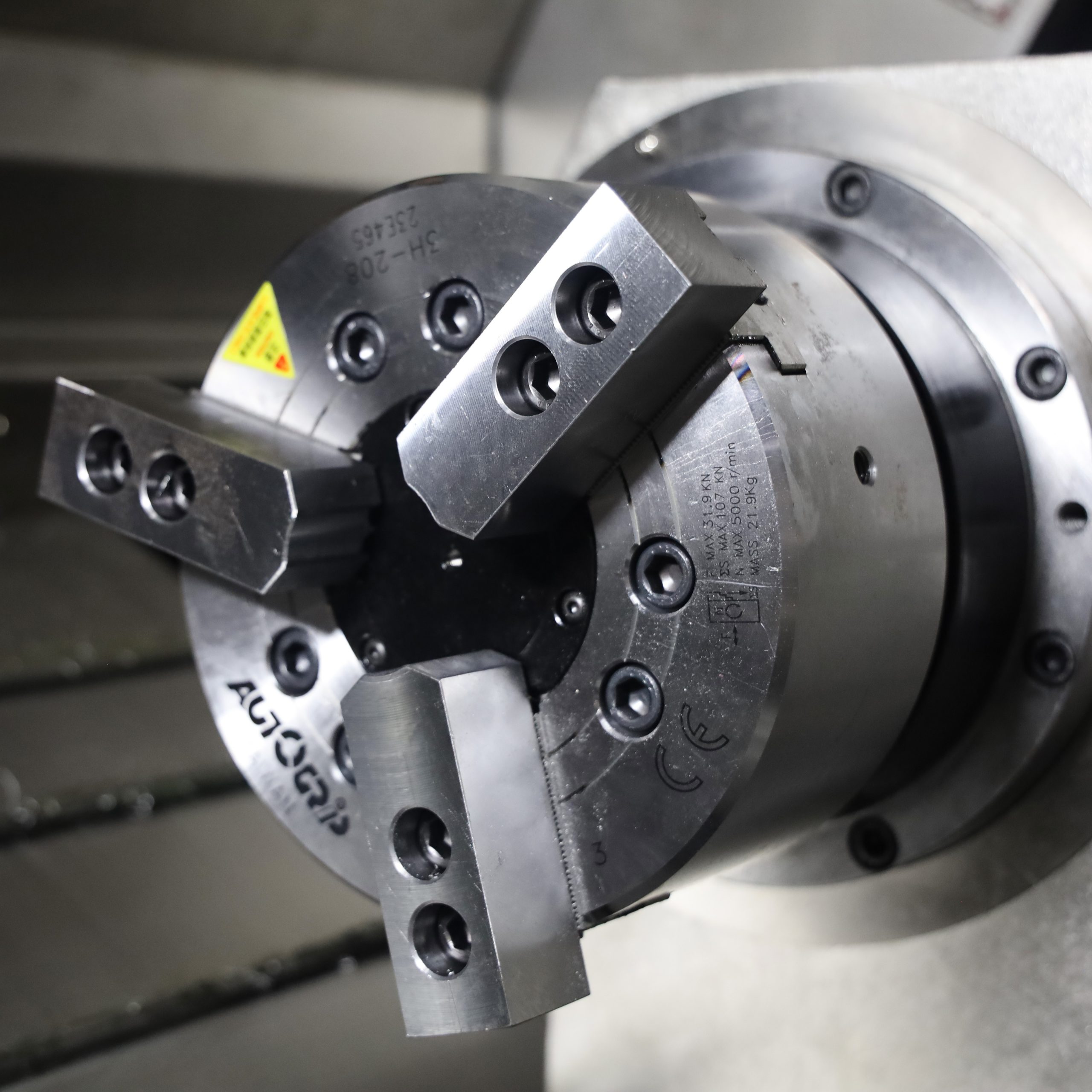

High-Response Servo Moto-Spindle: Delivers seamless torque control, high positioning precision, and fast indexing for complex live tooling applications.
FEA-Optimized Heavy-Duty Structure: Built with a Finite Element Analysis (FEA) optimized main spindle box for continuous structural rigidity under demanding cutting forces.
Advanced Thermal Stability Control: Combines active thermal compensation, integrated heat-dissipation cooling ribs, and a dedicated oil-cooling system to ensure uniform heat distribution and sub-micron repeatability.
Submit your machining requirements for a custom solution proposal within 24 hours.
One Clamping, Complete Execution: Perform turning, milling, drilling, and tapping across two sides in a single machine setup—drastically cutting production time and manual handling errors.
Streamlined Workflow & Lean Operations: Simplifies production tracking, reduces shop floor bottlenecks, and significantly enhances overall equipment effectiveness (OEE).
Automated Bar Stock Processing: Designed for high-speed continuous bar feeding, providing an optimized solution to balance operational cycle times between the main and sub-spindles.
Multi-Axis Capability (with Y-Axis): True Y-axis displacement allows complex, off-center multi-task machining for intricate geometry components.
High-Response Servo Moto-Spindle: Delivers seamless torque control, high positioning precision, and fast indexing for complex live tooling applications.
FEA-Optimized Heavy-Duty Structure: Built with a Finite Element Analysis (FEA) optimized main spindle box for continuous structural rigidity under demanding cutting forces.
Advanced Thermal Stability Control: Combines active thermal compensation, integrated heat-dissipation cooling ribs, and a dedicated oil-cooling system to ensure uniform heat distribution and sub-micron repeatability.
