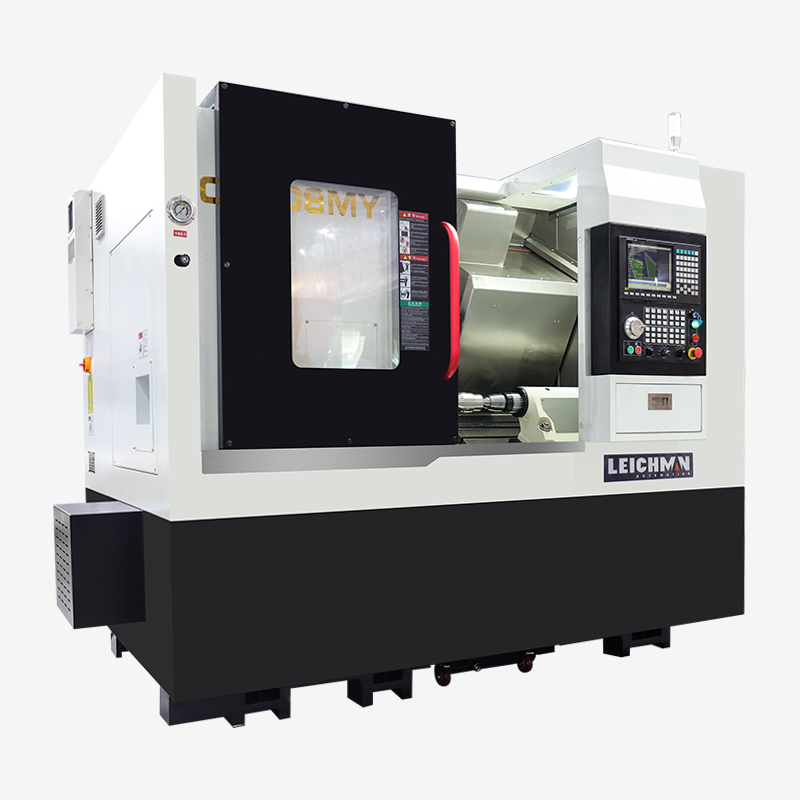

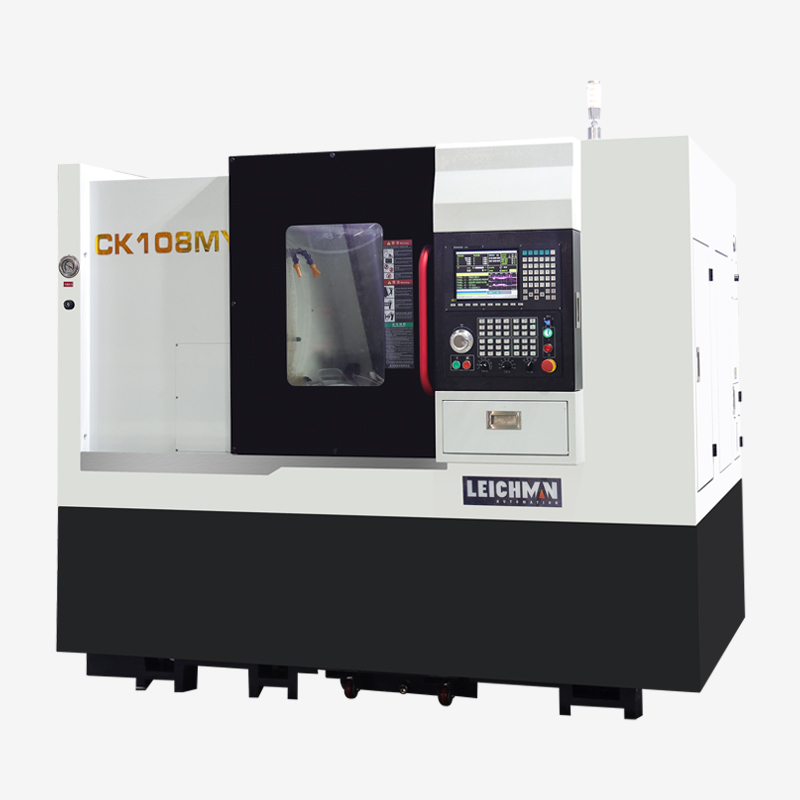

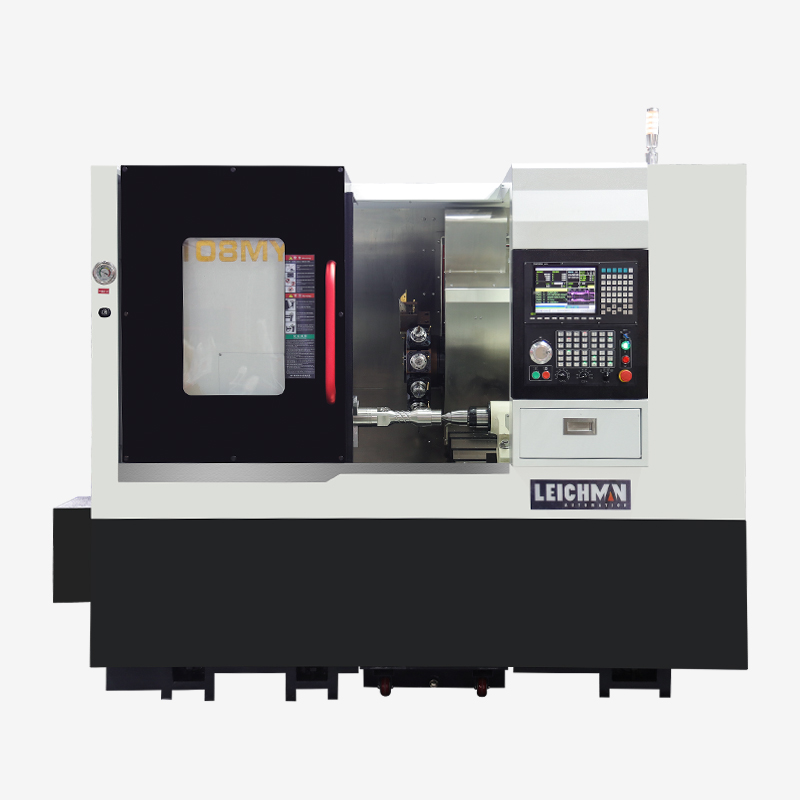

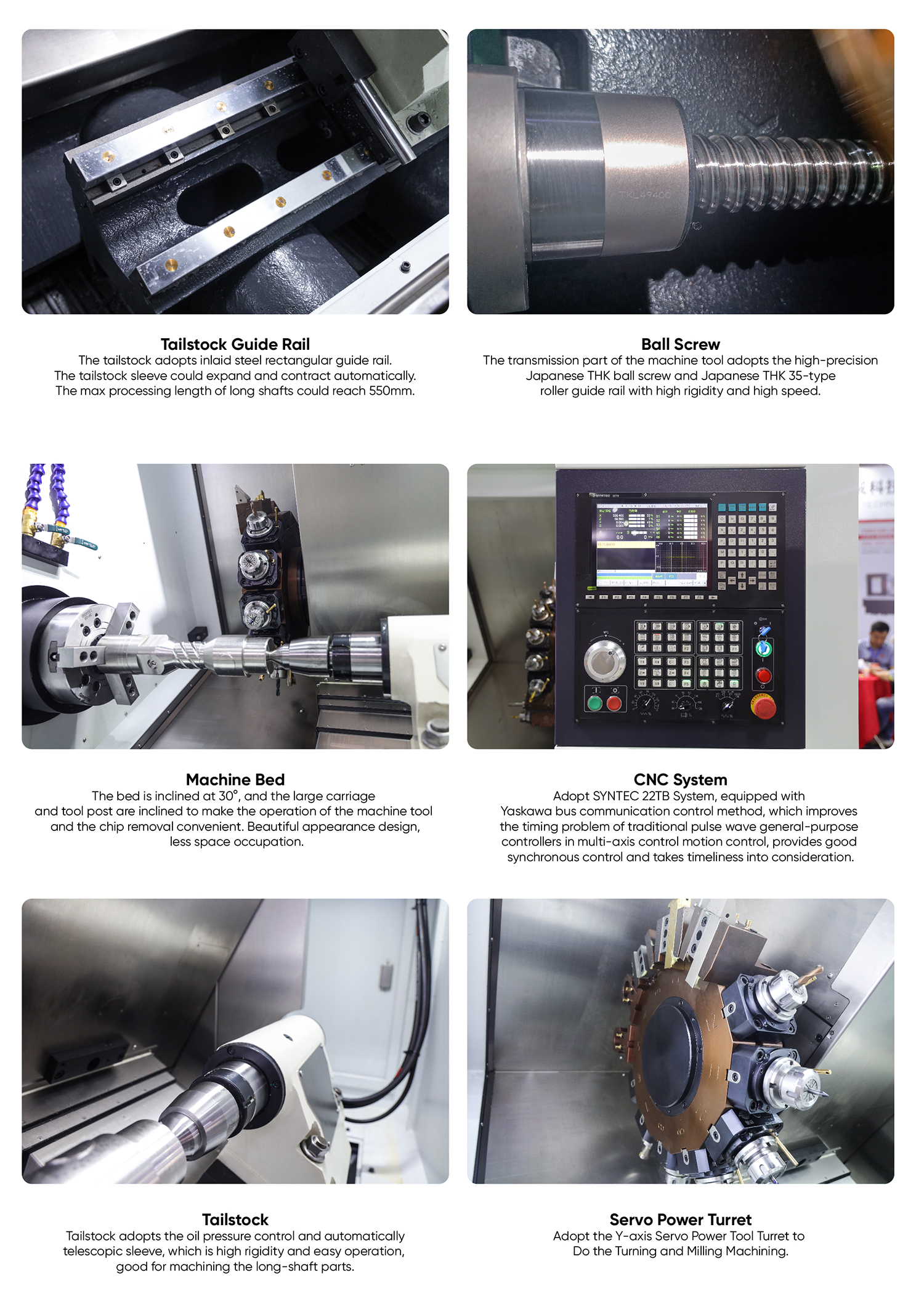

The Leichman CK108MY CNC Turning and Milling Lathe integrates precision components for efficient machining. Its 30° slant bed design facilitates chip removal and operation accessibility while conserving floor space.

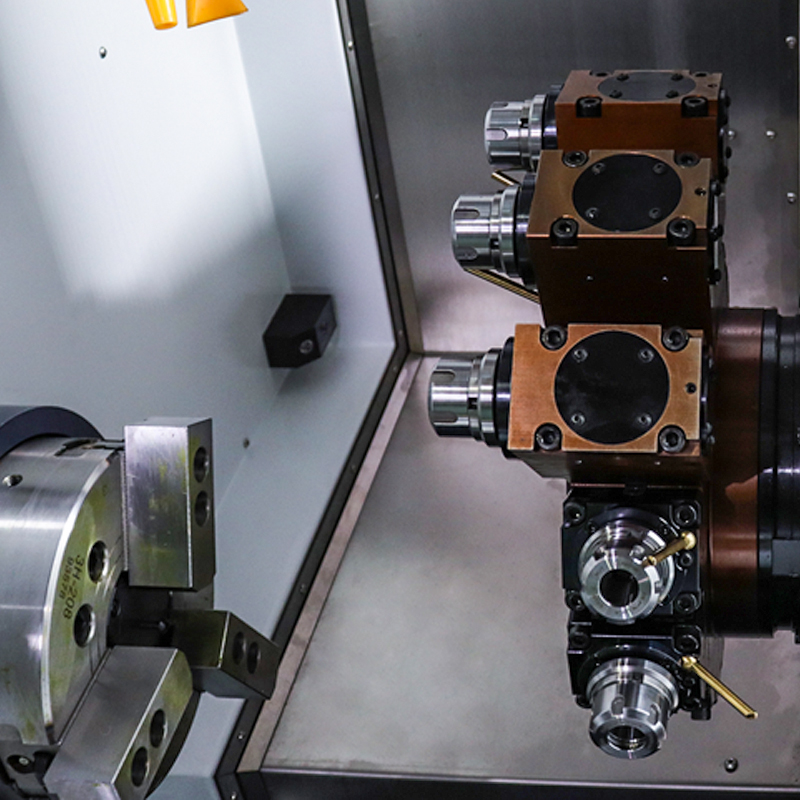

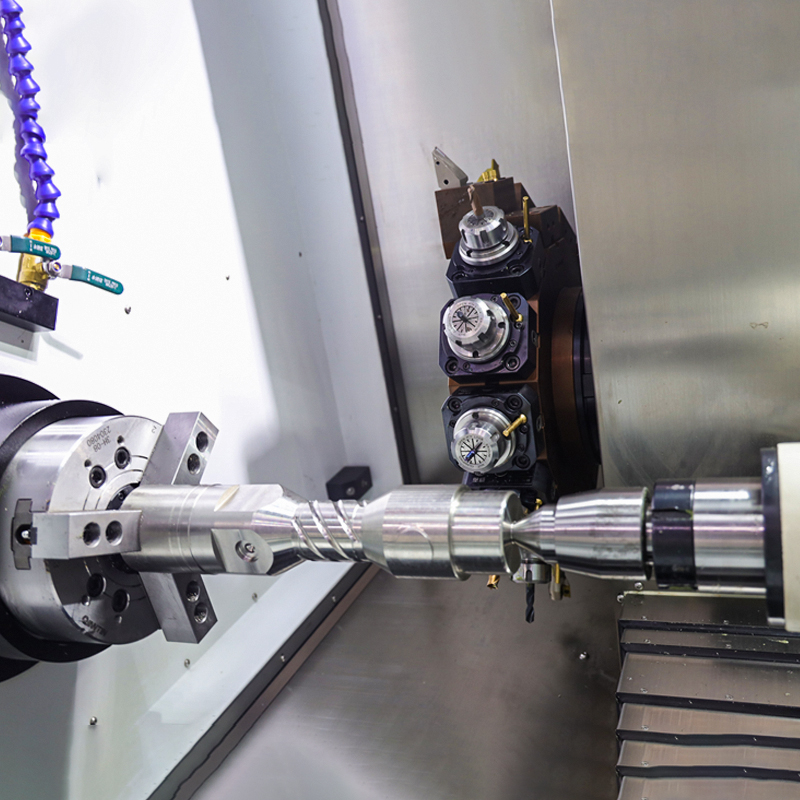

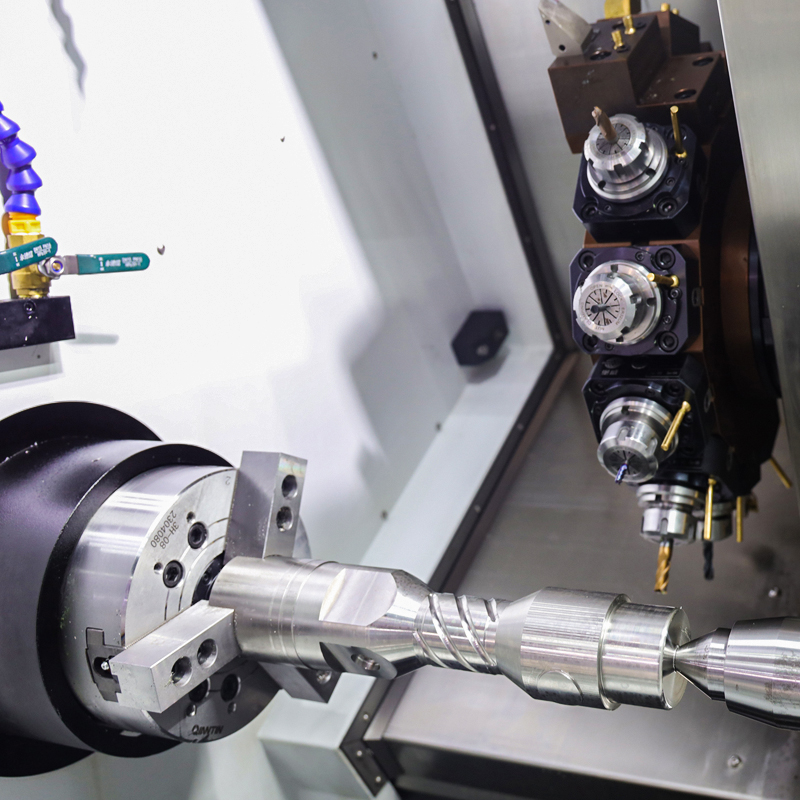

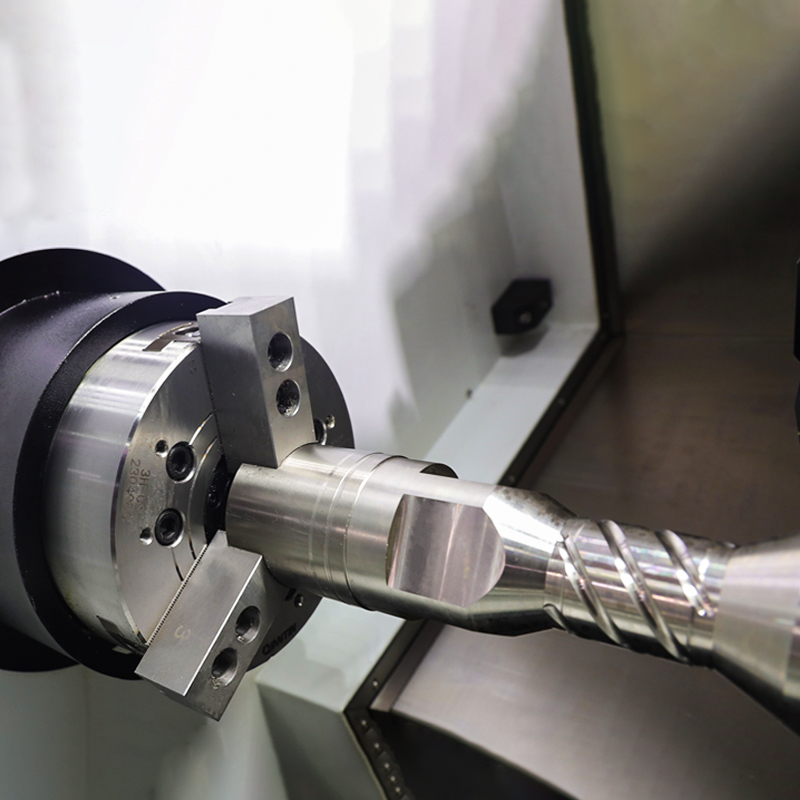

The transmission system uses Japanese THK ball screws and 35-type roller guideways for high rigidity and speed. The Y-axis servo power turret enables combined turning and milling operations in a single setup.

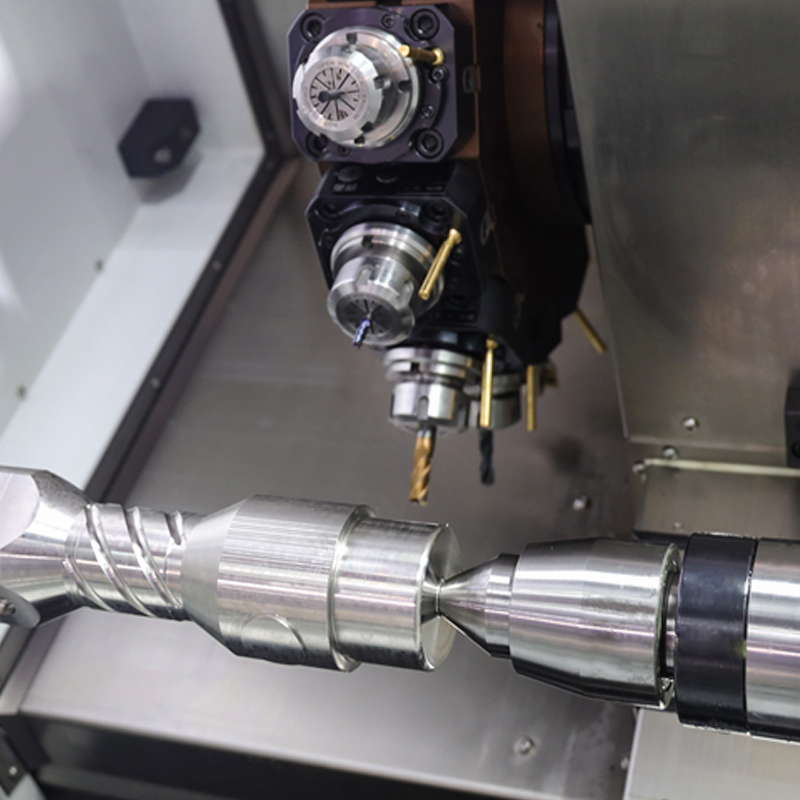

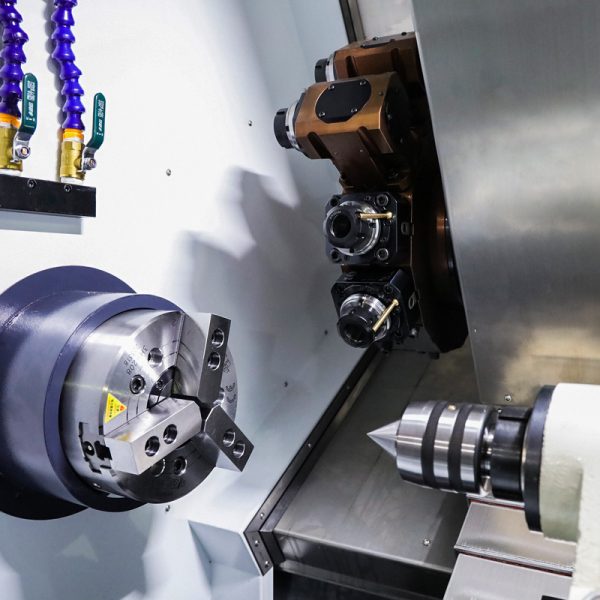

Tailstock functionality includes:

Inlaid steel rectangular guide rails

Automatic telescoping sleeve

Hydraulic control system

Supports long shaft machining up to 550mm

CNC control employs the SYNTEC 22TB system with Yaskawa bus communication. This design improves multi-axis synchronization compared to traditional pulse wave controllers.

The machine’s structural design prioritizes operational convenience and efficient chip evacuation. No additional specifications beyond documented features are claimed.
