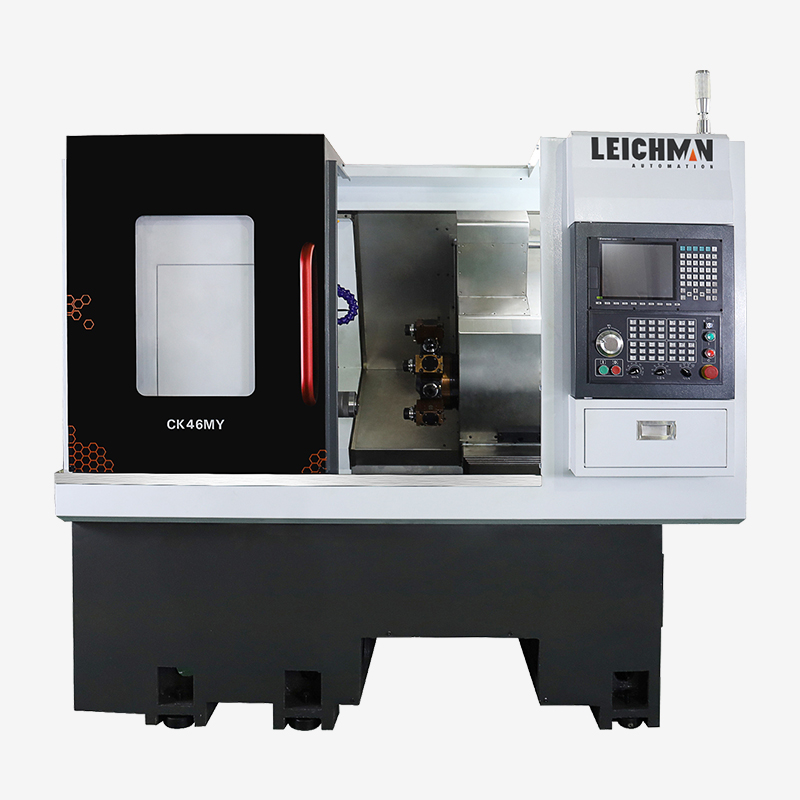

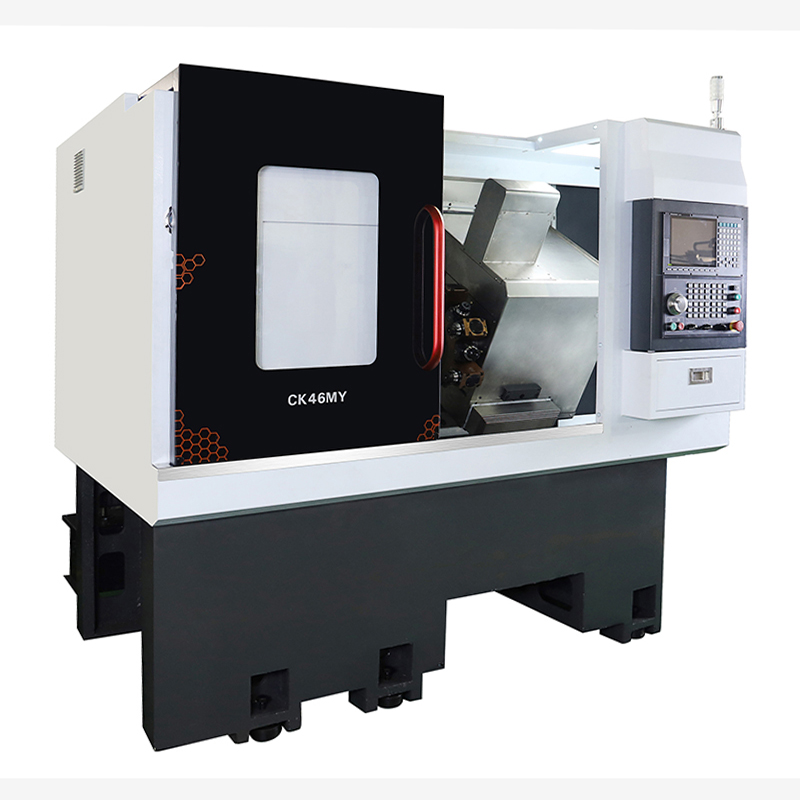

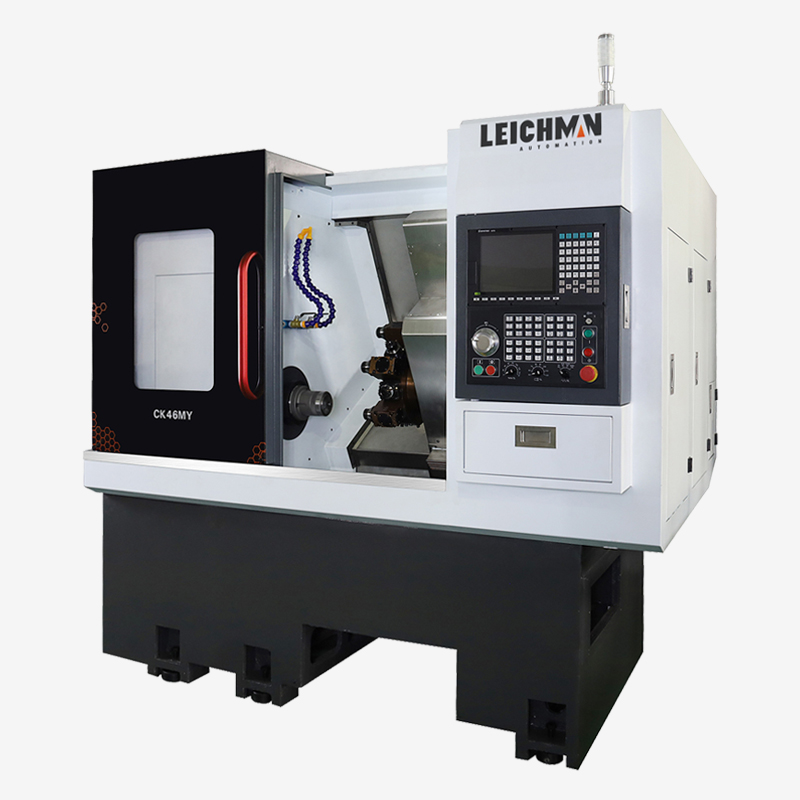

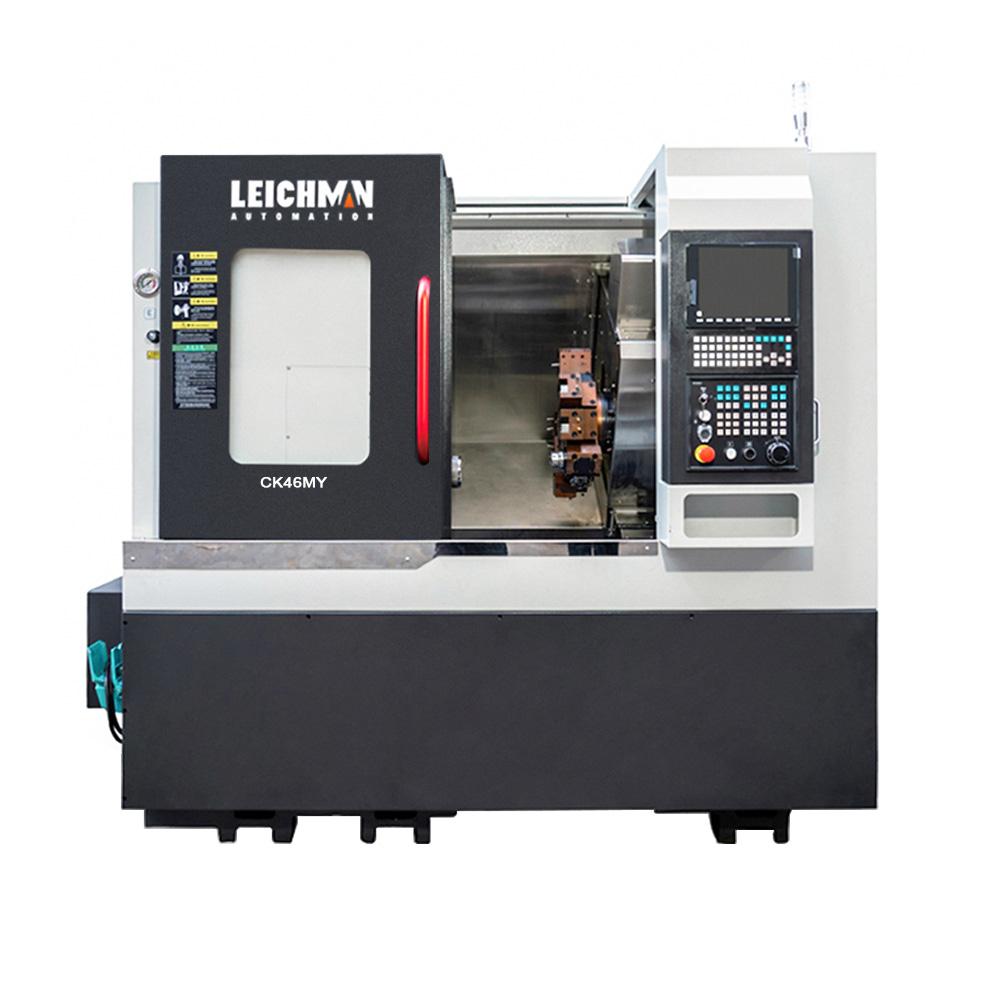

CK46MY CNC lathe provides slant bed construction with servo turret for turning-milling operations Compact footprint suitable for small to medium workpieces Rigid cast iron build ensures machining stability
| Specifications | Unit | CKD46 | CKD52 | |
| Capacity | Max. swing over bed | mm | 500 | 500 |
| Max. machining diameter | mm | 400 | 400 | |
| Max. machining length | mm | 380 | 380 | |
| Travel | X axis travel | mm | 250 | 250 |
| Z axis travel | mm | 400 | 400 | |
| Accuracy | Spindle runout | mm | 0.003 | 0.003 |
| X/Z axis positioning accuracy | mm | – | X: 0.004,Z: 0.006 | |
| X/Z axis repositioning accuracy | mm | 0.002 | X: 0.002,Z: 0.004 | |
| Spindle | Spindle speed | rpm | 4000 | 4000 |
| Chuck diameter | inch | 6’’ | 8’’ | |
| Spindle nose | – | A2-5 | A2-6 | |
| Spindle bore | mm | 56 | 66 | |
| Max bar diameter | mm | 45 | 52 | |

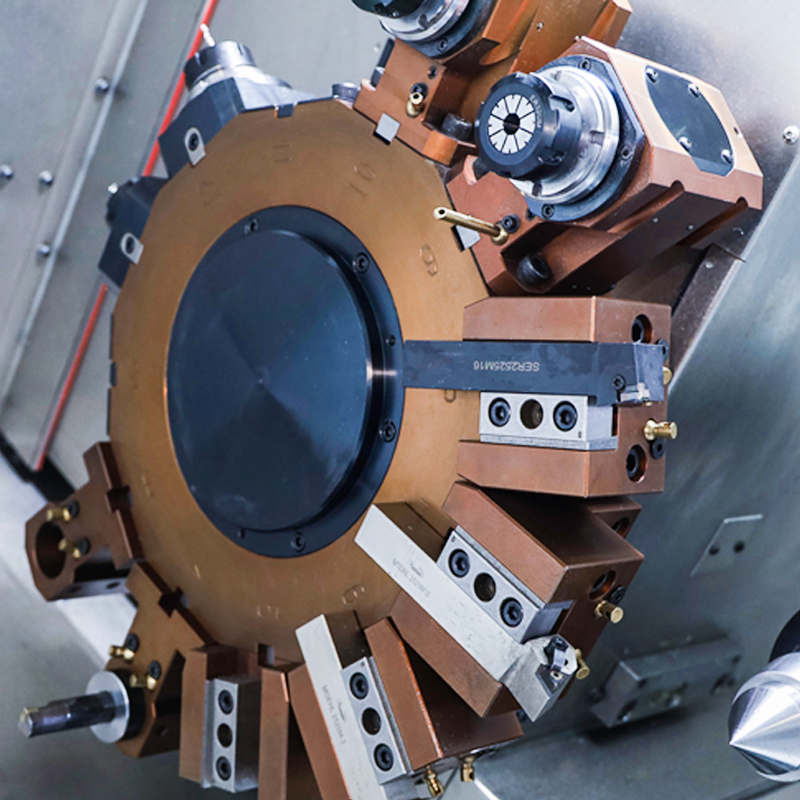

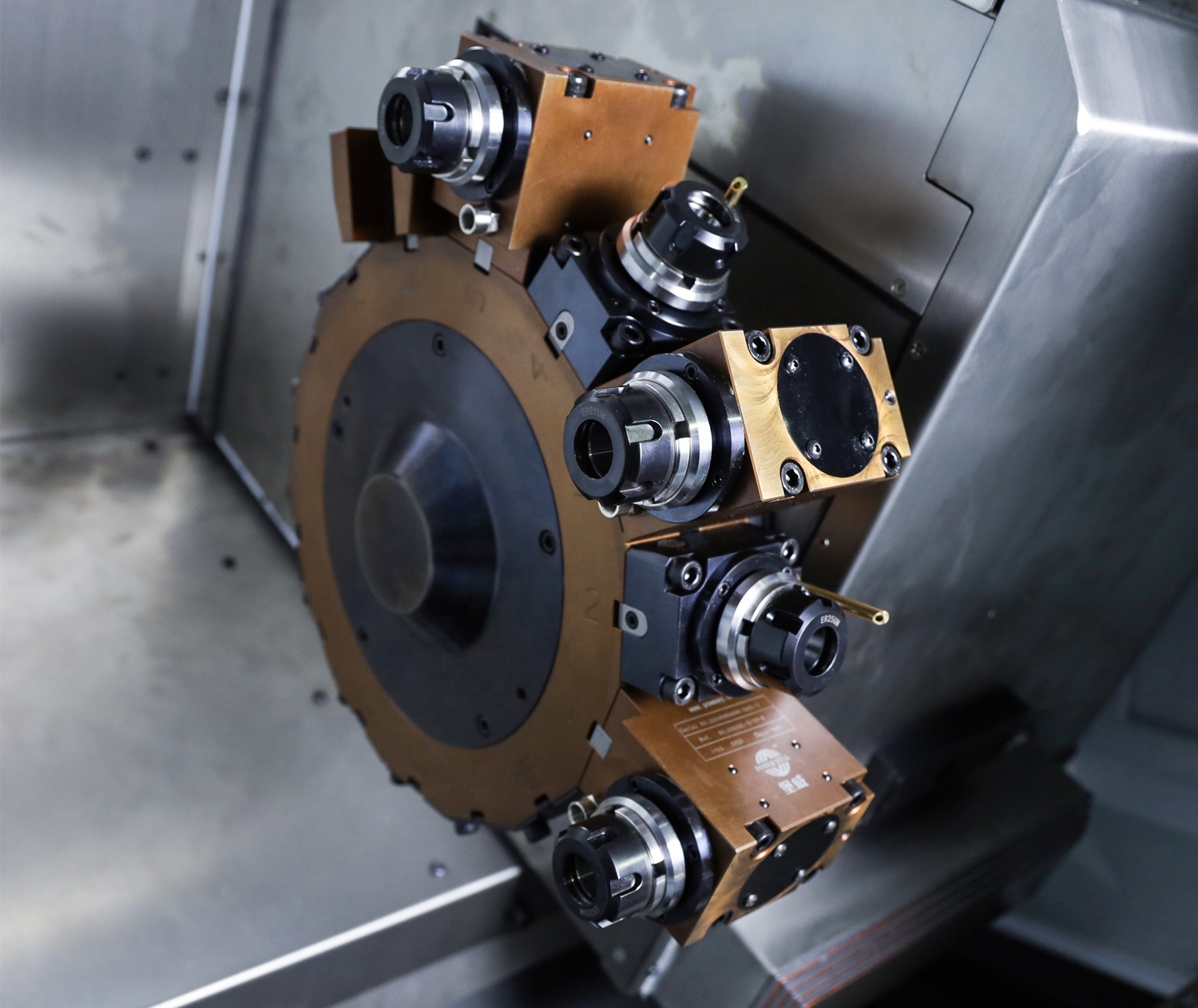

| Turret | Type | – | 100 center height400 cutter head,12-position servo turret | 100 center height400 cutter head,12-position servo turret |
| Outer Shank diameter | mm | 25 | 25 | |
| Inner shank diameter | mm | 40 | 40 | |
| Rapid Speed | X axis rapid speed | m/min | 30 | 30 |
| Z axis rapid speed | m/min | 30 | 30 | |
| Motor Power | Spindle | kW | 7.5 | 11 |
| X axis servo motor | kW | 1.8 | 1.8 | |
| Z axis servo motor | kW | 1.8 | 1.8 | |
| Others | Machine size (L×W×H) | mm | 2250×1700×1800 | 2250×1700×1800 |
| Net weight | kg | 3000 | 3200 | |
| Remark | Tailstock is optional. | |||
Submit your machining requirements for a custom solution proposal within 24 hours.
