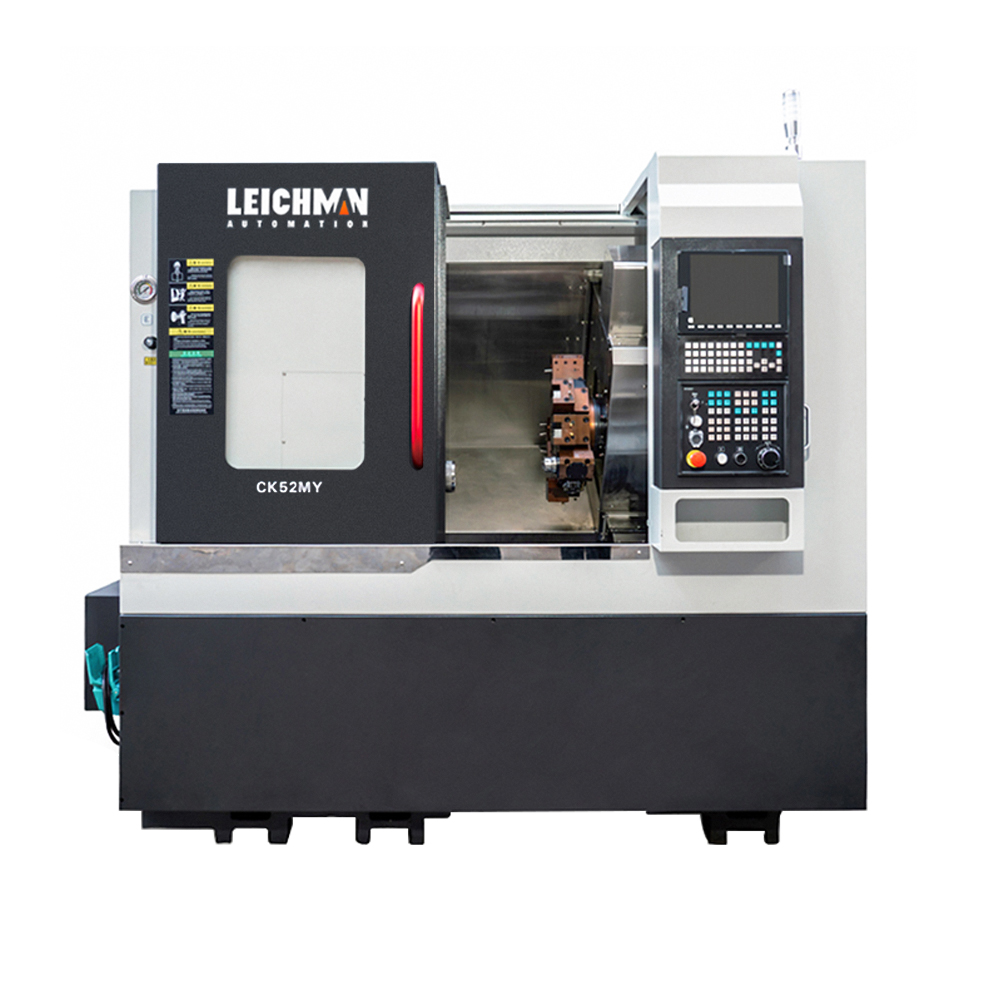

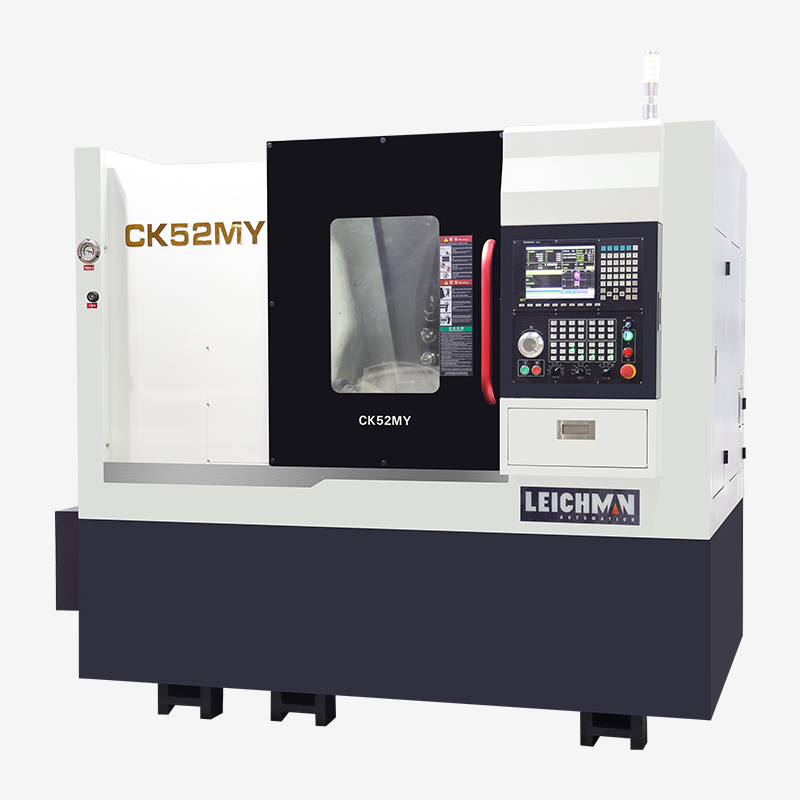

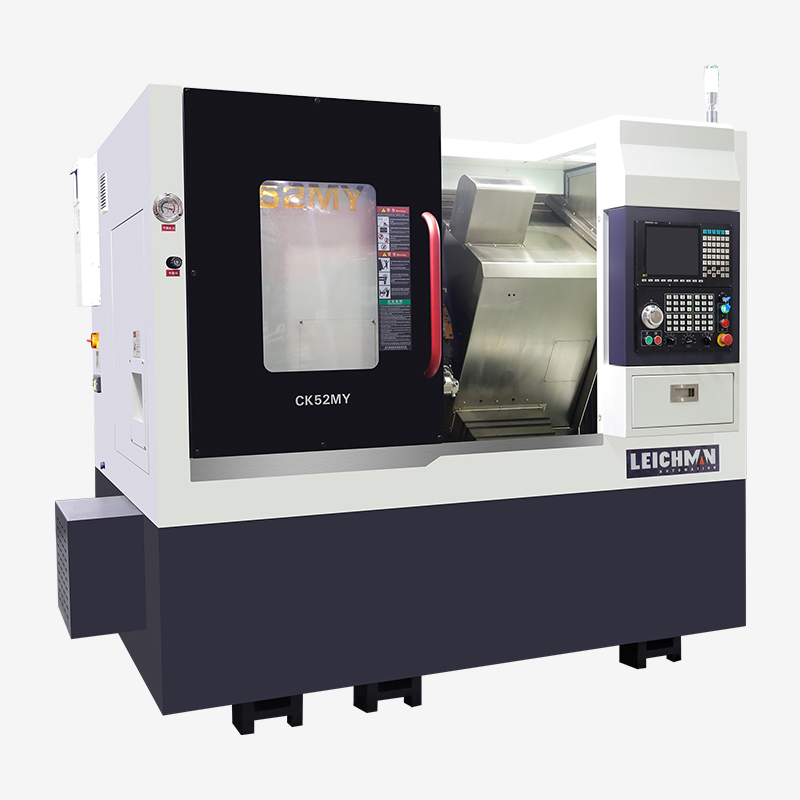

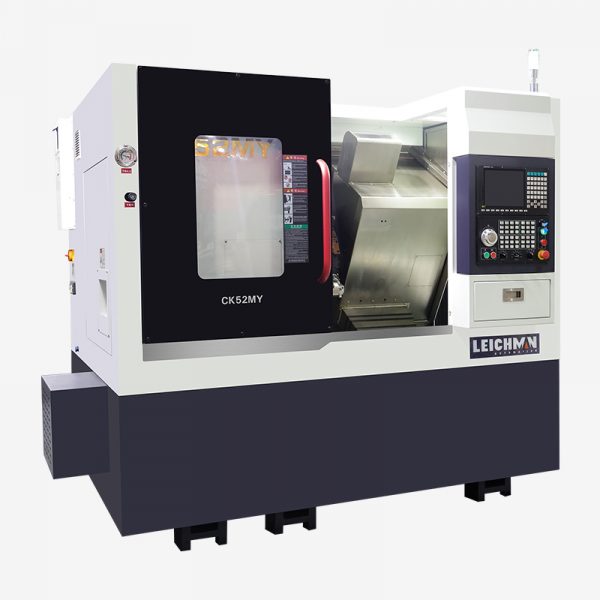

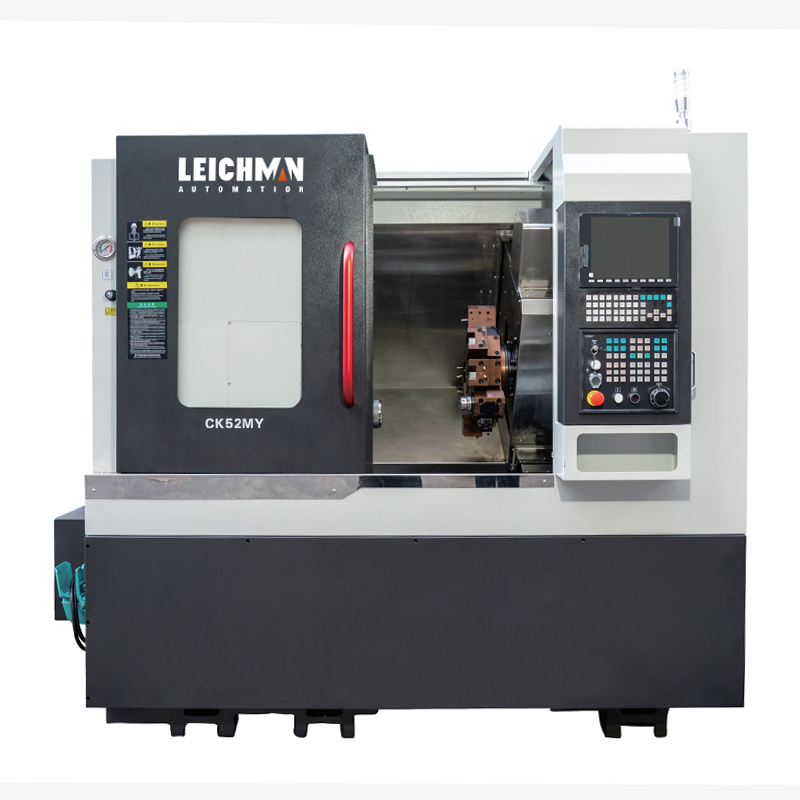

Leichman CK-52MY CNC Turning and Milling Turret Lathe 4000rpm Spindle 7.5kW Servo Motor

Specifications		Unit	CK46MY	CK52MY
CAPACITY	Max swing over bed	mm	450	450
	Max. machining diameter	mm	380	380
	Max. machining length	mm	350	350
TRAVEL	X axis travel	mm	250	250
	Y axis travel	mm	±50	±50
	Z axis travel	mm	400	400
PRECISION	Spindle runout	mm	0.003	0.003
	Spindle indexing positioning accuracy	–	±0.001°	±0.001°
	X/Y/Z axis reposition precision	mm	0.002	0.002
SPINDLE	Spindle speed	rpm	5000	4000

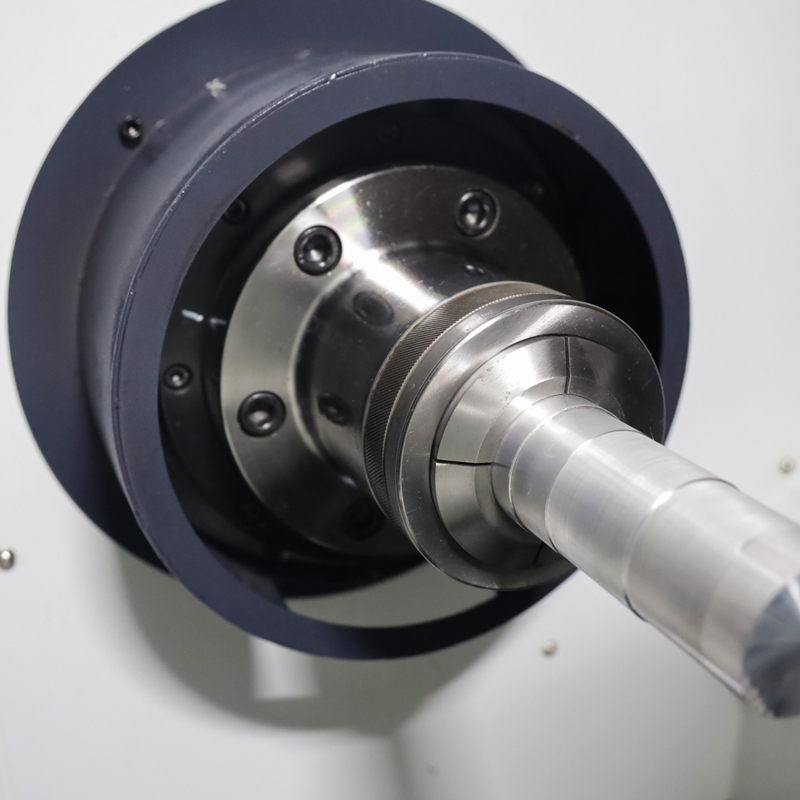

	Collet sleeve	–	46 type Collet sleeve+collet	52 type collet sleeve+collet
	Spindle nose	–	A2-5	A2-6
	Chuck diameter	Inch	6’’	8’’
	Spindle bore	mm	56	63
	Max bar diameter	mm	45	52

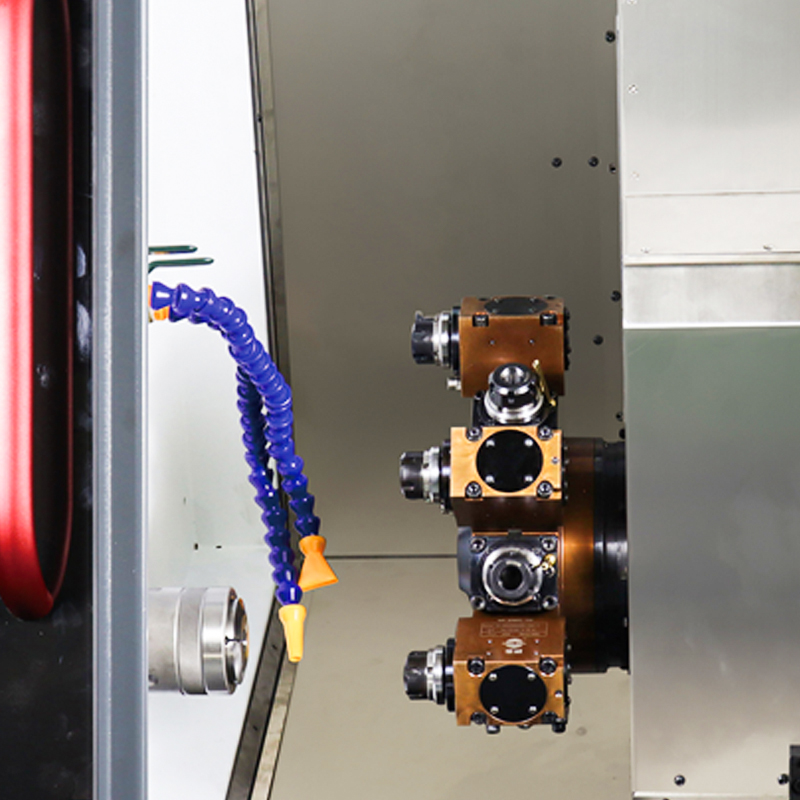

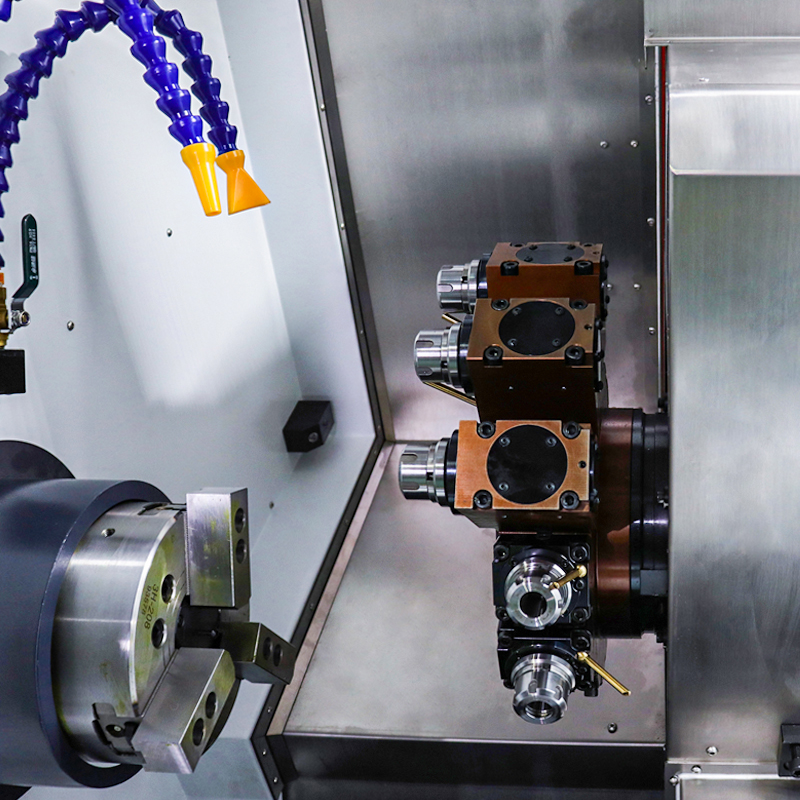

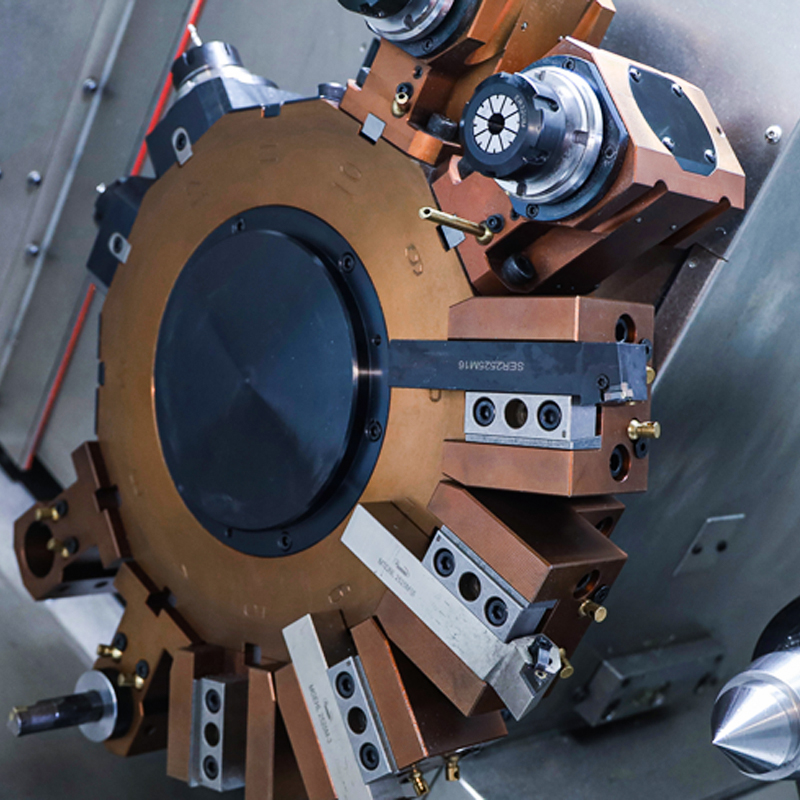

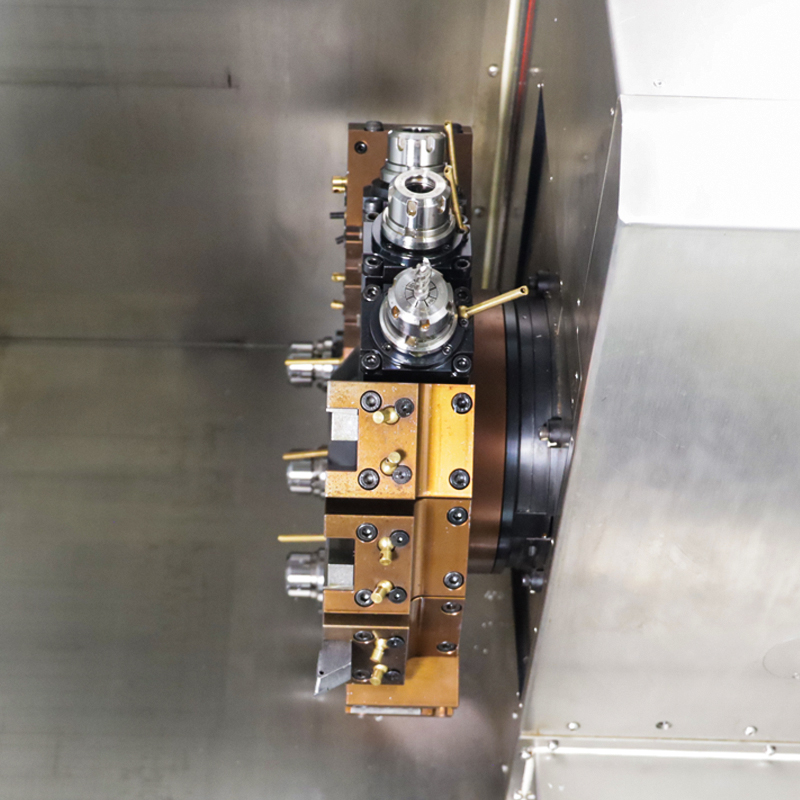

	Type of Tool Turret	–	BT55 12-positionpower turret with Y-axis	BT55 12-positionpower turret with Y-axis
	Outer Shank dia.	–	BT55 25	BT55 25
	Inner shank dia.	–	BT55 40	BT55 40
RAPID SPEED	X axis rapid speed	m/min	30	30
	Y axis rapid speed	m/min	24	24
	Z axis rapid speed	m/min	30	30
MOTOR POWER	Spindle	kW	7.5	11
	X axis servo motor	kW	2.4	2.4
	Z axis servo motor	kW	2.4	2.4
	Y axis servo motor	kW	1.7	1.7
	Milling motor	kW	3.1	3.1
DIMENSION & WEIGHT	Machine size (LxWxH)	mm	2400x1700x1920	2400x1700x1920
DIMENSION & WEIGHT	Net weight	kg	3200	3200
REMARK	Standard milling function (without Y-axis) is available as an option for turn-mill compound machining

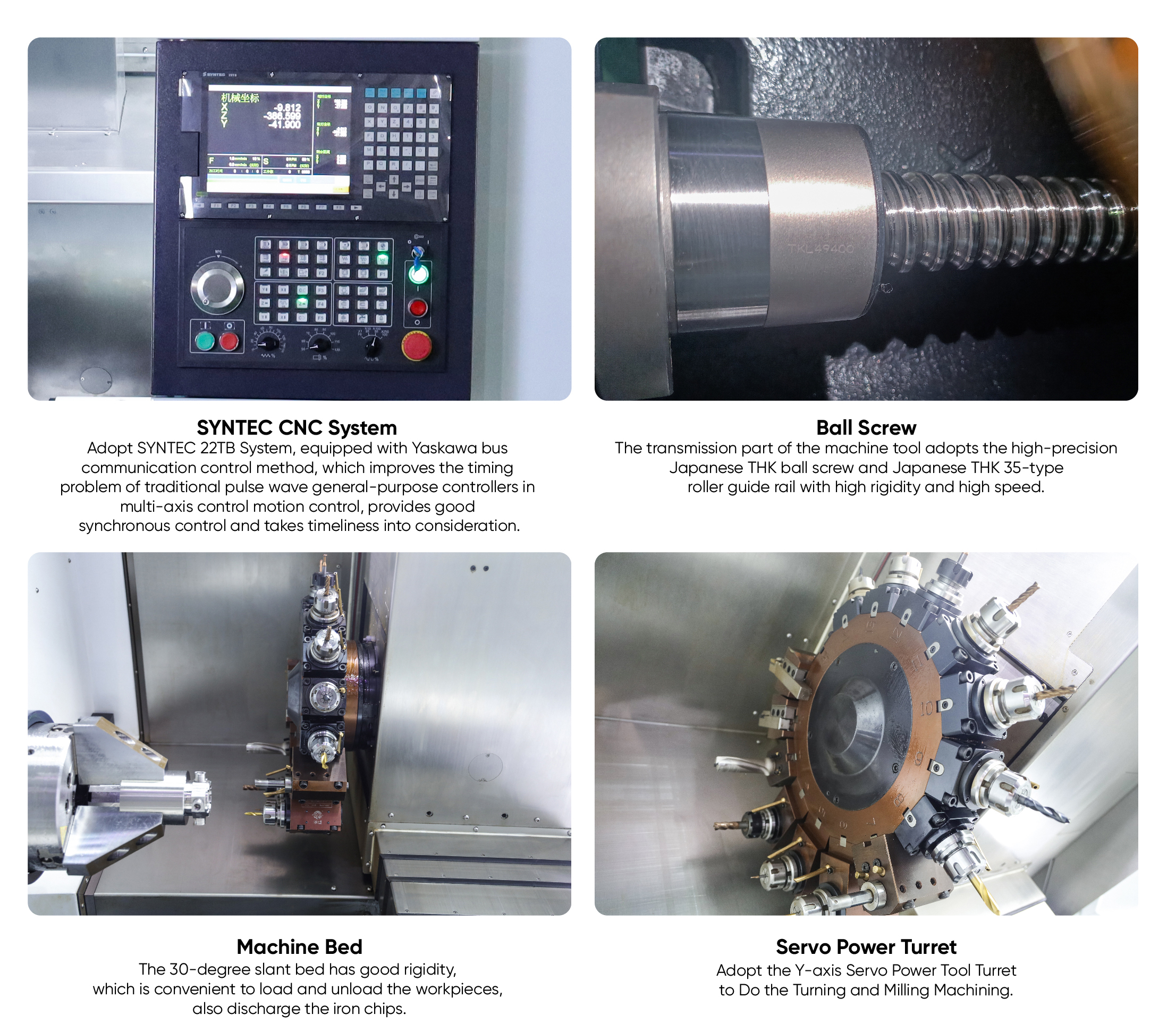

- Structure & Rigidity:
  - Bed Construction: The base and bed are a one-piece cast iron structure, offering strong shock resistance and resistance to deformation.
  - Layout: The bed is inclined at a 30° angle, facilitating easier operation and efficient chip removal.
  - Design: Features a space-saving and aesthetically pleasing design.

- High-Precision Core Components:
  - Spindle: A high-precision Taiwan-made spindle equipped with Japan NSKprecision bearings. It can directly mount hydraulic chucks (e.g., three-jaw) or other elastic chucks.
  - Drive System: Utilizes high-precision Japanese THK ball screws and high-speed linear guide rails (model THK 35).
  - Axes (X & Z): Both axes use high-rigidity linear rails with an optimized span, resulting in low resistance, high rigidity, and high precision.
  - Speed: Rapid traverse speeds up to 24 m/min, improving overall work efficiency.

- Machining Capability & Options:
  - Standard Work: Suitable for machining short shafts and disc-shaped products.
  - Optional Equipment: Can be equipped with a bar feeder for processing long, slender bar stock.

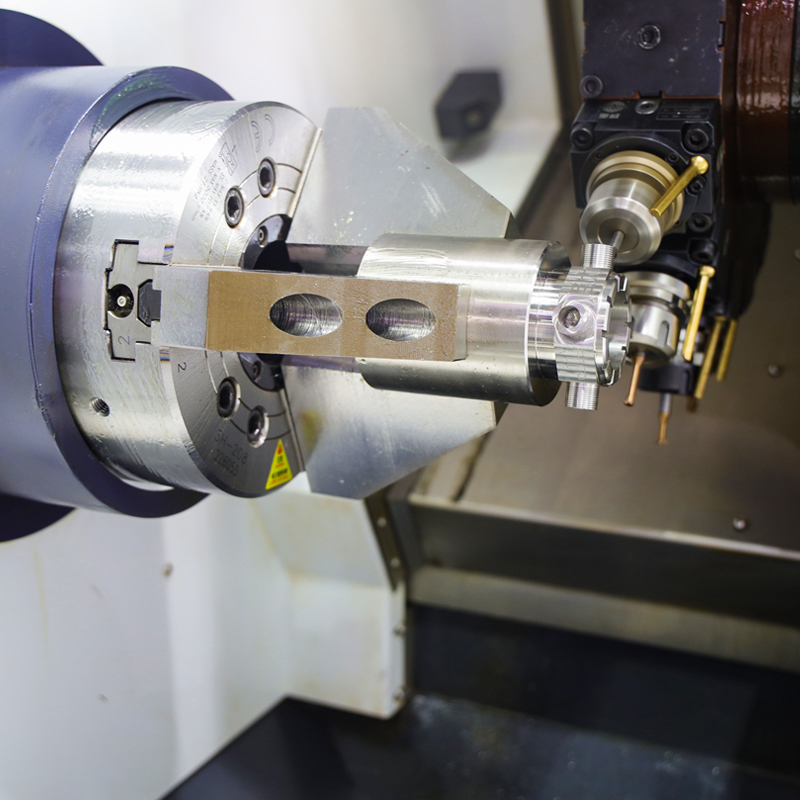

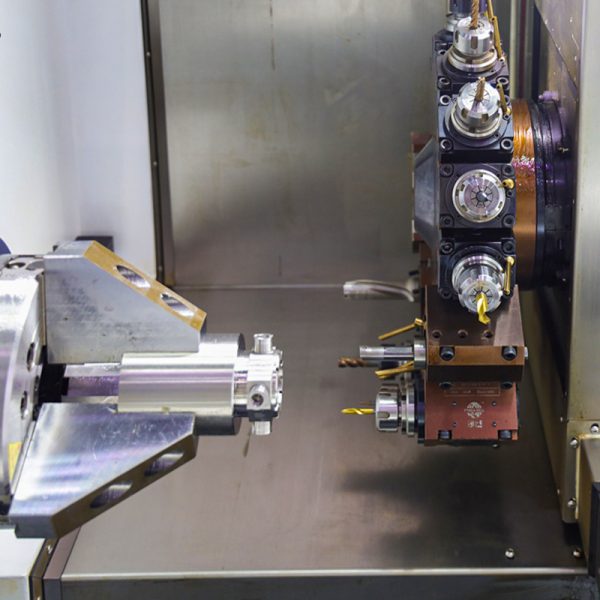

  - Advanced Function (Y-axis): The optional Y-axis function on the turret enables compound machining, allowing for the processing of complex shapes.
