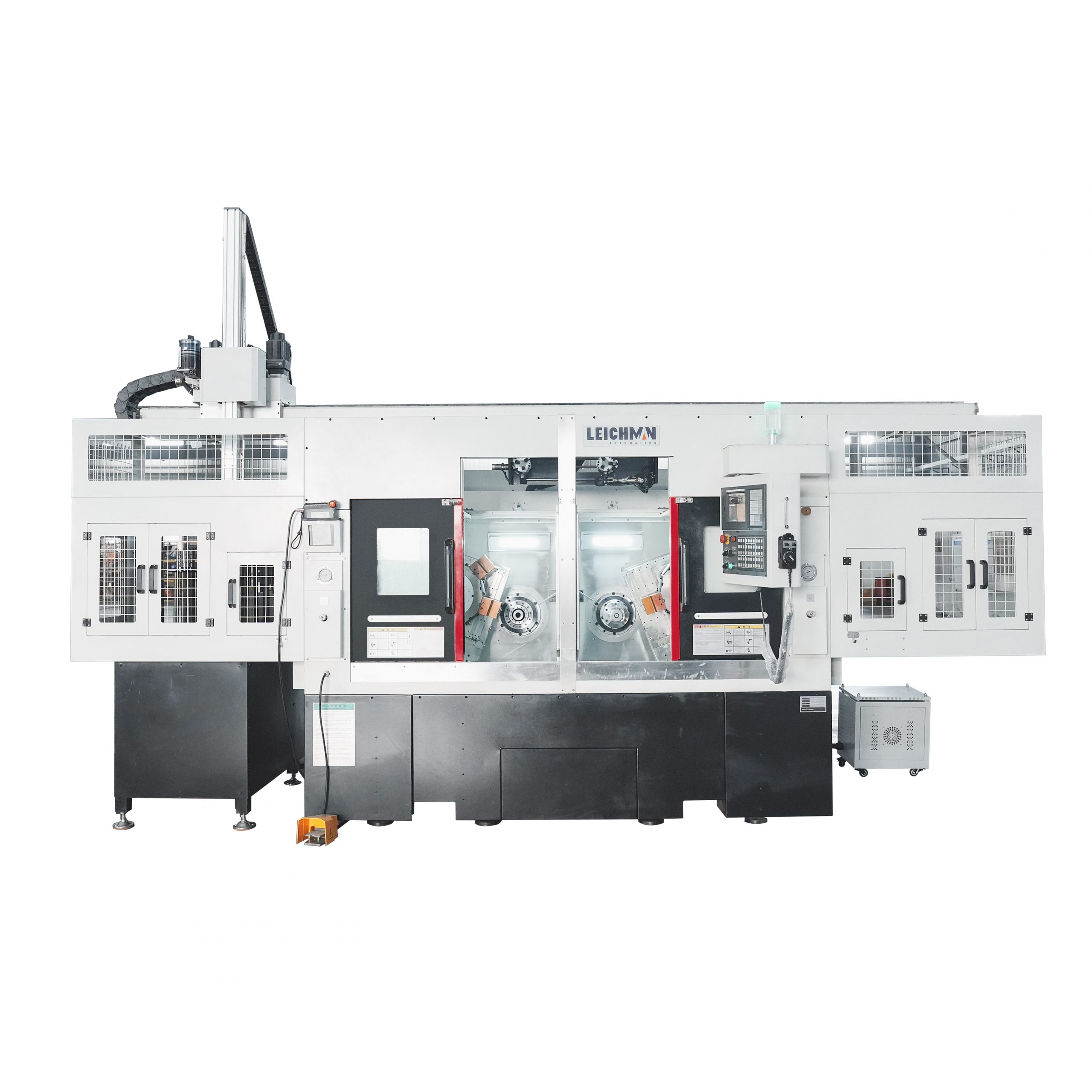

The DSP Series Parallel Dual-Spindle CNC Turning Center is a compact automated solution combining dual spindles, dual turrets, and an integrated gantry loader. It seamlessly handles auto-loading, front-and-back sequence turning, and live tooling milling to deliver high Cpk precision in a single setup.
| Item | Unit | Parameter | ||
|---|---|---|---|---|
| DS10P | DS15P | DS20P | ||
| Max Swing | mm | Φ180 | Φ210 | Φ320 |
| Max Machining Diameter | mm | Φ100 | Φ180 | Φ280 |
| Max Machining Length | mm | 80 | 100 | 110 |
| The X/Z axis travel | mm | 135/200 | 160/200 | 160/220 |
| X/Z axis Fast Feed | m/min | 24/24 | 24/24 | 30/30 |
| Max Spindle RPM | rpm | 5000 | 5000 | 4000 |
| Main Motor Power | kw | 5.5 | 7.5 | 11 |
| Diameter of Spindle Through Hole | mm | Φ45 | Φ56 | Φ63 |
| The Center Height of Main Spindle | mm | 950 | 950 | 1050 |
| Spindle Nose Taper | – | JIS A2-4 | JIS A2-5 | JIS A2-6 |
| Form | – | Servo Turret / Power Turret | Servo Turret / Power Turret | Servo Turret / Power Turret |
| Turret Position Change Time | Sec | – | – | 0.2 |
| Outside Diameter Cutter | mm | 20X20 | 25X25 | 25X25 |
| Boring Bars | mm | Φ32 | Φ40 | Φ40 |
| X/Z Axis Servo Motor Power | kw | 1.2 | 1.8 | 1.8 |
| X/Z Axis Servo Motor Speed | rpm | 3000 | 3000 | 3000 |
| Cooling Tank Capacity | L | 160 | 180 | 200 |
| Dimensions (LengthxWidthxHeight) | mm | 2420X1600X1750 | 2650X1700X1850 | 2900X2150X1850 |
Modular & Compact Design: Optimizes floor space, significantly lowers tooling/adjustment changeover time, and enhances overall shop-floor ergonomics and productivity.
Flexible PMC Integration: Supports automated production line setups and can easily configure into PMC flexible processing units based on processing needs.

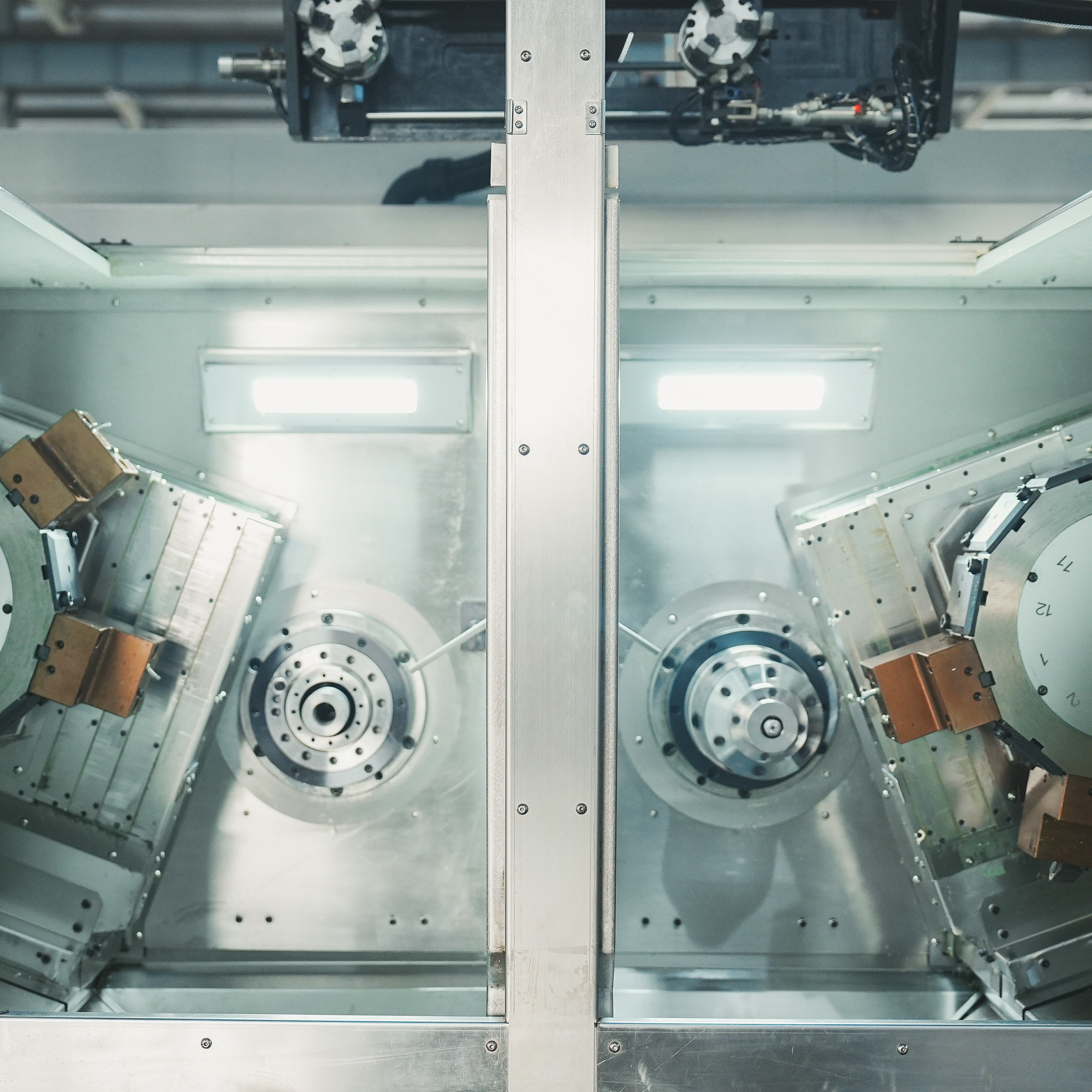

Parallel Dual-Spindle Architecture: Reduces turret interference while improving operating comfort and ergonomics.
Multifunctional Machining Capability: Equipped with live tooling (milling option) and high-rigidity X/Z-axes to integrate turning, boring, drilling, reaming, and tapping into a single machine.

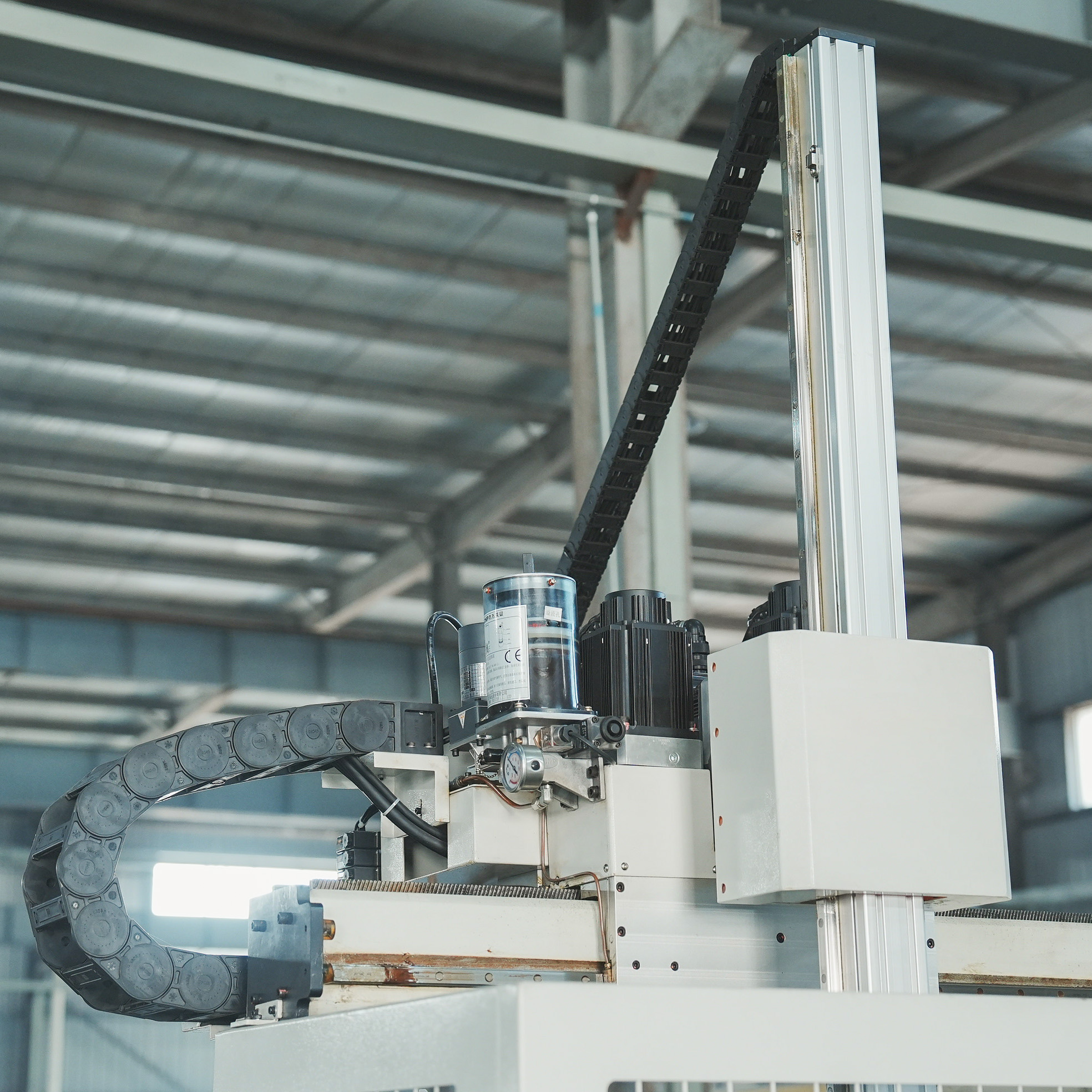

High-Speed Gantry Loader: Features an independent PLC and HMI interface control system, ensuring mechanical and control modularity for maximum reliability.
Automatic Flip Mechanism: Automatically flips workpieces 180 degrees to complete secondary front/back sequence processing.
Customizable Stocker Options: Flexible automation support including Rotary Type, Stacker Type, or Conveyor Line configurations.

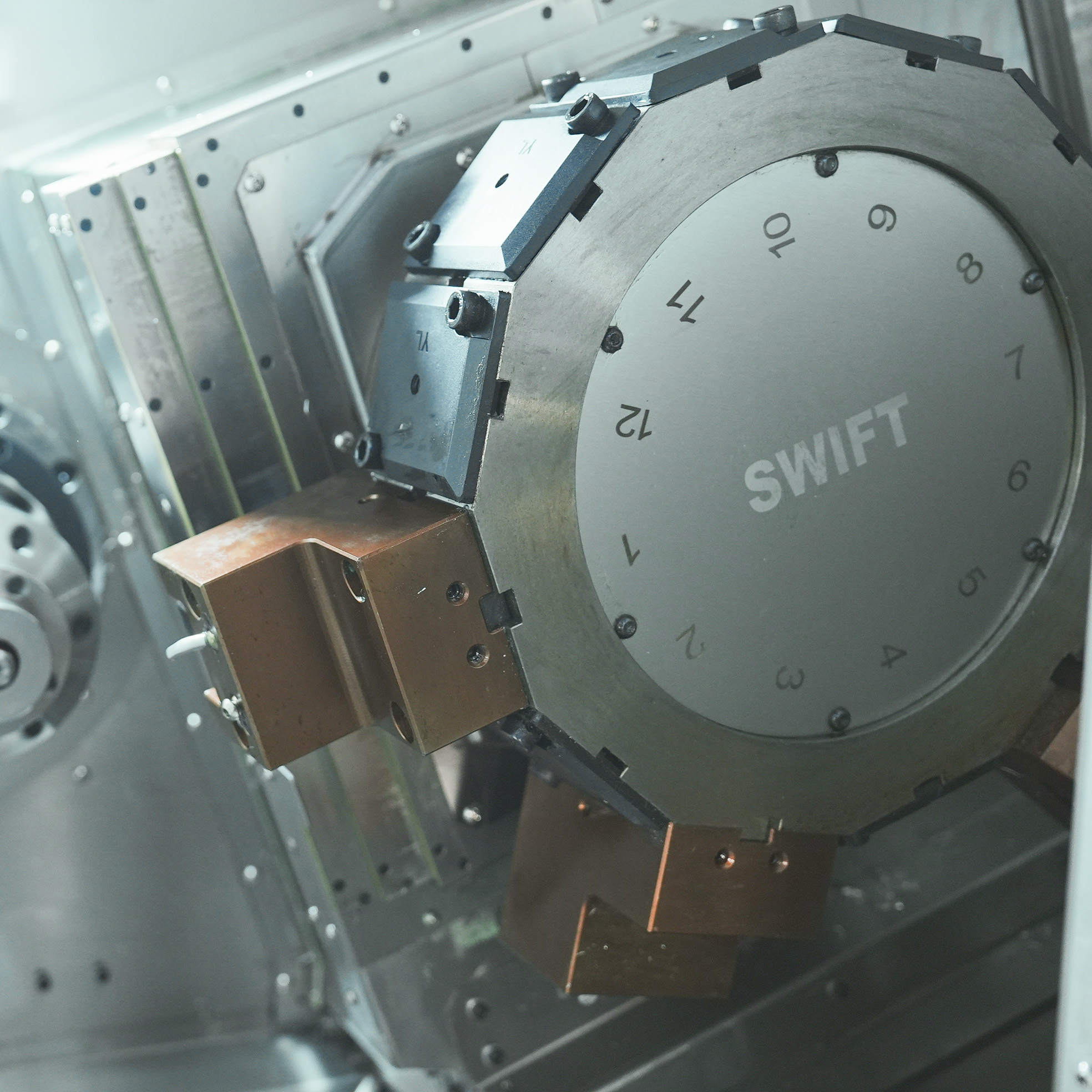

12-Position Power Turret: Enables seamless two-sequence automatic loading, turning, milling, drilling, reaming, tapping, and unloading operations.
High-Rigidity & Thermally Stable Spindle Unit: Designed with Finite Element Analysis (FEA) and main spindle heat-balance technology. Incorporates oil-cooling circulation and optimized structural ribbing to ensure low thermal deformation, uniform heat dissipation, high precision, and superior rigidity.
Submit your machining requirements for a custom solution proposal within 24 hours.
Modular & Compact Design: Optimizes floor space, significantly lowers tooling/adjustment changeover time, and enhances overall shop-floor ergonomics and productivity.
Flexible PMC Integration: Supports automated production line setups and can easily configure into PMC flexible processing units based on processing needs.
Parallel Dual-Spindle Architecture: Reduces turret interference while improving operating comfort and ergonomics.
Multifunctional Machining Capability: Equipped with live tooling (milling option) and high-rigidity X/Z-axes to integrate turning, boring, drilling, reaming, and tapping into a single machine.
High-Speed Gantry Loader: Features an independent PLC and HMI interface control system, ensuring mechanical and control modularity for maximum reliability.
Automatic Flip Mechanism: Automatically flips workpieces 180 degrees to complete secondary front/back sequence processing.
Customizable Stocker Options: Flexible automation support including Rotary Type, Stacker Type, or Conveyor Line configurations.
12-Position Power Turret: Enables seamless two-sequence automatic loading, turning, milling, drilling, reaming, tapping, and unloading operations.
High-Rigidity & Thermally Stable Spindle Unit: Designed with Finite Element Analysis (FEA) and main spindle heat-balance technology. Incorporates oil-cooling circulation and optimized structural ribbing to ensure low thermal deformation, uniform heat dissipation, high precision, and superior rigidity.
| Item | Parameter |
| Z-axis Material (Guide) | Standard Linear Rail |
| Z-axis Drive Mode | Pinion and Rack |
| Maximum Z-axis Moving Speed | 180m/min |
| Z-axis Drive Material | Servo Drive |
| Y-axis Material (Vertical Axis) | Aluminium |
| Y-axis Drive Mode | Pinion and Rack |
| Maximum Y-axis Moving Speed | 150(m/min) |
| Y-axis Drive Material | Servo Drive |
| X-axis Material | Aluminum/Structural Steel |
| X-axis Drive Mode | Pinion and Rack |
| Maximum X-axis Moving Speed | 60(m/min) |
| X-axis Drive Mode | Servo Drive |
| Position Accuracy | ±0.05(mm) |
| High speed servo window | Cylinder Drive |
