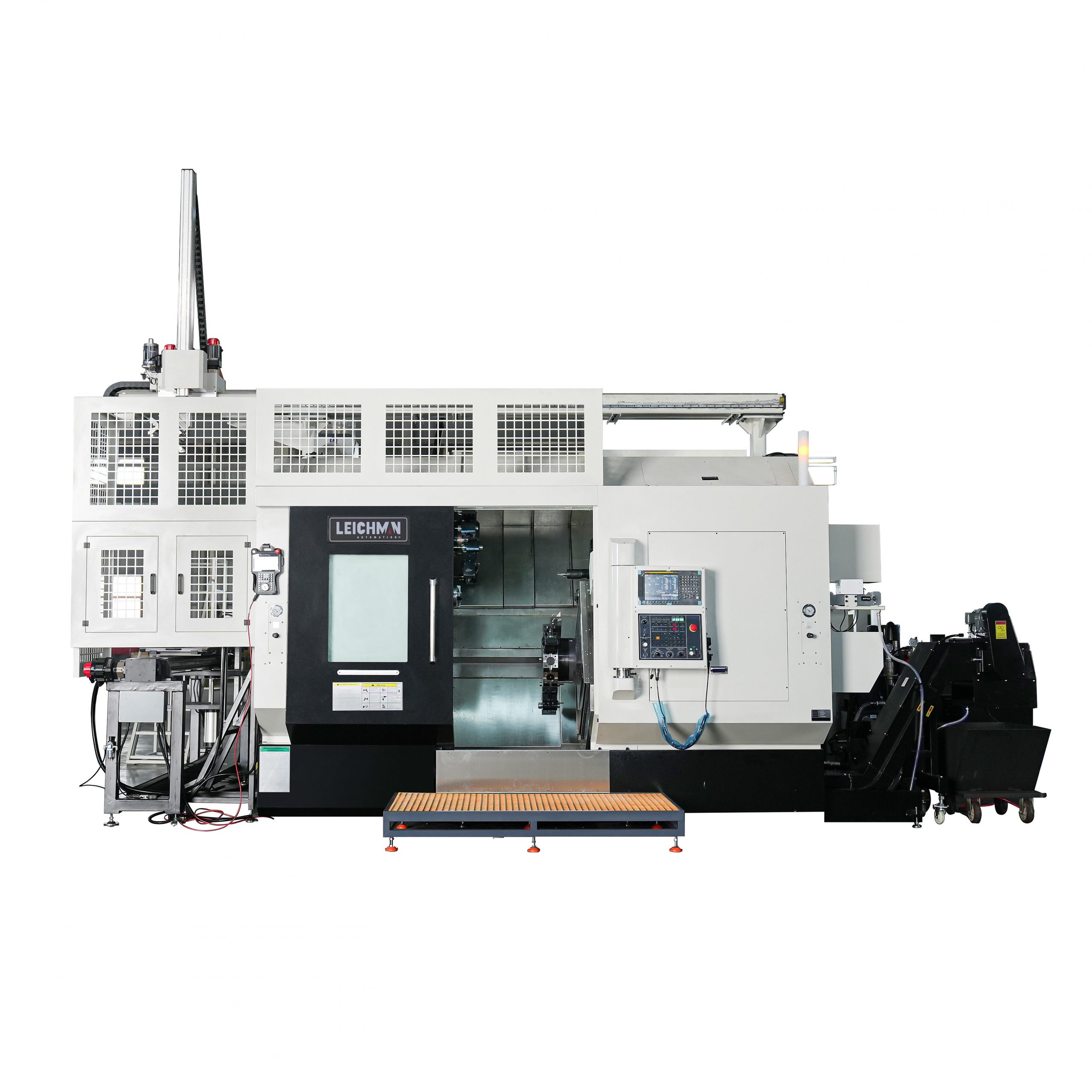

The DSDT series is a high-precision, dual-spindle dual-turret CNC turn-mill center designed for high-efficiency machining. Featuring opposed spindles and synchronized upper/lower turrets, it enables complete multi-tasking processing in a single clamping to minimize cycle times and maximize output.
| Item | Unit | DSDT100 | DSDT100L | DSDT150 | DSDT300 | |
|---|---|---|---|---|---|---|
| Range | Max Swing | mm | 300 | 300 | 480 | 580 |
| Max Turning Diameter | mm | 250 | 250 | 320 | 400 | |
| Max Turning Length | mm | 480 | 700 | 700 | 1000 | |
| Chuck (Left/Right) | inch | L:8″/6″ R:6″ | L:8″/6″ R:6″ | L:8″/10″ R:8″ | L:10″/12″ R:8″ | |
| Bar Capacity | mm | 42/51 | 42/51 | 51/80 | 80/90/118 | |
| Left Spindle | Max RPM | mm | 4000 | 4000 | 3000 | 3000/1500 |
| Max Power | KW | 7.5/11 | 7.5/11 | 15/18.5 | 22/30 | |
| Max Torque | N·m | 105 | 105 | 220 | 442 | |
| Spindle Nose | JIS | A2-5/A2-6 | A2-5/A2-6 | A2-6/A2-8 | A2-8/A2-11 | |
| Right Spindle | Max RPM | r/min | 5000 | 5000 | 4000 | 3000 |
| Max Power | KW | 7.5 | 7.5 | 11 | 15 | |
| Max Torque | N·m | 59.7 | 59.7 | 105 | 220 | |
| Spindle Nose | JIS | A2-5 | A2-5 | A2-6 | A2-8 | |
| Travel | X1 | mm | 175 | 175 | 195 | 230 |
| X2 | mm | 135 | 135 | 195 | 230 | |
| Z1 | mm | 500 | 700 | 700 | 1000 | |
| Z2 | mm | 500 | 700 | 700 | 1000 | |
| Fast Feed | X1 | mm | 30 | 30 | 24 | 20 |
| X2 | mm | 30 | 30 | 24 | 20 | |
| Z1 | mm | 30 | 30 | 24 | 20 | |
| Z2 | mm | 30 | 30 | 24 | 20 | |
| Turret | Tools (Up+Down) | pcs | 12+12 | 12+12 | 12+12 | 12+12 |
| Turret Rotation Time | s | 0.15 | 0.15 | 0.2 | 0.4 | |
| OD. Tool | mm | 25×25 | 25×25 | 25×25 | 32×32 | |
| Boring Bar | mm | 32 | 32 | 40 | 50 | |
| Dimensions | L x W x H | mm | 3200x2450x2150 | 3430x2450x2150 | 3600x2550x2200 | 4000x2650x2350 |
| Weight | kg | 6000 | 9000 | 11000 | 13000 | |

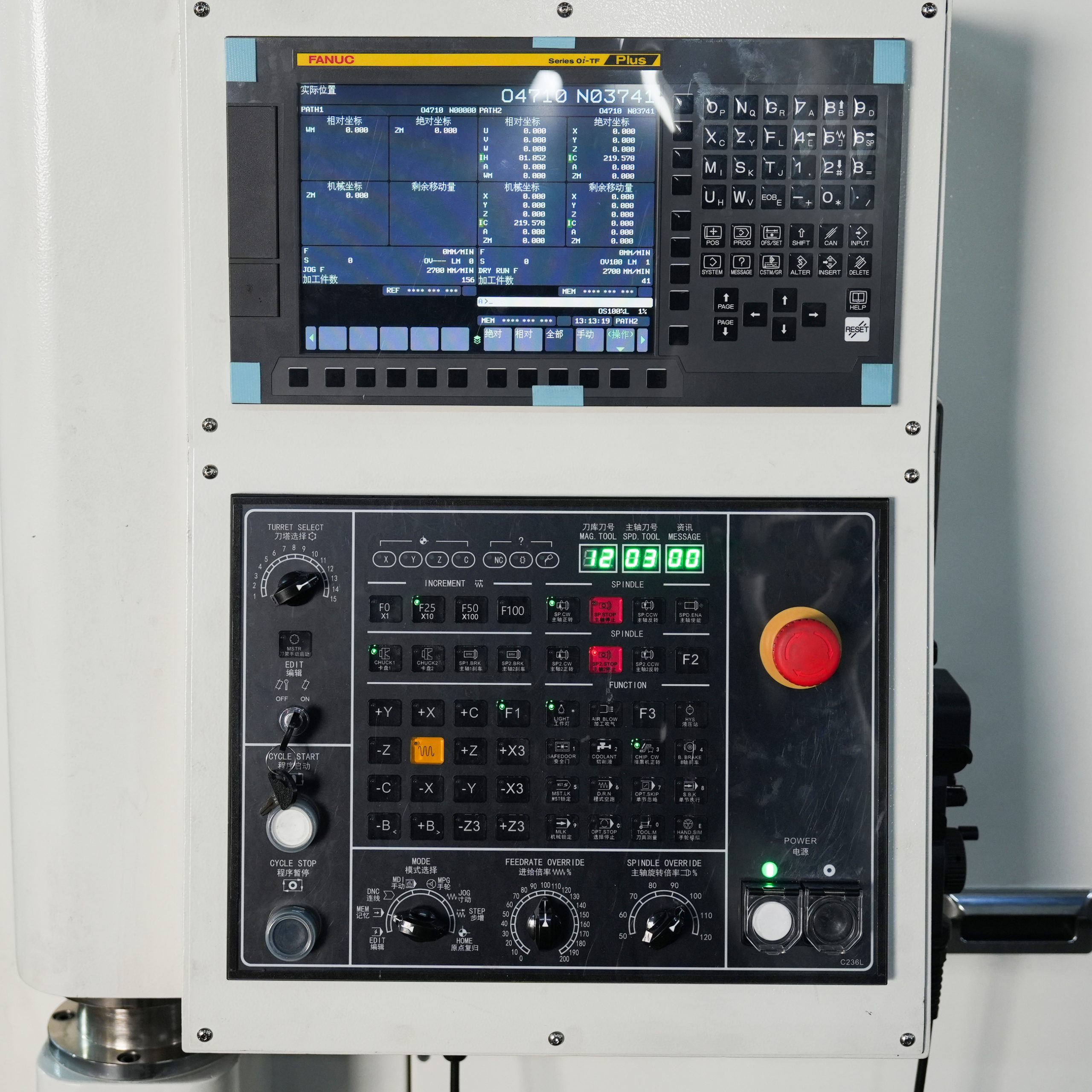

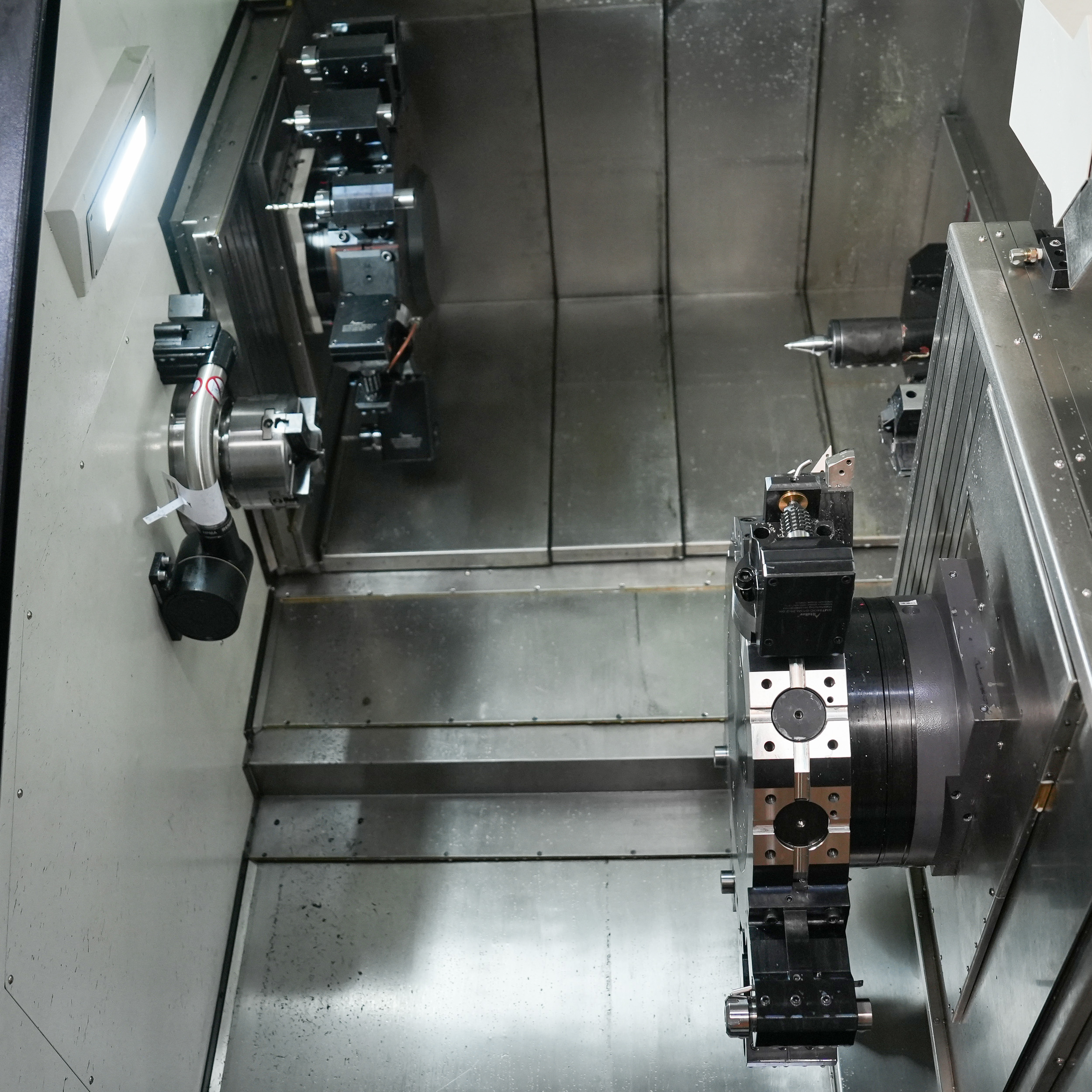

Dual-Spindle & Twin-Turret: Simultaneous multi-tasking with 12+12 tool capacity.

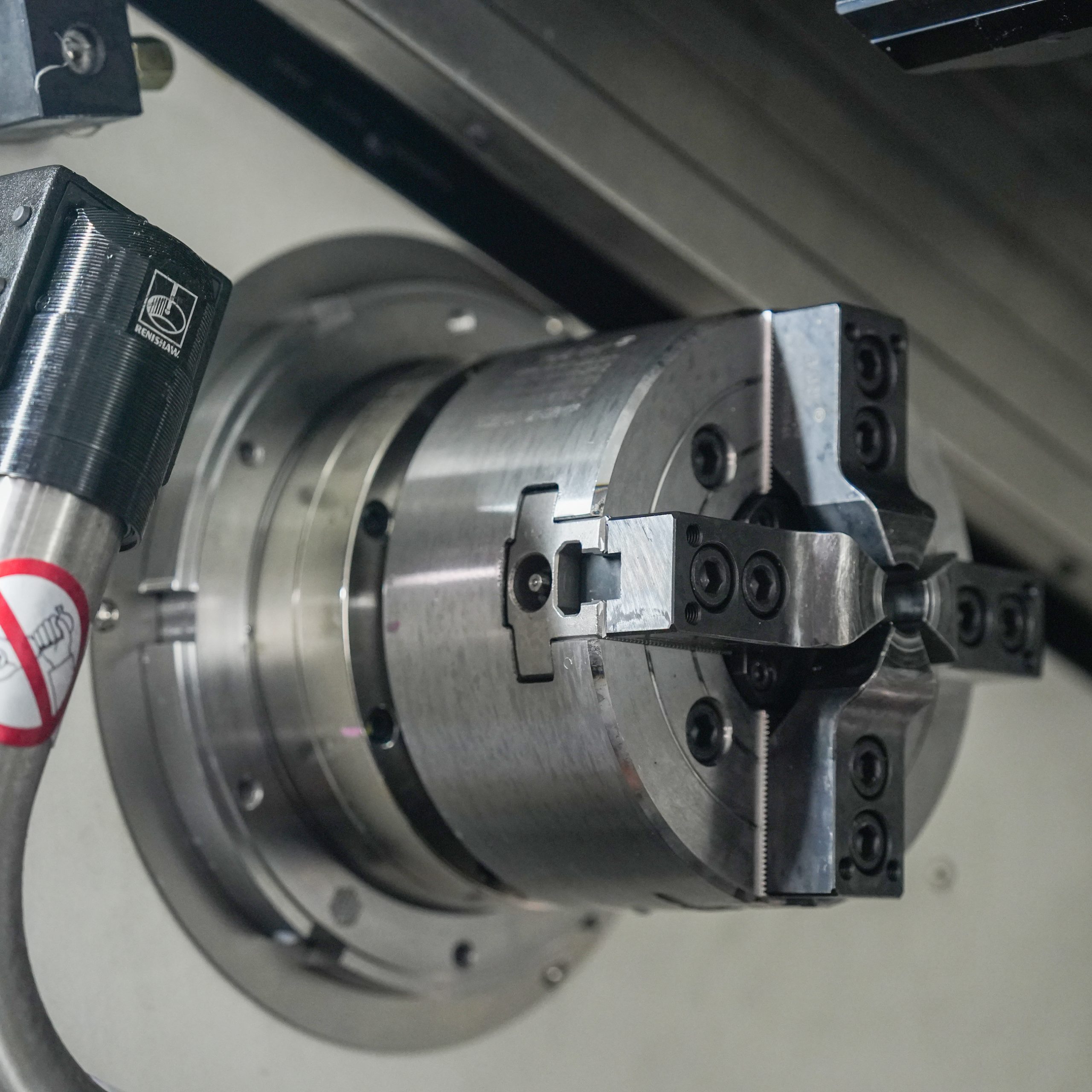

High Torque & Power: 15/18.5 kW left spindle (220 N·m) and 11 kW right spindle (105 N·m).
Large Capacity: Max. swing 480 mm, turning length 700 mm, and 51/80 mm bar capacity.
High-Rigidity Guidance: Roller linear guides for high-speed, dynamic cutting precision.
Thermal Stability: Low-friction precision ball screws minimize feed system thermal fluctuation.
One-Setup Processing: Completes front and back operations in one clamping, eliminating re-clamping errors.
Double Efficiency: Twin turrets execute parallel cutting, cutting cycle times in half.
Heavy-Duty Stability: Rigid 11,000 kg machine body effectively dampens vibration during heavy cutting.
