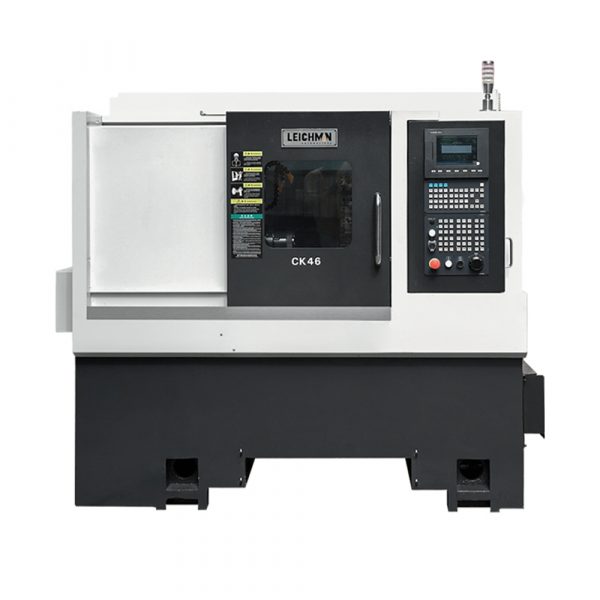

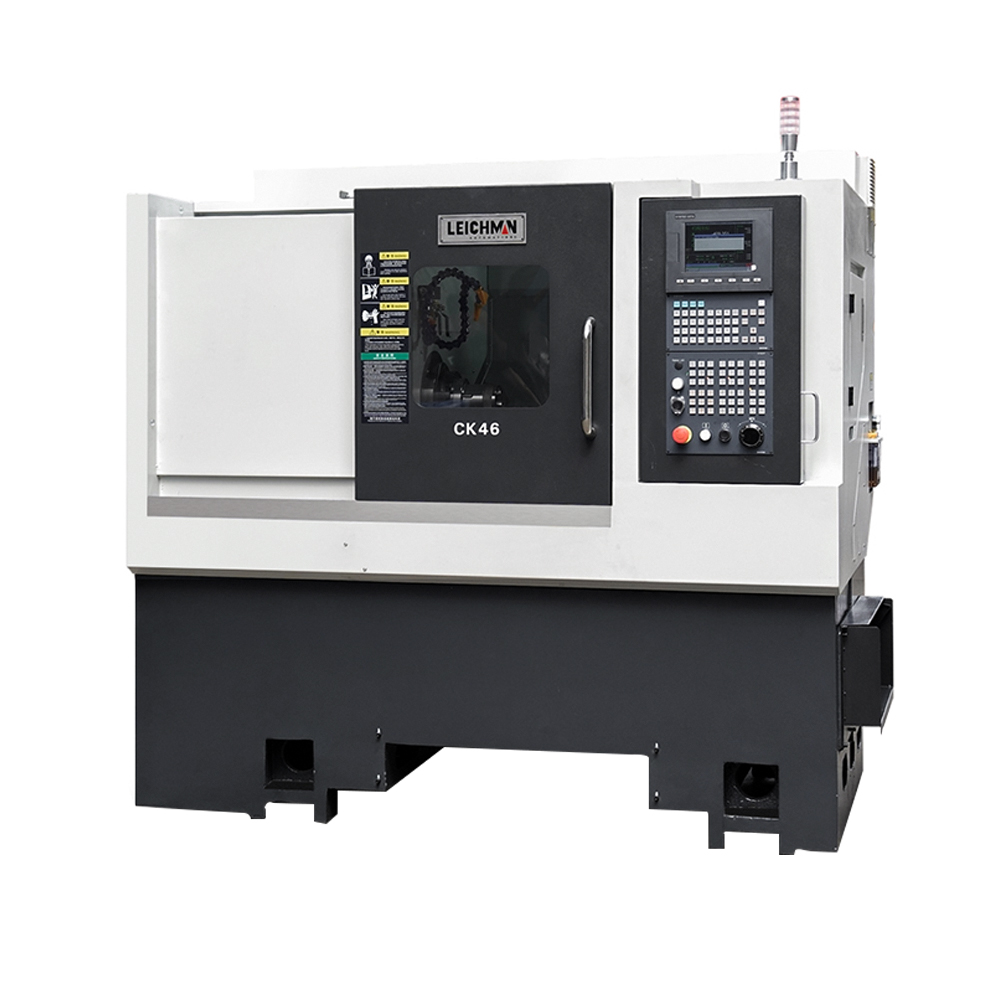

Leichman CK46 CNC Gang Type Lathe

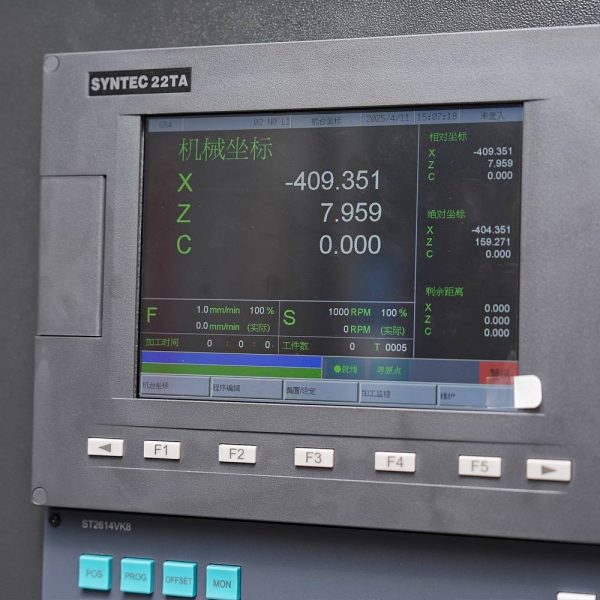

CK46 CNC Gang Type Lathe Standard SYNTEC CNC system with optional alternative CNC systems 30° inclined bed design

3-jaw self-centering hydraulic chucks. Low friction, high rigidity, and high precision

Specifications		Unit	CK46
Capacity	Max swing over bed	mm	450
	Max machining diameter (disk)	mm	350
	Max machining diameter (shaft)	mm	135
	Machining length	mm	220
Travel	X axis travel	mm	950
Travel	Z axis travel	mm	290
Precision	Spindle runout	mm	0.003
Precision	X/Z axis repositioning precision	mm	0.002
Integral Casting Bed	Bed tilt angle	°	30
Spindle	Spindle speed	rpm	6000
	Sleeve clamp diameter	inch	6
	Spindle nose	–	A2-5
	Chuck diameter	Inch	6’’
	Spindle bore	mm	56
	Max bar diameter	mm	45
	Center height between workbench and spindle	mm	70
Rapid Speed	X axis rapid speed	m/min	27
Rapid Speed	Z axis rapid speed	m/min	27
Motor Power	Spindle	kW	5.5
	X axis servo motor	kW	1.3
	Y axis servo motor	kW	1.3

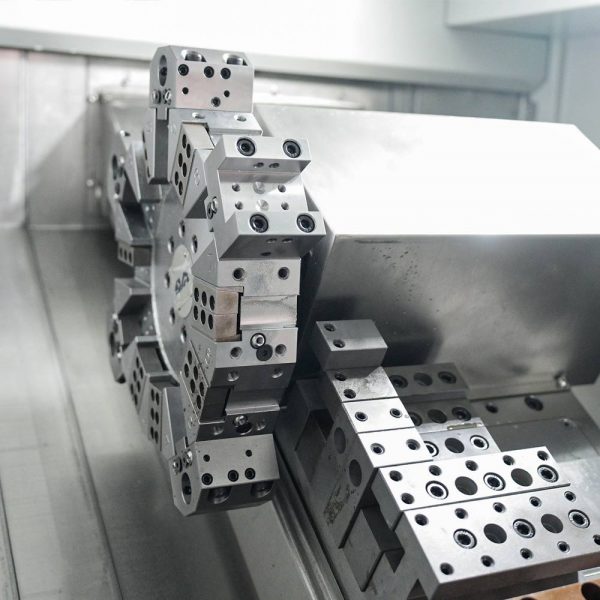

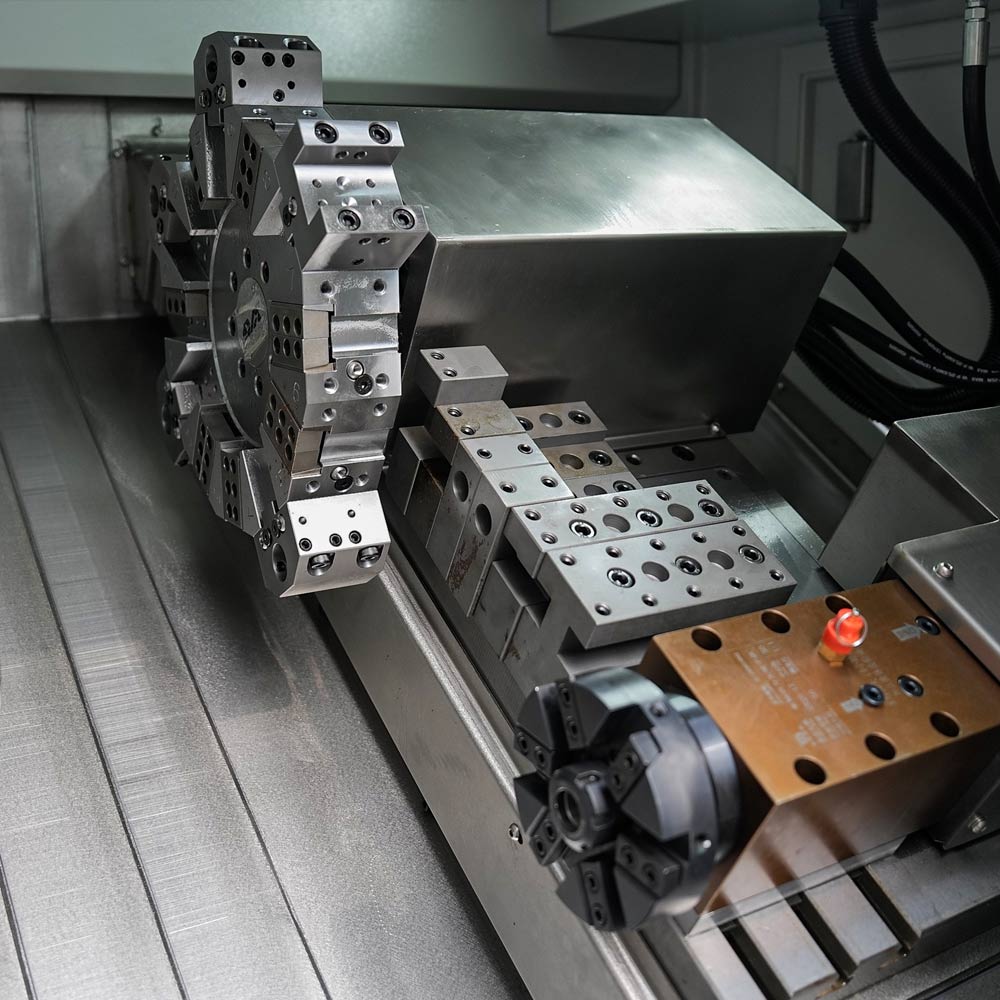

Tools	Gang type cutter	pcs	8
	Dimension of tools	mm	20×20
	Diameter of boring tool shank	mm	Φ20
Others	Dimension	mm	2160×1600×1800
Others	Net weight	kg	2600

- Bed & Base Construction
  - One-piece cast iron bed and base for enhanced vibration resistance and minimal deformation.
  - 30° inclined bed design withslant-mounted carriage and tool post for easy operation and efficient chip removal.
  - Compact and aesthetically designed, saving floor space.

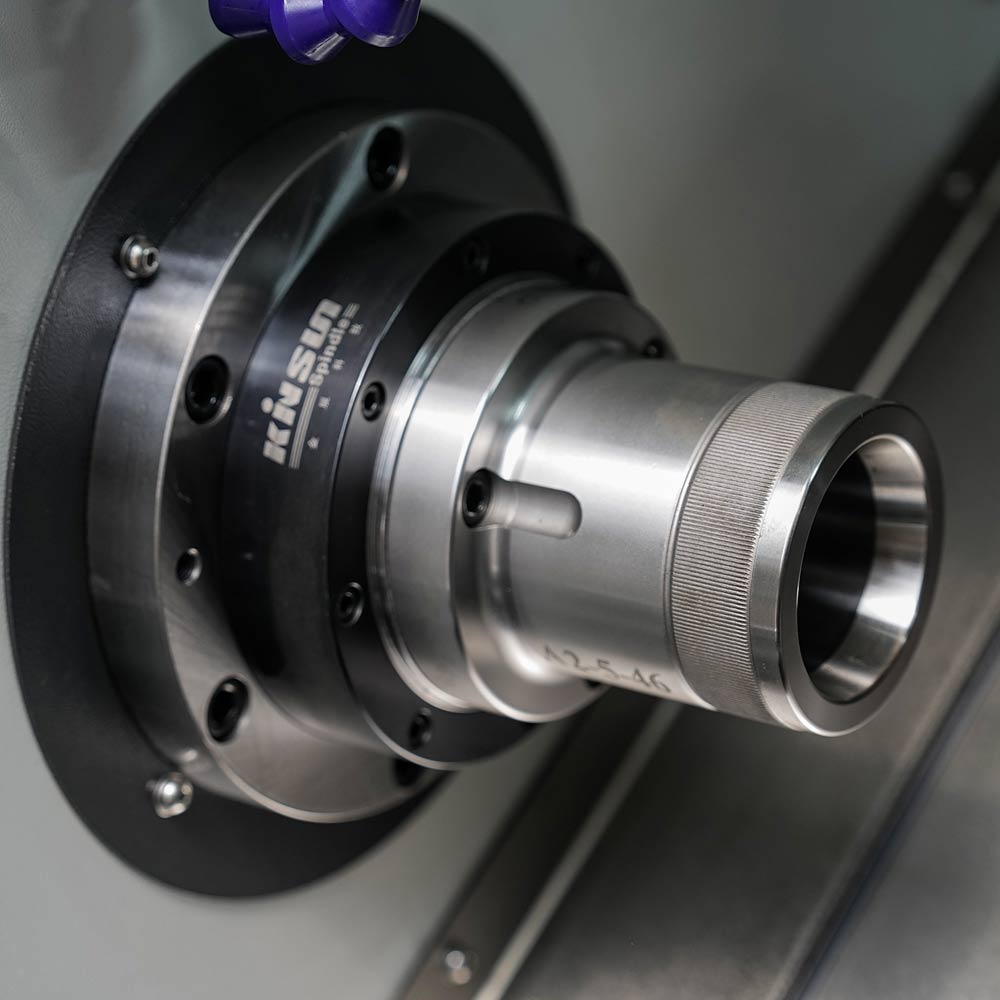

- Spindle System
  - High-precision Taiwan-made spindle with Japan NSKprecision bearings.

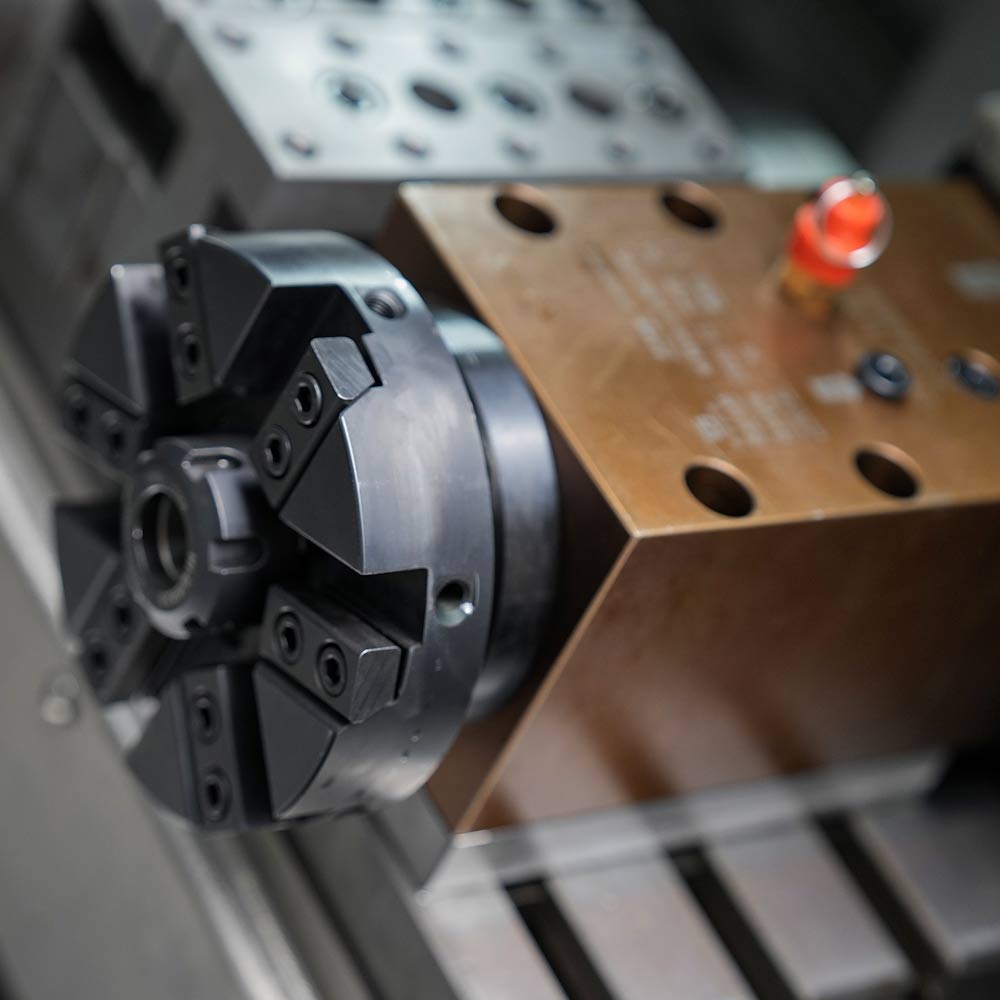

  - Spindle flange compatible with 3-jaw self-centering hydraulic chucksor other elastic chucks.

- Transmission System
  - High-precision JapanTHK ball screws and Japan THK high-speed linear guideways.
  - X & Z axes equipped with high-rigidity linear guideways, optimized for track span calculation.
  - Low friction, high rigidity, and high precision, with rapid traverse speeds up to 27 m/min, improving efficiency and reducing machining time.
