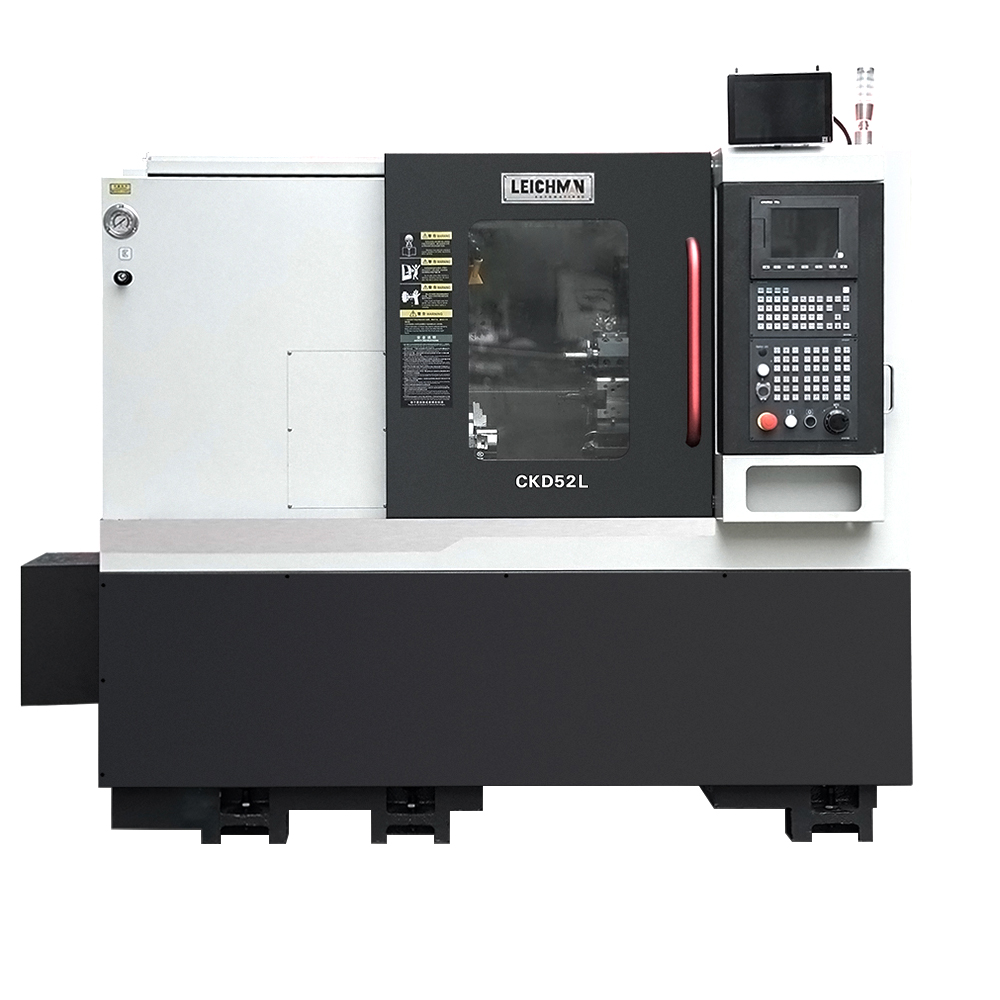

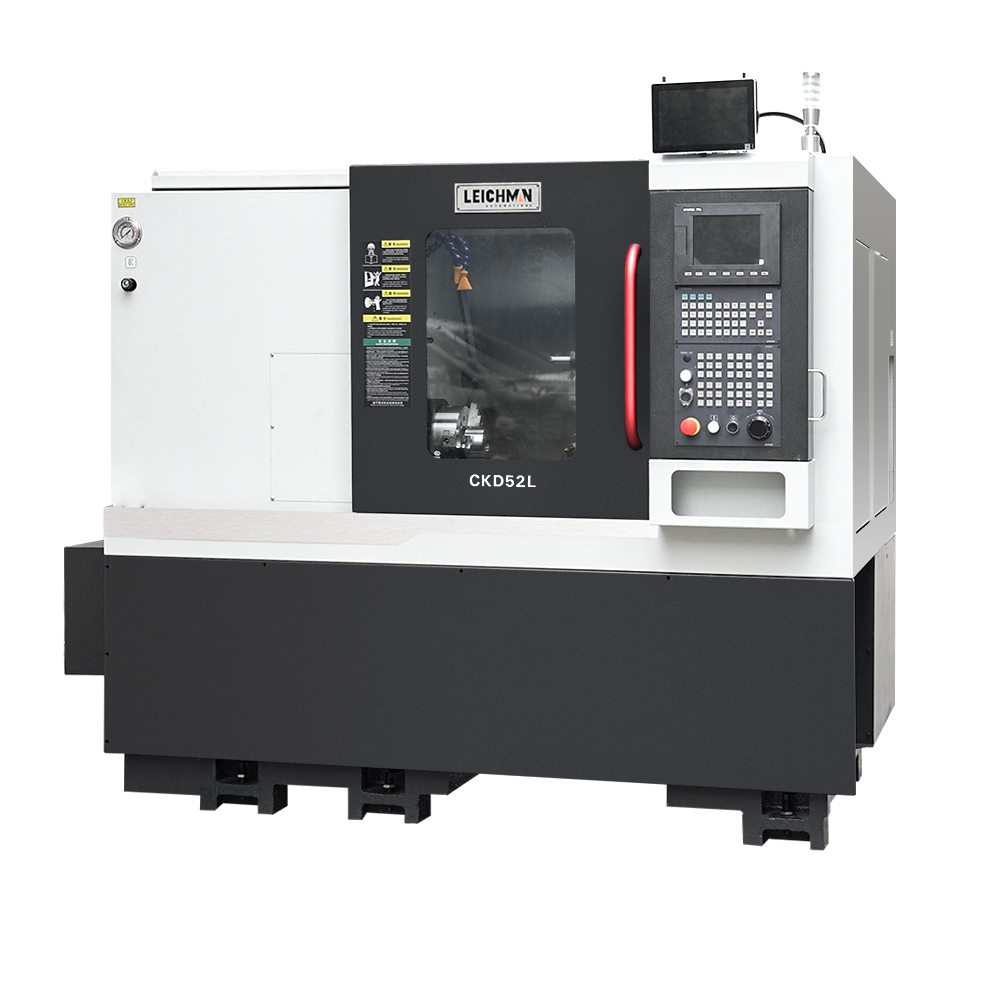

CKD52L CNC Turret Lathe control system adopts Taiwan SYNTEC system.The bed is inclined at 30°.The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck
| Specifications | Unit | CKD52L | |
| Capacity | Max. swing over bed | mm | 500 |
| Max. machining diameter | mm | 400 | |
| Max. machining length | mm | 380 | |
| Travel | X axis travel | mm | 245 |
| Z axis travel | mm | 400 | |
| Accuracy | Spindle runout | mm | 0.003 |
| X/Z axis repositioning accuracy | mm | 0.002 | |
| Spindle | Spindle speed | rpm | 4000 |
| Chuck diameter | inch | 8 | |
| Spindle nose | – | A2-6 | |
| Spindle bore | mm | 66 | |
| Max bar diameter | mm | 52 | |
| Turret | Type | – | 100 center height, 400 cutter head,12-position servo turret |
| Outer Shank diameter | mm | 25 | |
| Inner shank diameter | mm | 40 | |
| Tailstock | Tailstock shaft diameter | mm | 80 |
| Tailstock shaft taper hole form | – | MT5 | |
| Tailstock axis movement | mm | 100 | |
| Rapid Speed | X axis rapid speed | m/min | 30 |
| Z axis rapid speed | m/min | 30 | |
| Motor Power | Spindle | kW | 11 |
| X axis servo motor | kW | 1.8 | |
| Z axis servo motor | kW | 1.8 | |
| Others | Machine size (L×W×H) | mm | 2250×1700×1800 |
| Weight | kg | 3400 | |
1.The machine tool control system adopts Taiwan SYNTEC system, and it can also be equipped with CNC systems produced by other companies according to user requirements.
2.The base and bed of the machine tool are integrally cast iron, which has strong shock resistance and is not easy to deform. The bed is inclined at 30°, and the large carriage and tool post are inclined, which makes the operation of the machine tool and chip removal very convenient. The appearance design of the machine tool is beautiful, and it takes up little space.
3.The main shaft adopts a high-precision main shaft, which contains Sweden SKF precision main shaft bearings. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.
4.The transmission part of the machine tool adopts the high-precision Japanese THK ball screw and high-speed linear slide of the well-known Japanese THK 35-type. The X-axis and Z-axis adopt the high-rigidity linear slide, and the track and the track are optimized through calculation. Span, low resistance, high rigidity, high precision, displacement speed up to 24m/min, provide work efficiency and shorten processing time.
5.It can process short shafts and disk products; the processing is simple, and the slender bar can be equipped with a tool holder.
Submit your machining requirements for a custom solution proposal within 24 hours.
1.The machine tool control system adopts Taiwan SYNTEC system, and it can also be equipped with CNC systems produced by other companies according to user requirements.
2.The base and bed of the machine tool are integrally cast iron, which has strong shock resistance and is not easy to deform. The bed is inclined at 30°, and the large carriage and tool post are inclined, which makes the operation of the machine tool and chip removal very convenient. The appearance design of the machine tool is beautiful, and it takes up little space.
3.The main shaft adopts a high-precision main shaft, which contains Sweden SKF precision main shaft bearings. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.
4.The transmission part of the machine tool adopts the high-precision Japanese THK ball screw and high-speed linear slide of the well-known Japanese THK 35-type. The X-axis and Z-axis adopt the high-rigidity linear slide, and the track and the track are optimized through calculation. Span, low resistance, high rigidity, high precision, displacement speed up to 24m/min, provide work efficiency and shorten processing time.
5.It can process short shafts and disk products; the processing is simple, and the slender bar can be equipped with a tool holder.
