| Specifications | CSL1203II | ||
| Processing capacity | Max. bar diameter (mm) | Φ12 | |
| Spindle bore diameter (mm) | Φ16 | ||
| Max. machining length (mm) | Fixed guide bush | 140 | |
| Rotary guide bush | 140(optional) | ||
| Spindle max. drilling diameter (mm) | Φ7 | ||
| Spindle max. tapping diameter | M6 | ||
| Max. drilling diameter of radial live tool (mm) | Φ6(Optional) | ||
| Max. thread diameter of radial live tool | M5(Optional) | ||
| Mechanical capacity | Spindle speed (r/min) | 8000 (Rotary guide bush 6000) | |
| Radial live tool speed (r/min) | 5000(Optional) | ||
| Fast moving speed (m/min) | 20 | ||
| Spindle runout (mm) | ≤0.002 | ||
| Repeated positioning accuracy | ≤0.003 | ||
| Tool system | O.D. tool | 5(□10) | |
| Axial machining tool | 5(ER11) | ||
| Radial live tool | 3(ER11)(Optional) | ||
| Motor power | Main spindle (kw) | 3.7 | |
| Linear drive axis (kw) | 0.75 | ||
| Radial live tool (kw) | 0.4(Optional) | ||
| Cooling pump (kw) | 0.18 | ||
| Machine weight (kg) | 1350 | ||
| Machine dimensions (L × W × H) (mm) | 1560×900×1680 | ||
CNC controller: Standard Taiwan SYNTEC system, high stability, high precision.
High-precision spindle: built-in electric spindle structure, spindle bearing adopts imported high-precision angular contact bearing, to ensure the high rigidity and durable accuracy of the spindle, spindle runout ≤2μm.
High performance cast iron: stable structural design, high quality Mihanna cast iron (dense cast iron) overall bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: the feed axis is fully servo driven, using imported high-precision screw bearings, imported high-precision ball screw guideways to ensure processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: can choose fixed guide bush or rotary guide bush mode, to meet the diversified processing requirements.

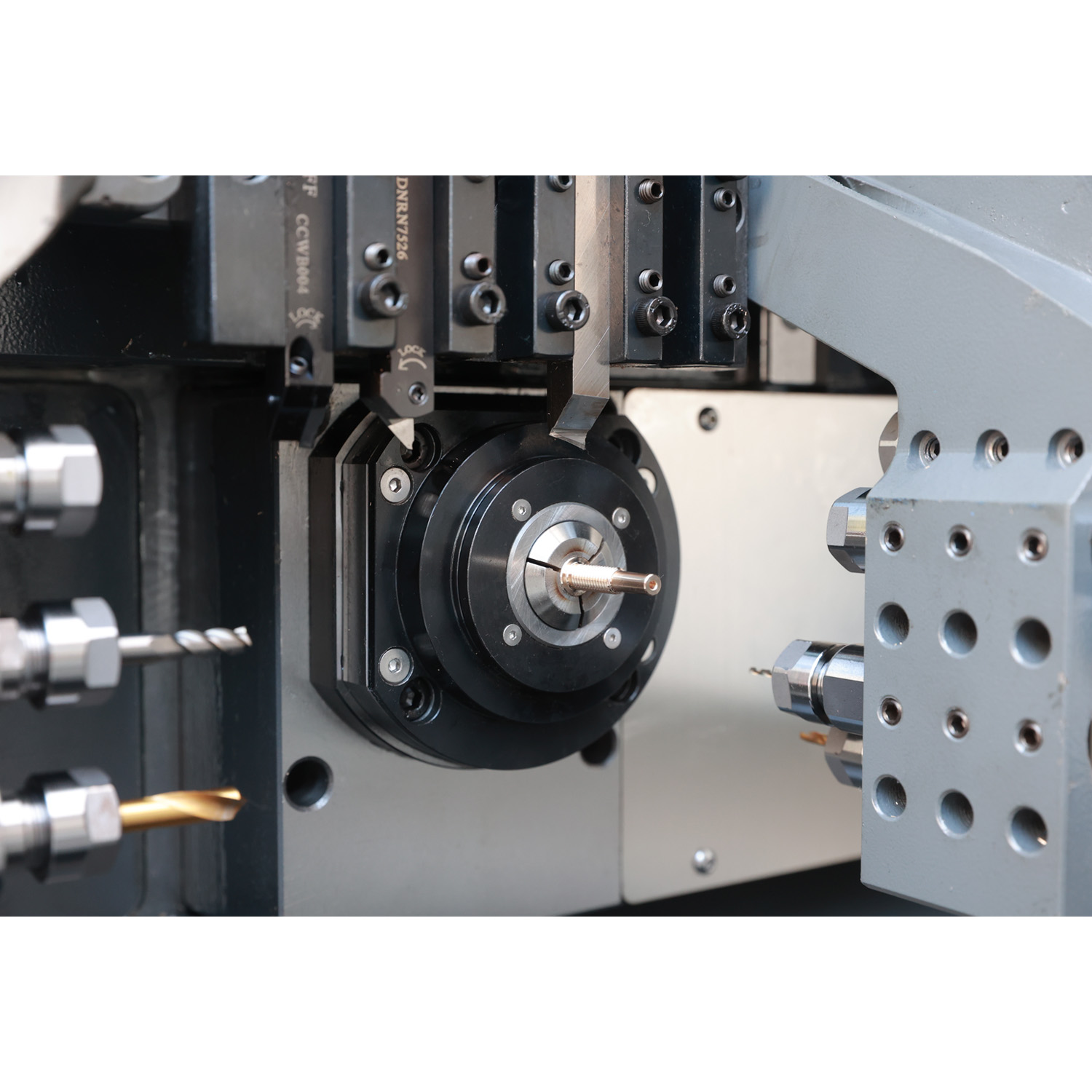

Tool system: horizontal linear tool layout structure, smooth chip removal, compact structure, quick tool change. Through the configuration of radial live tool, it can meet the complex machining needs of complex turning, milling, drilling and other processes.
Lubrication system: All ball screws and guide rails are lubricated by centralized lubrication system to ensure long-term and efficient operation of the machine tool.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
