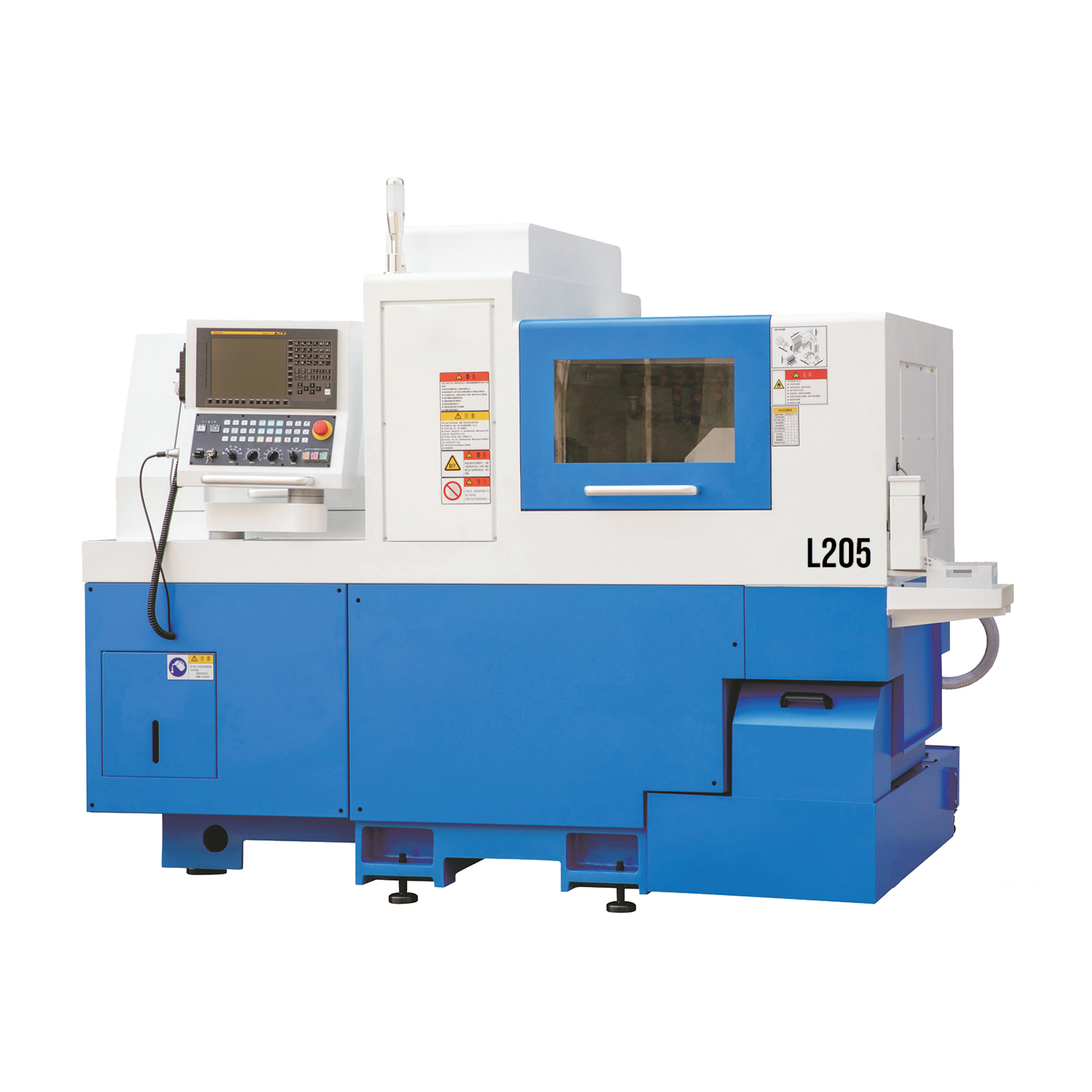

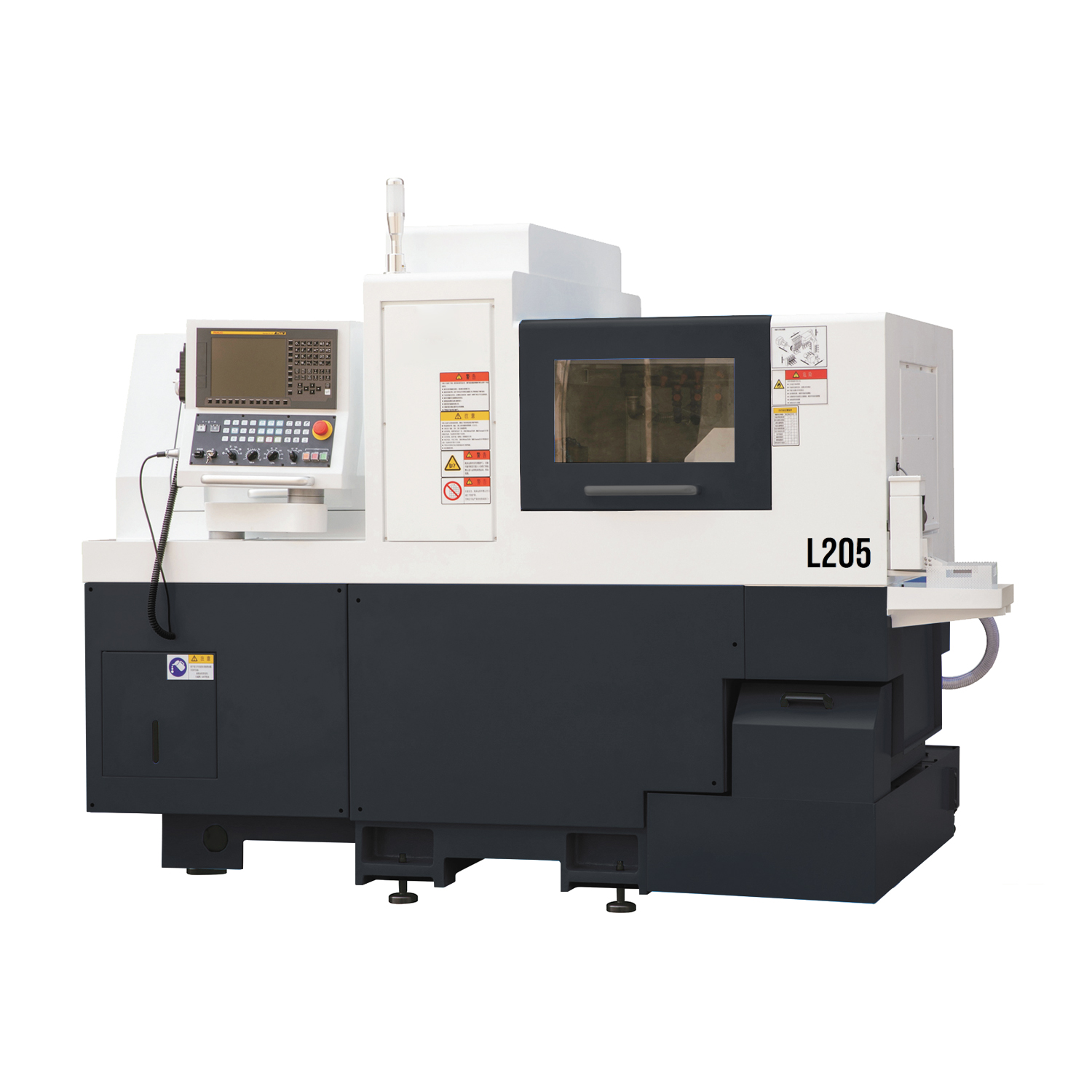

| Specifications | S205 | ||
| Processing capacity | Max. bar diameter (mm) | Φ20 | |
| Spindle bore diameter (mm) | Φ25 | ||
| Max. machining length (mm) | Without guide bush | 2.5D(Max. 50) | |
| Rotary guide bush | 180 | ||
| Max. machining length (mm) | Φ20 | ||
| Spindle max. drilling diameter (mm) | Φ10 | ||
| Spindle max. tapping diameter | M10 | ||
| Back spindle max. drilling diameter (mm) | Φ10 | ||
| Back spindle max. tapping diameter | M10 | ||
| Radial live tool max. drilling diameter (mm) | Φ8 | ||
| Radial live tool max. thread diameter | M6 | ||
| Back live tool max. drilling diameter (mm) | Φ8(optional) | ||
| Back live tool max. thread diameter | M6(optional) | ||
| Mechanical capacity | Spindle speed (r/min) | 10000(rotary guide bush 8000) | |
| Back spindle speed (r/min) | 10000 | ||
| Radial live tool speed (r/min) | 6000 | ||
| Back live tool speed (r/min) | 6000(optional) | ||
| Fast moving speed (m/min) | 24(X2、Y1、Z1、Z2) | ||
| 20(X1) | |||
| Spindle runout (mm) | ≤0.002 | ||
| Repeated positioning accuracy | ≤0.003 | ||
| Tool system | O.D. tool | 1(□16)+6(□12) | |
| Axial machining tool | 4(ER16) | ||
| Radial live tool | 2(ER11)+3(ER16) | ||
| Deep hole tool holder | 2(ER16, optional) | ||
| Back machining tool | 4(ER16) | ||
| Back live tool | assorting | ||
| Motor power | Main spindle (kw) | 4.2 | |
| Back spindle (kw) | 4.2 | ||
| Linear drive axis (kw) | 1 | ||
| Radial live tool (kw) | 1 | ||
| Back live tool (kw) | 1(Optional) | ||
| Cooling pump (kw) | 0.4 | ||
| Machine weight (kg) | 2900 | ||
| Machine dimensions (L × W × H) (mm) | 2565×1350×1850 | ||
CNC controller: Standard Taiwan SYNTEC system, double channel control, high efficiency, high precision. Optional FANUC or Mitsubishi system according to customer needs.
High-precision spindle: The spindle bearing of the machine tool adopts imported high-precision angular contact bearings to ensure the high rigidity and durable accuracy of the spindle, and the spindle runout is less than 2μm.
High performance cast iron: newly designed high rigidity structure, high quality Mihanna cast iron (dense cast iron) integral bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: feed axis full servo drive, using imported high-precision ball screw bearings, imported high-precision ball screw guideways, key parts using roller guideway to ensure structural rigidity, processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: The bushing mode can be quickly switched between the bushing mode and the without bushing mode to meet the diversified processing requirements.

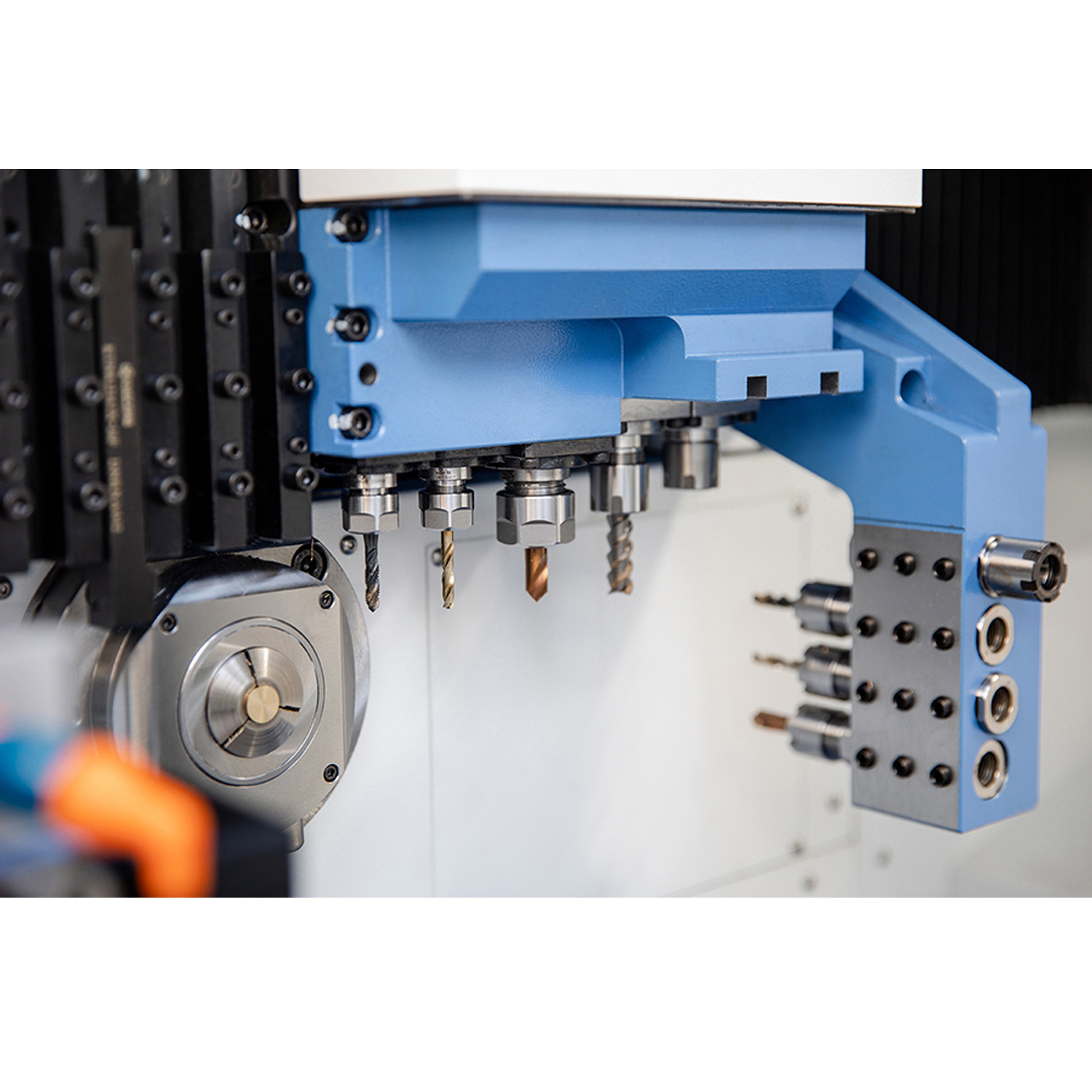

Tool system: horizontal linear tool layout structure, smooth chip removal, compact structure. Equipped with radial live tool and spindle indexing function, a richer tool system can meet the complex machining needs of more complex turning, milling, drilling and other processes, and can also choose a variety of styles of live tools according to customer workpiece requirements.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
| Main standard configuration | |
| Rotary guide bush | Liquid level detector switch |
| Without guide bush device | External handwheel |
| Radial live tool device | Spindle oil cooler |
| Back spindle front blanking device | LED lighting device |
| Part transfer unit | LED three-color alarm light |
| Main NC functions | Main optional accessories |
| SYNTEC 10.4-inch dual channel system | High-pressure cooling unit |
| Absolute position servo | Oil mist collector |
| Bus communication | Chip cleaner |
| Hand wheel simulation | A variety of live tools (refer to the matching picture) |
| Back spindle synchronous feeding | Long cutting attachment |
| Live tool rigid tapping | Flow detection switch |
| C1/C2 axis coupling | Cut-off detection (mechanical) |
| Z1/Z2 axis coupling | Safety lock |
| Torque detection | Fanuc or Mitsubishi Systems |
| Cut off detection (software type) | |
Submit your machining requirements for a custom solution proposal within 24 hours.
CNC controller: Standard Taiwan SYNTEC system, double channel control, high efficiency, high precision. Optional FANUC or Mitsubishi system according to customer needs.
High-precision spindle: The spindle bearing of the machine tool adopts imported high-precision angular contact bearings to ensure the high rigidity and durable accuracy of the spindle, and the spindle runout is less than 2μm.
High performance cast iron: newly designed high rigidity structure, high quality Mihanna cast iron (dense cast iron) integral bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: feed axis full servo drive, using imported high-precision ball screw bearings, imported high-precision ball screw guideways, key parts using roller guideway to ensure structural rigidity, processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: The bushing mode can be quickly switched between the bushing mode and the without bushing mode to meet the diversified processing requirements.
Tool system: horizontal linear tool layout structure, smooth chip removal, compact structure. Equipped with radial live tool and spindle indexing function, a richer tool system can meet the complex machining needs of more complex turning, milling, drilling and other processes, and can also choose a variety of styles of live tools according to customer workpiece requirements.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
| Main standard configuration | |
| Rotary guide bush | Liquid level detector switch |
| Without guide bush device | External handwheel |
| Radial live tool device | Spindle oil cooler |
| Back spindle front blanking device | LED lighting device |
| Part transfer unit | LED three-color alarm light |
| Main NC functions | Main optional accessories |
| SYNTEC 10.4-inch dual channel system | High-pressure cooling unit |
| Absolute position servo | Oil mist collector |
| Bus communication | Chip cleaner |
| Hand wheel simulation | A variety of live tools (refer to the matching picture) |
| Back spindle synchronous feeding | Long cutting attachment |
| Live tool rigid tapping | Flow detection switch |
| C1/C2 axis coupling | Cut-off detection (mechanical) |
| Z1/Z2 axis coupling | Safety lock |
| Torque detection | Fanuc or Mitsubishi Systems |
| Cut off detection (software type) | |
