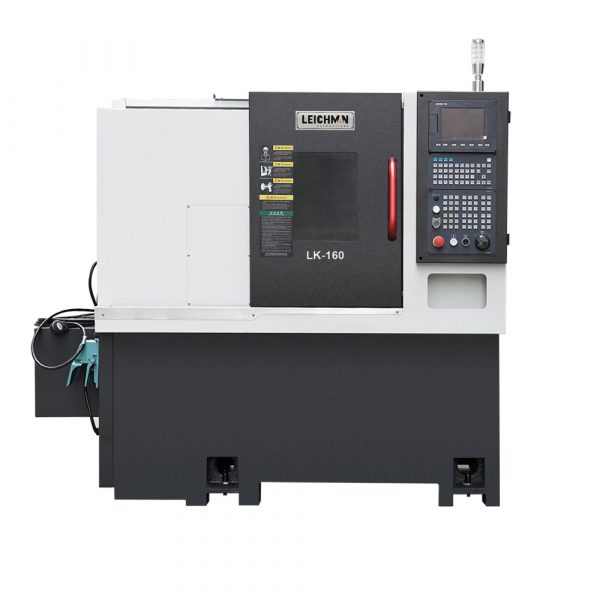

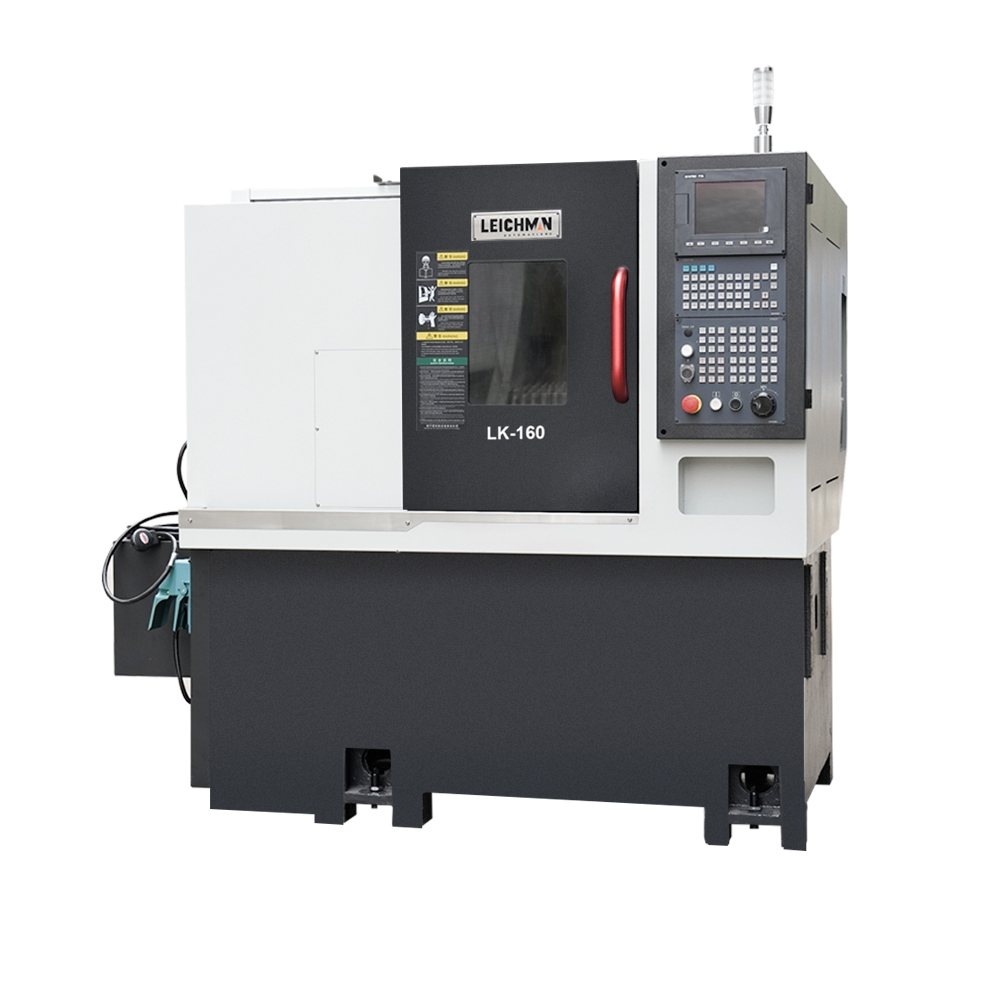

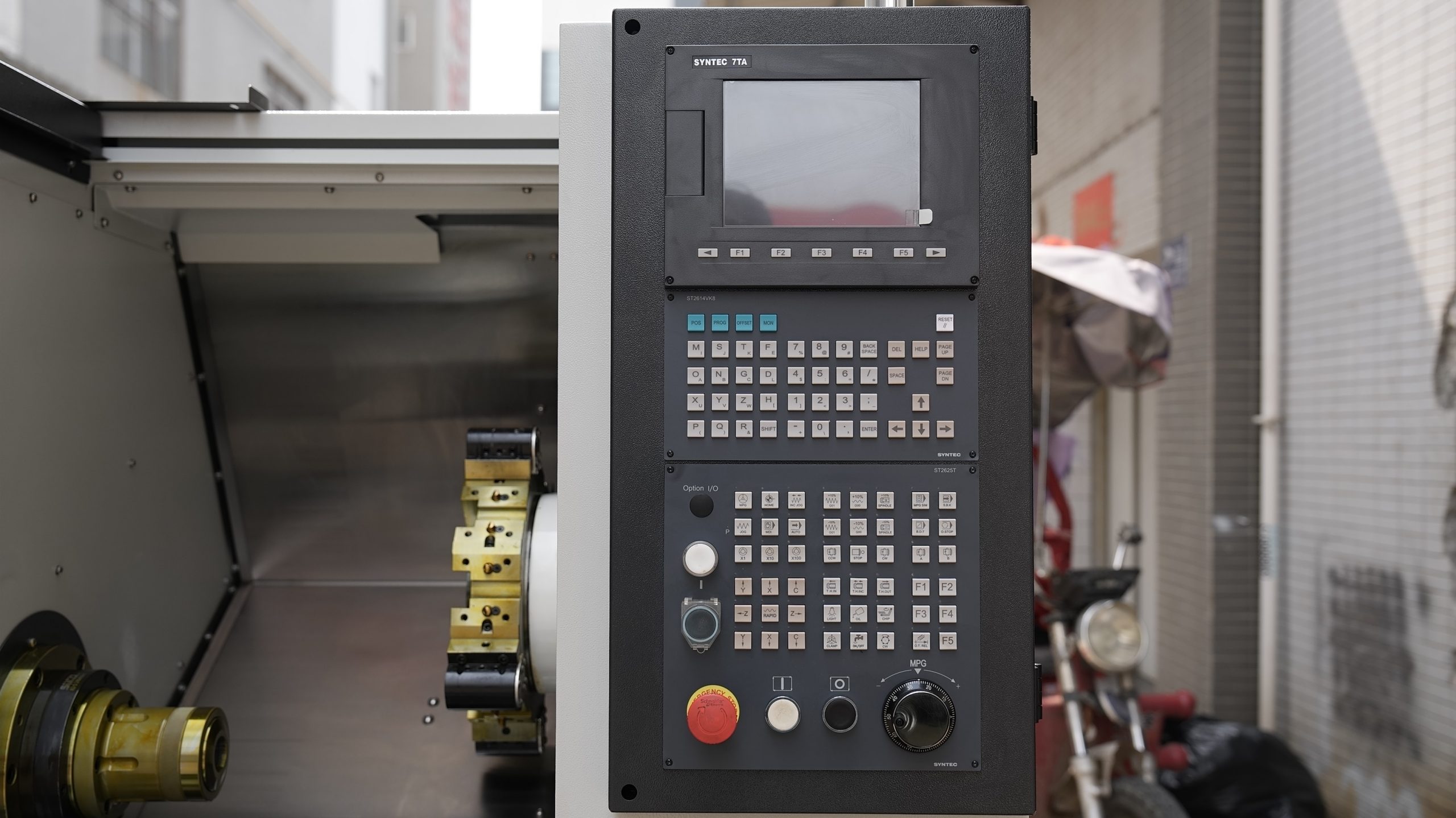

LK-160 CNC Lathe a high-speed, high-precision, and rigid multi-purpose machine designed ,30° slant bed,Equipped with Fanuc 0i-TF Plus(3)
| Specifications | Unit | LK-160 | |
| CAPACITY | Max. swing over bed | mm | Ф400 |
| Max. turning diameter | mm | Ф260 | |
| Max. turning length | mm | 220 | |
| PRECISION | Spindle runout | mm | 0.003 |
| X/Z axis positioning accuracy | mm | X: 0.004/Z: 0.006 | |
| X/Z axis repositioning accuracy | mm | X: 0.002/Z: 0.004 | |
| SPINDLE | Bar capacity | mm | Ф45 |
| Spindle bore diameter | mm | Ф56 | |
| Spindle taper | – | A2-5 | |
| Spindle speed range | rpm | 5000 | |
| Chuck size | inch | 6 | |
| FEEDS | X axis travel | mm | 185 |
| Z axis travel | mm | 280 | |
| X Rapid traverse | m/min | 30 | |
| Z Rapid traverse | m/min | 30 | |
| TURRET | Tool type | – | 10-position servo turret |
| Outer shank diameter | mm | 20 | |
| Inner shank diameter | mm | 25 | |
| MOTOR POWER | Spindle | kW | 5.5 |
| X axis servo motor | kW | 1.3 | |
| Z axis servo motor | kW | 1.3 | |
| OTHERS | Machine dimension (L×W×H) | mm | 1900×1450×1700 |
| Net weight | kg | 2100 | |
A high-speed, high-precision, and rigid multi-purpose machine designed for efficient machining of small-to-medium precision parts in industries like automotive, aerospace, electronics, medical devices, and mold manufacturing.
Key Features:

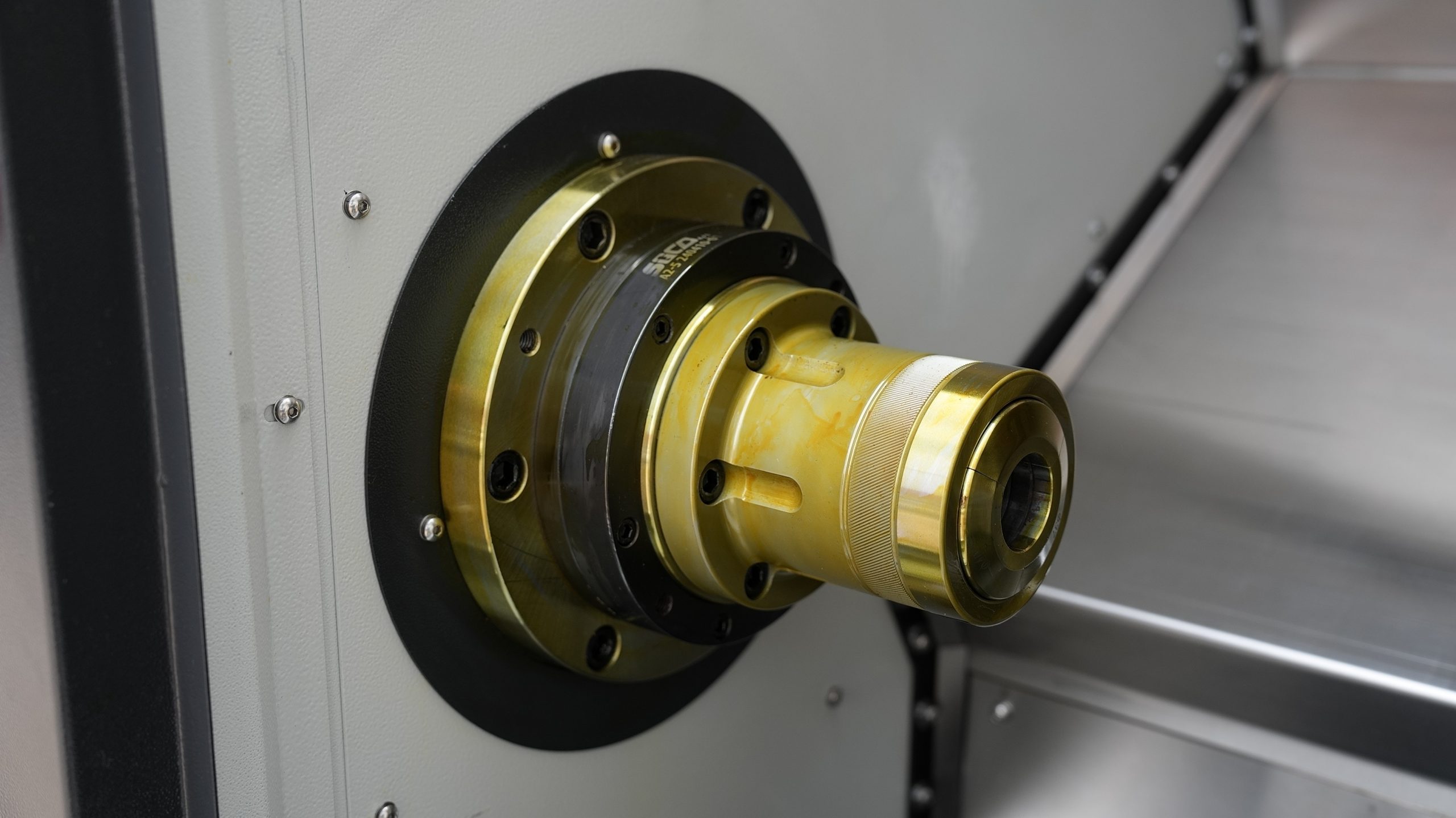

Spindle: High-power, high-torque, and high-speed with P4-grade precision bearings for superior accuracy.

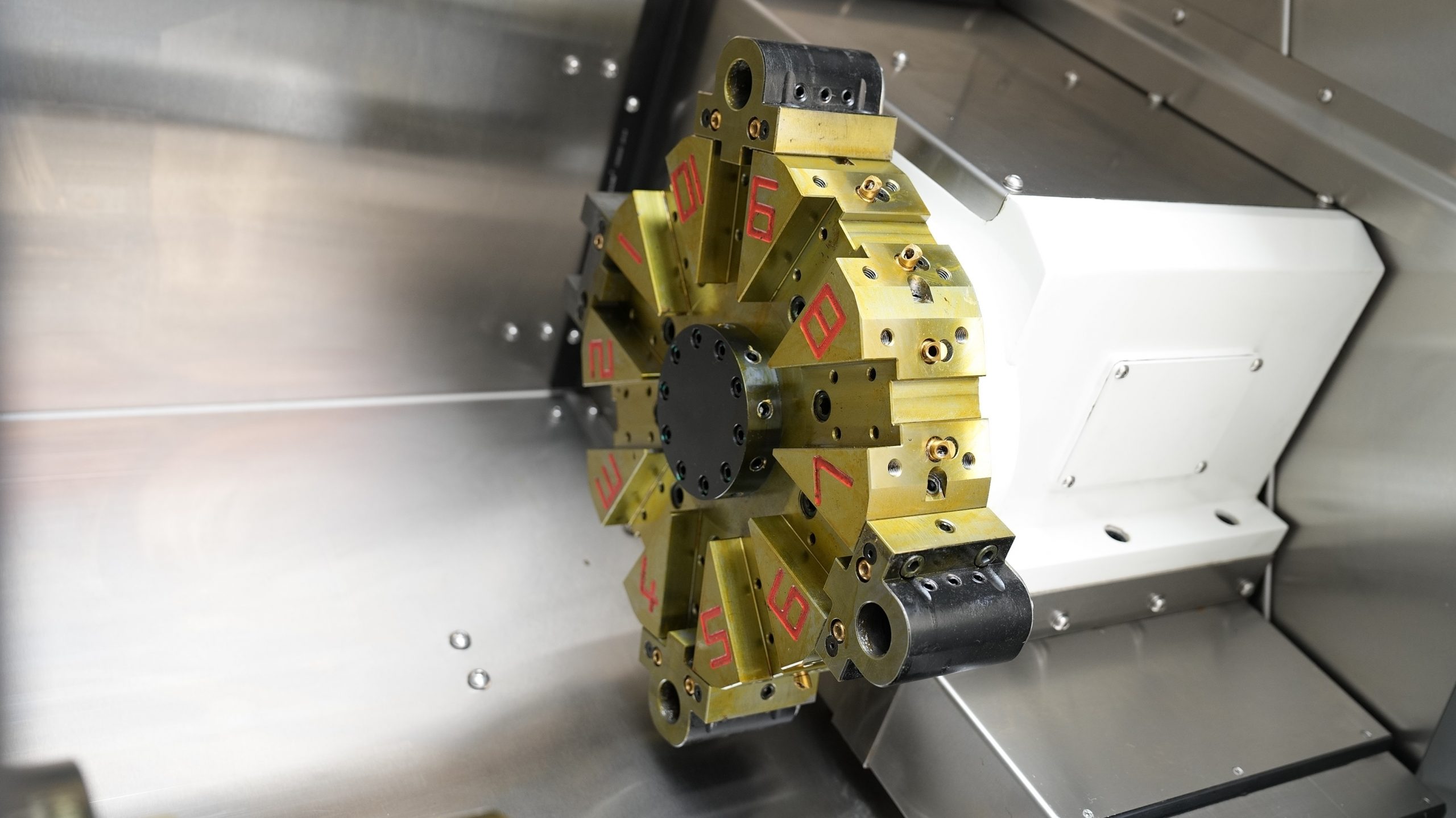

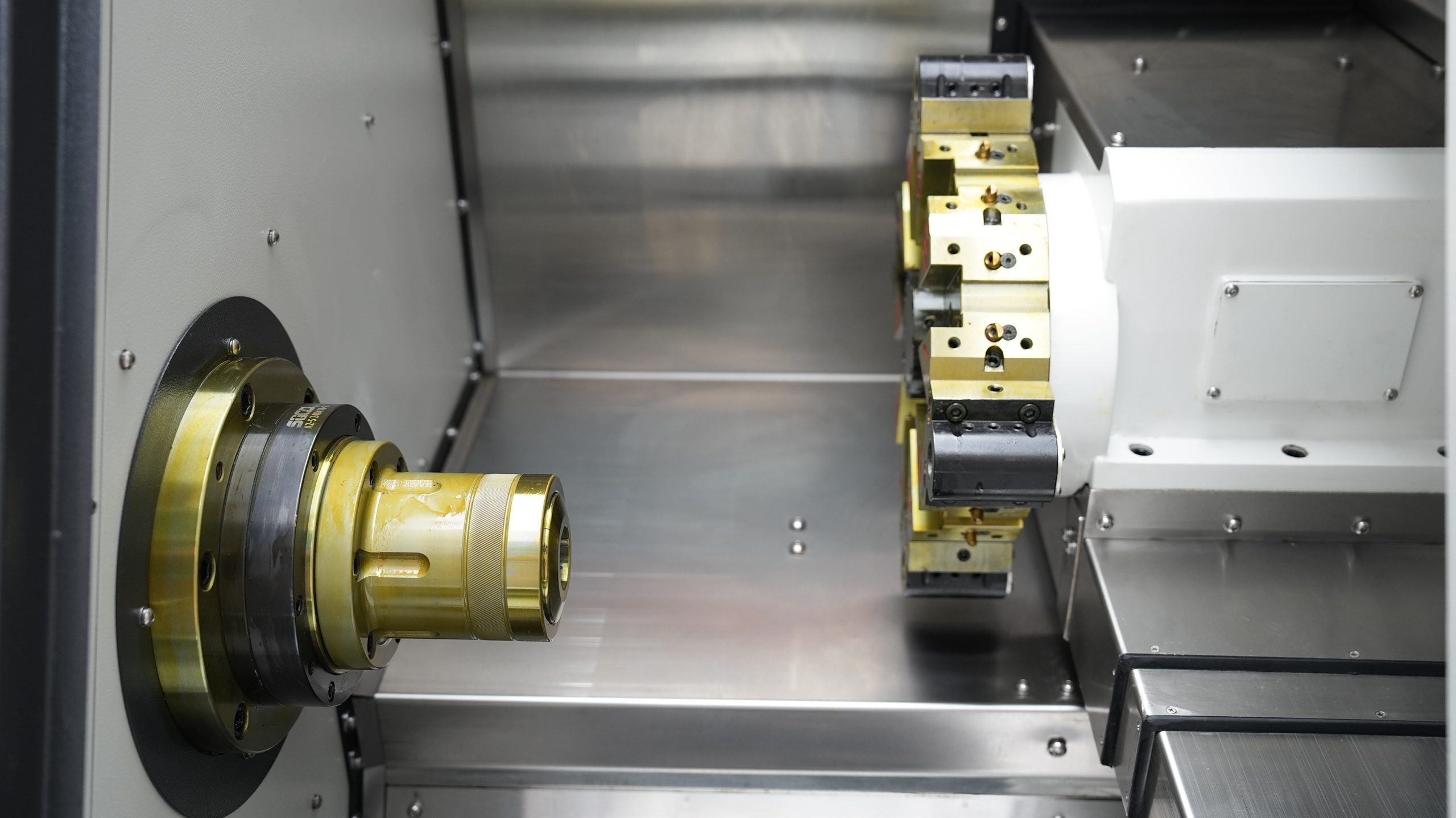

Turret: 10-position servo turret (290mm diameter) with hydraulic locking, enabling fast, rigid tool changes and supporting high-pressure coolant (70kg) for chip breaking.
Drive System:
Bed Structure: 30° slant bed with reinforced one-piece casting for high rigidity, stability, and vibration resistance.
Eco-Friendly Design:
Advantages:
Ideal for industries demanding precision, speed, and reliability in machining.
Submit your machining requirements for a custom solution proposal within 24 hours.
A high-speed, high-precision, and rigid multi-purpose machine designed for efficient machining of small-to-medium precision parts in industries like automotive, aerospace, electronics, medical devices, and mold manufacturing.
Key Features:
Spindle: High-power, high-torque, and high-speed with P4-grade precision bearings for superior accuracy.
Turret: 10-position servo turret (290mm diameter) with hydraulic locking, enabling fast, rigid tool changes and supporting high-pressure coolant (70kg) for chip breaking.
Drive System:
Bed Structure: 30° slant bed with reinforced one-piece casting for high rigidity, stability, and vibration resistance.
Eco-Friendly Design:
Advantages:
Ideal for industries demanding precision, speed, and reliability in machining.
