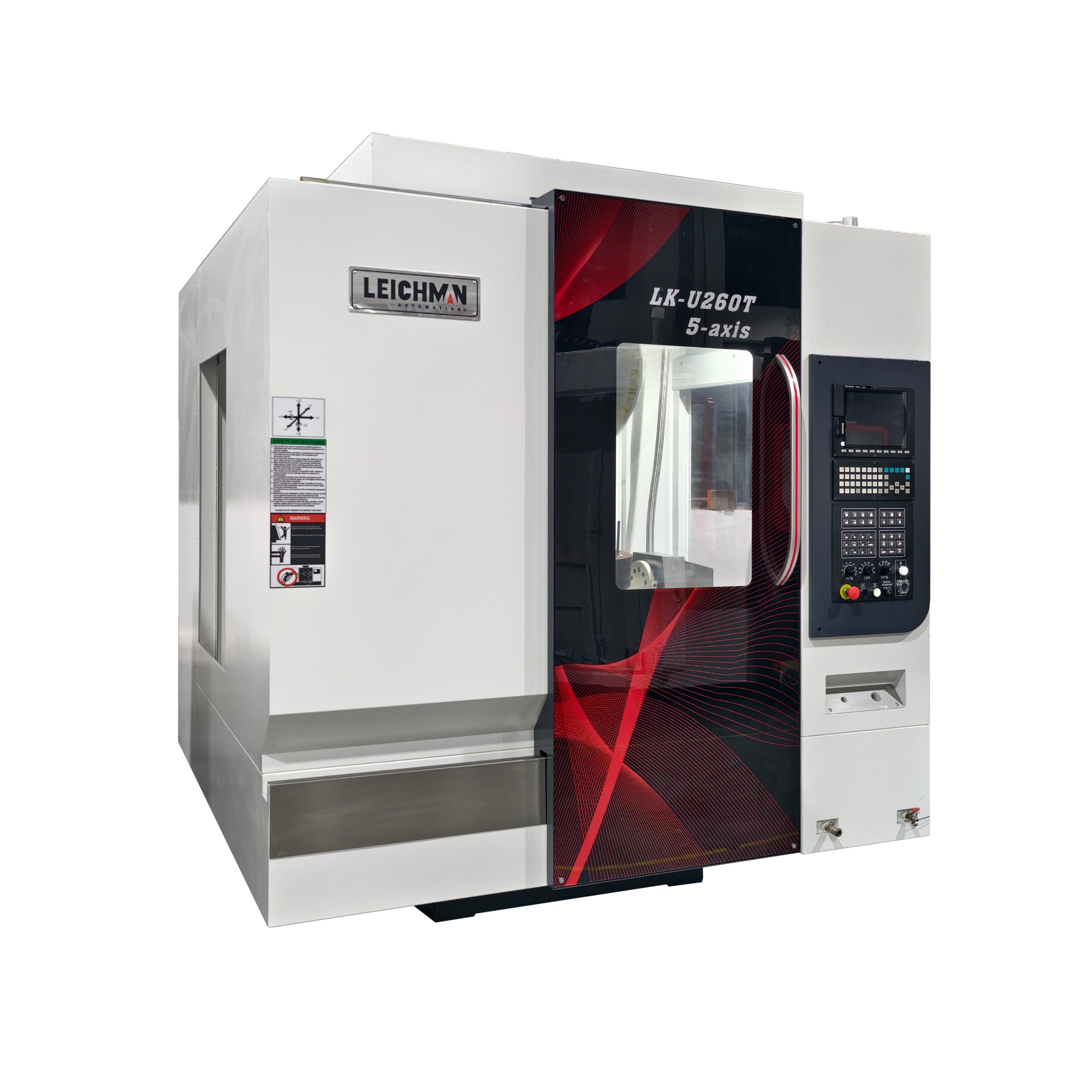

Leichman LK-U260T Five-Axis Machining Center

The 5-axis 5-linkage Machining Center LK-U260T is designed for precision 5 axis machining of complex parts, combining the performance of an advanced multi axis CNC system with high-performance multi axis milling for demanding applications.

Equipped with a fully enclosed protection system, this CNC 5 axis machining center effectively prevents cutting fluid and chips from splashing, ensuring a clean and safe machining environment while maintaining a refined and robust appearance.

  • XYZ Travel:  600 × 400 × 330 mm
  • X/Y/Z Rapid Traverse:  48 m/min
  • Rotary Table Size:  Ø260 mm
  • Spindle Taper:  BT30
  • Spindle Speed:  20,000 rpm
  • Spindle Power:  5.5 kW
  • Tool Magazine:  26-tool clamp-arm (servo driven)
  • Max Tool Length/Weight:  200 mm/4 kg
Get a Quote
Brochure
Facebook-f Linkedin-in Twitter Youtube
SpecificationsUnitLK-U260T
TravelX-axis travelmm600
Y-axis travelmm400
Z-axis travelmm330
Feeds X-axis rapid traverse speedm/min48
Y-axis rapid traverse speedm/min48
Z-axis rapid traverse speedm/min48
X/Y/Z-axis positioning accuracymm±0.008
X/Y/Z-axis repeatabilitymm±0.005
A axis A-axis travel (tilting axis)°±110°
A-axis maximum speedrpm230
A-axis rated torqueN.m253
A-axis positioning accuracyarc8”
A-axis repeatabilityarc6”
C axis C-axis travel (rotary axis)°360°
C-axis maximum speedrpm200
C-axis rated torqueN.m105
C-axis positioning accuracyarc8”
C-axis repeatabilityarc6”
A/C-axis brake type/Air brake
Worktable Spindle nose to table/400
Surface max. distance
Table (rotary table) sizemm260
Rotary table load capacitykg60
Spindle Spindle taper/BT30
Spindle Max. speedrpm20000
Spindle rated powerkw5.5
Spindle rated torqueN.m11
Spindle Max. torqueN.m12
Tool Magazine Tool magazine type/Clamp-armtype and Servo
Tool magazine capacitypcs26
Tool change time(T-T)s4
Max. tool lengthmm200
Max. tool weightkg4
OthersMachine dimensions (L×W×H)mm2400×2200×2800
Machine weightkg3300
Air supply requirementkgf/cm26
Main Powerkw18
A cost-effective CNC machining center 5 axis designed for high-precision, high-productivity manufacturing of complex components across industries such as automotive, aerospace, electronics, mold making, and instrumentation. Supporting advanced 5 axis machining and high-speed operations, it delivers the flexibility expected from modern high speed CNC machining centers.

Key Applications：

  • Multi-Process Integration: This 5 axis machine center supports drilling, reaming, boring, tapping, and milling in a single setup, reducing re-clamping and improving accuracy for efficient multi axis CNC machine applications.
  • Wide Applicability: Ideal for machining medium and small discs, plates, shells, valves, and cams with high positional accuracy, making it a reliable CNC 5 axis machining center for precision industries.
  • Automation & Efficiency: Programmable machining shortens cycle times, reduces manual work, and ensures stable quality in 5 axis high speed machining operations.


Key Features：

  • Five-Axis Capability: Enables multi-face machining in one clamping, delivering the flexibility of a true CNC machining center 5 axis.
  • High-Performance Spindle: Features a durable Taiwanese-made spindle for stable, high-speed cutting.
  • Full Protection Cover: Prevents coolant and chip splashing while maintaining a clean, professional appearance.


Advantages:

    • Improves machining accuracy and productivity
    • Reduces operator workload and production time
    • Suitable for diverse industries and complex part geometries

Get a Quote

Submit your machining requirements for a custom solution proposal within 24 hours.

Get a Quote

Submit your machining requirements for a custom solution proposal within 24 hours.

Why Choose Leichman 5-Axis Machining Solutions?

Leichman delivers reliable and high-precision 5 axis machining solutions backed by advanced equipment, experienced engineering teams, and a strong focus on production efficiency. Our facilities are equipped with modern high speed CNC machining centers, enabling stable, continuous machining for complex components while maintaining consistent quality and tight tolerances.
  • Efficient & High-Speed Machining Capability
Leichman enables efficient 5 axis high speed machining, reducing cycle times and handling complex multi-face parts in a single setup.
  • Flexible Multi-Axis Solutions
With versatile multi axis CNC machine solutions, Leichman can tackle diverse production challenges, from advanced milling to 5 axis mill-turn and 5 axis turning center applications.
  • Professional Engineering Support
Our experienced engineering team offers end-to-end technical support, helping customers optimize processes and fully leverage the performance of their CNC 5 axis machining center.
