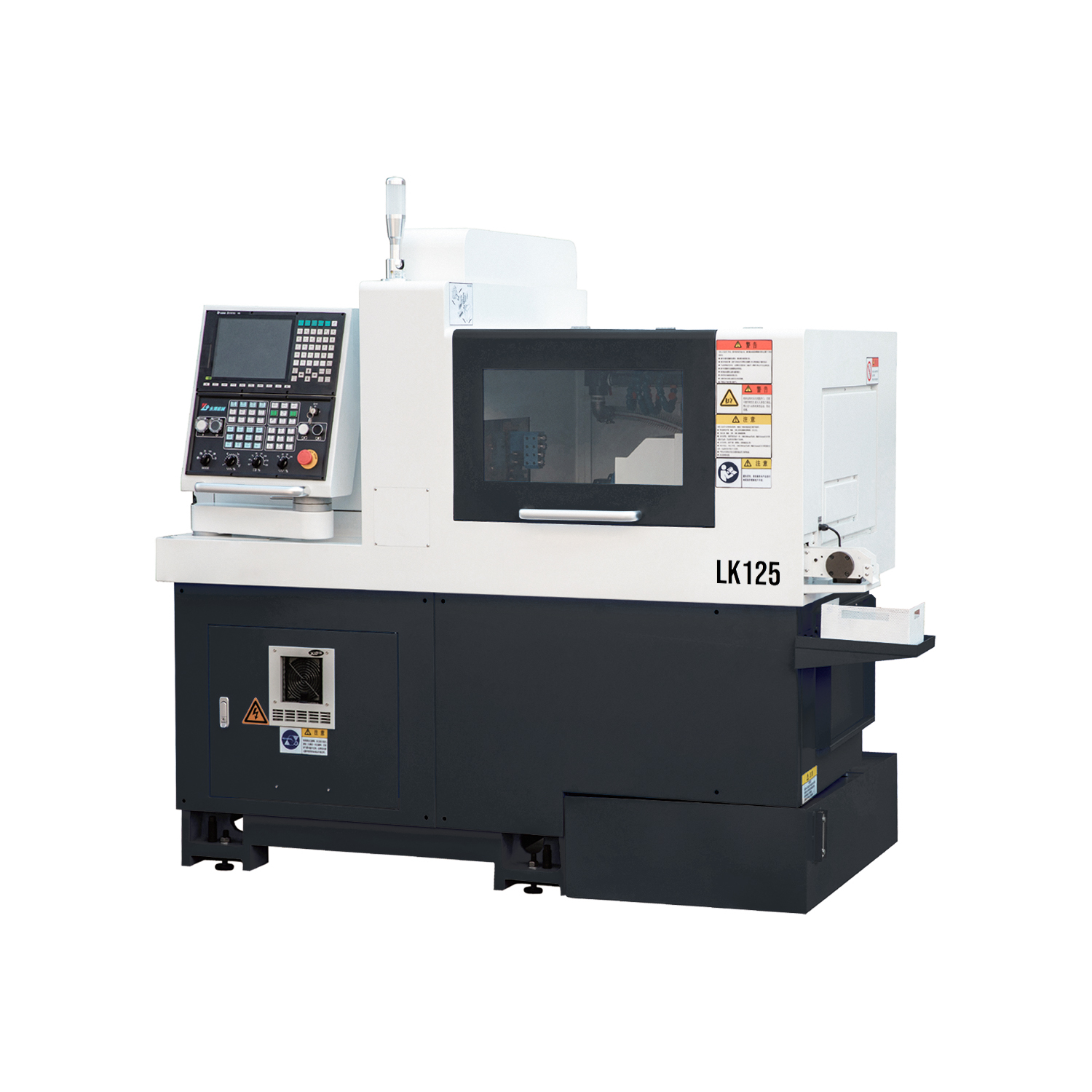

| Specifications | LK125 | ||
| Processing capacity | Max. bar diameter (mm) | Φ12 | |
| Spindle bore diameter (mm) | Φ16 | ||
| Max. machining length (mm) | Without guide bush | 2.5D(Max. 30) | |
| Fixed guide bush | 180 | ||
| Rotary guide bush | 60 | ||
| Back spindle max. clamping diameter (mm) | Φ12 | ||
| Spindle max. drilling diameter (mm) | Φ7 | ||
| spindle max. tapping diameter (mm) | M6 | ||
| Back spindle max. drilling diameter (mm) | Φ7 | ||
| Back spindle max. tapping diameter(mm) | M6 | ||
| Radial live tool max. drilling diameter (mm) | Φ6 | ||
| Radial live tool max. thread diameter (mm) | M5 | ||
| Mechanical capacity | Spindle speed (r/min) | 12000 (rotary guide bush 8000) | |
| Back spindle speed (r/min) | 12000 | ||
| Radial live tool speed (r/min) | 6000 | ||
| Fast moving speed (m/min) | 30(X2、Y1、Z1) | ||
| 24(X1、Z2) | |||
| Spindle runout (mm) | ≤0.002 | ||
| Repeated positioning accuracy | ≤0.003 | ||
| Tool system | O.D. tool | 5(□10) | |
| Axial machining tool | 4(ER11) | ||
| Radial live tool | 4(ER11) | ||
| Back machining tool | 4(ER11) | ||
| Motor power | Main spindle (kw) | 1.5 | |
| Back spindle (kw) | 1.5 | ||
| Linear drive axis (kw) | 0.75 | ||
| Radial live tool (kw) | 0.75 | ||
| Back live tool (kw) | 0.75(optional) | ||
| Cooling pump (kw) | 0.25 | ||
| Machine weight (kg) | 1800 | ||
| Machine dimensions (L × W × H) (mm) | 2100×1100×1700 | ||
CNC controller: Standard Taiwan SYNTEC system, double channel control, high efficiency, high precision. Mitsubishi system can be selected according to customer needs.
High-precision spindle: The spindle bearing of the machine tool adopts imported high-precision angular contact bearings to ensure the high rigidity and durable accuracy of the spindle, and the spindle runout is less than 2μm.
High performance cast iron: stable structural design, high quality Mihanna cast iron (dense cast iron) overall bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: the feed axis is fully servo driven, using imported high-precision lead screw bearings, imported high-precision ball screw guide rails to ensure processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: The bushing mode can be quickly switched between the bushing mode and the without bushing mode to meet the diversified processing requirements.

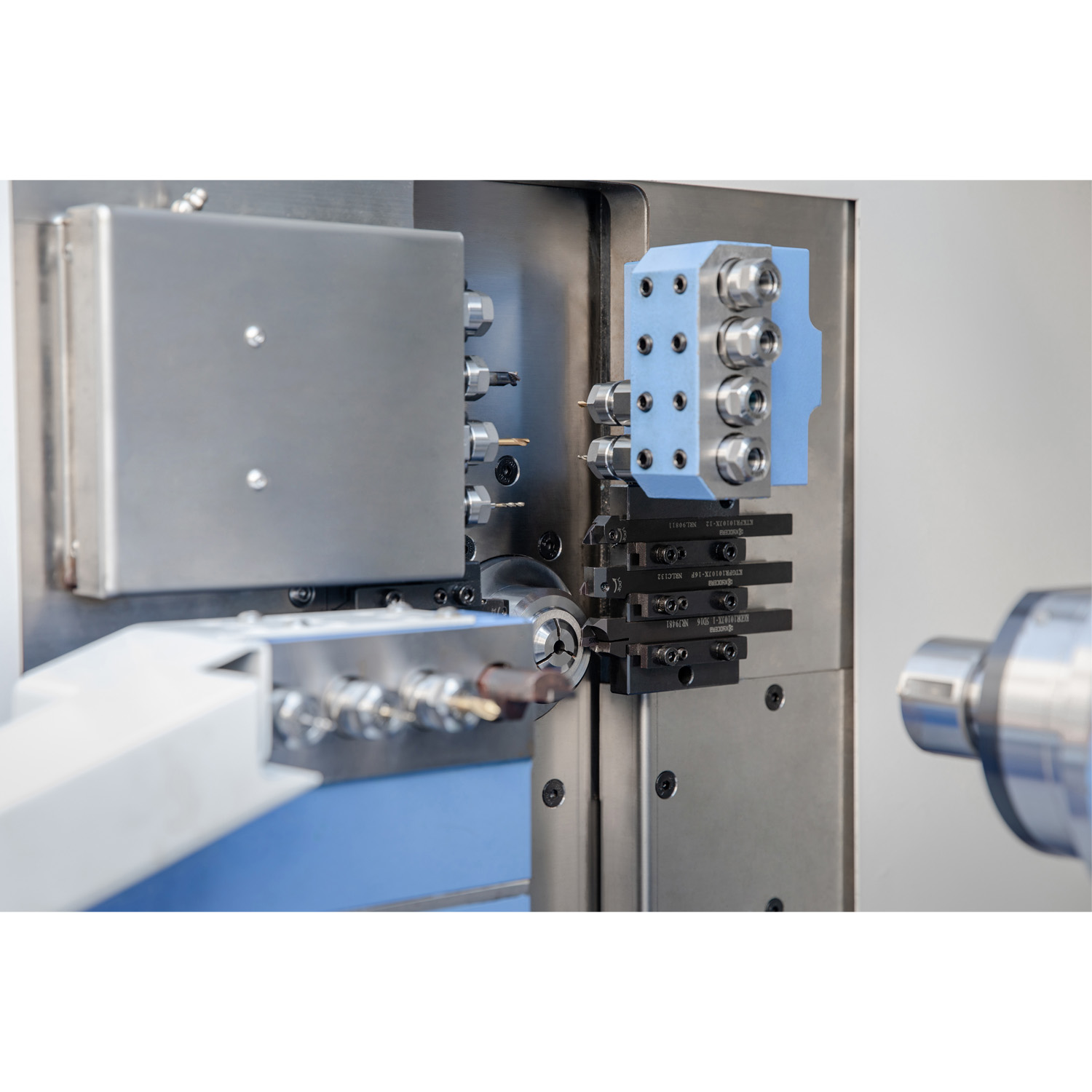

Tool system: The machine adopts vertical double row tool structure, compact structure, quick tool change. Equipped with radial live tool, it can meet the complex machining needs of complex turning, milling, drilling and other processes.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
| Main standard configuration | |
| Fixed guide bush | Liquid level detector switch |
| Without guide bush device | External handwheel |
| Radial live tool device | Spindle oil cooler |
| Back spindle front blanking device | LED lighting device |
| Part transfer unit | LED three-color alarm light |
| Main NC functions | Main optional accessories |
| SYNTEC 10.4-inch dual channel system | Rotary guide bush device |
| Absolute position servo | High-pressure cooling unit |
| Bus communication | Oil mist collector |
| Hand wheel simulation | Chip cleaner |
| Back spindle synchronous feeding | Back live tool |
| Live tool rigid tapping | Long cutting attachment |
| C1/C2 axis coupling | Safety lock |
| Z1/Z2 axis coupling | Mitsubishi system |
| Torque detection | |
| Cut off detection (software type) | |
Submit your machining requirements for a custom solution proposal within 24 hours.
CNC controller: Standard Taiwan SYNTEC system, double channel control, high efficiency, high precision. Mitsubishi system can be selected according to customer needs.
High-precision spindle: The spindle bearing of the machine tool adopts imported high-precision angular contact bearings to ensure the high rigidity and durable accuracy of the spindle, and the spindle runout is less than 2μm.
High performance cast iron: stable structural design, high quality Mihanna cast iron (dense cast iron) overall bed and drag plate, after aging treatment, strong rigidity, good stability.
High-precision feed: the feed axis is fully servo driven, using imported high-precision lead screw bearings, imported high-precision ball screw guide rails to ensure processing accuracy and long-term accuracy, repeated positioning accuracy of each feed axis ≤3μm.
Bushing structure: The bushing mode can be quickly switched between the bushing mode and the without bushing mode to meet the diversified processing requirements.
Tool system: The machine adopts vertical double row tool structure, compact structure, quick tool change. Equipped with radial live tool, it can meet the complex machining needs of complex turning, milling, drilling and other processes.
Automation: Through the configuration of automatic feeder, automatic continuous processing can be realized.
Application: Widely used in communication, electronics, automotive, pneumatic and hydraulic, medical, instrumentation, aviation and other industries of complex, small, precise, slender shaft parts processing.
| Main standard configuration | |
| Fixed guide bush | Liquid level detector switch |
| Without guide bush device | External handwheel |
| Radial live tool device | Spindle oil cooler |
| Back spindle front blanking device | LED lighting device |
| Part transfer unit | LED three-color alarm light |
| Main NC functions | Main optional accessories |
| SYNTEC 10.4-inch dual channel system | Rotary guide bush device |
| Absolute position servo | High-pressure cooling unit |
| Bus communication | Oil mist collector |
| Hand wheel simulation | Chip cleaner |
| Back spindle synchronous feeding | Back live tool |
| Live tool rigid tapping | Long cutting attachment |
| C1/C2 axis coupling | Safety lock |
| Z1/Z2 axis coupling | Mitsubishi system |
| Torque detection | |
| Cut off detection (software type) | |
