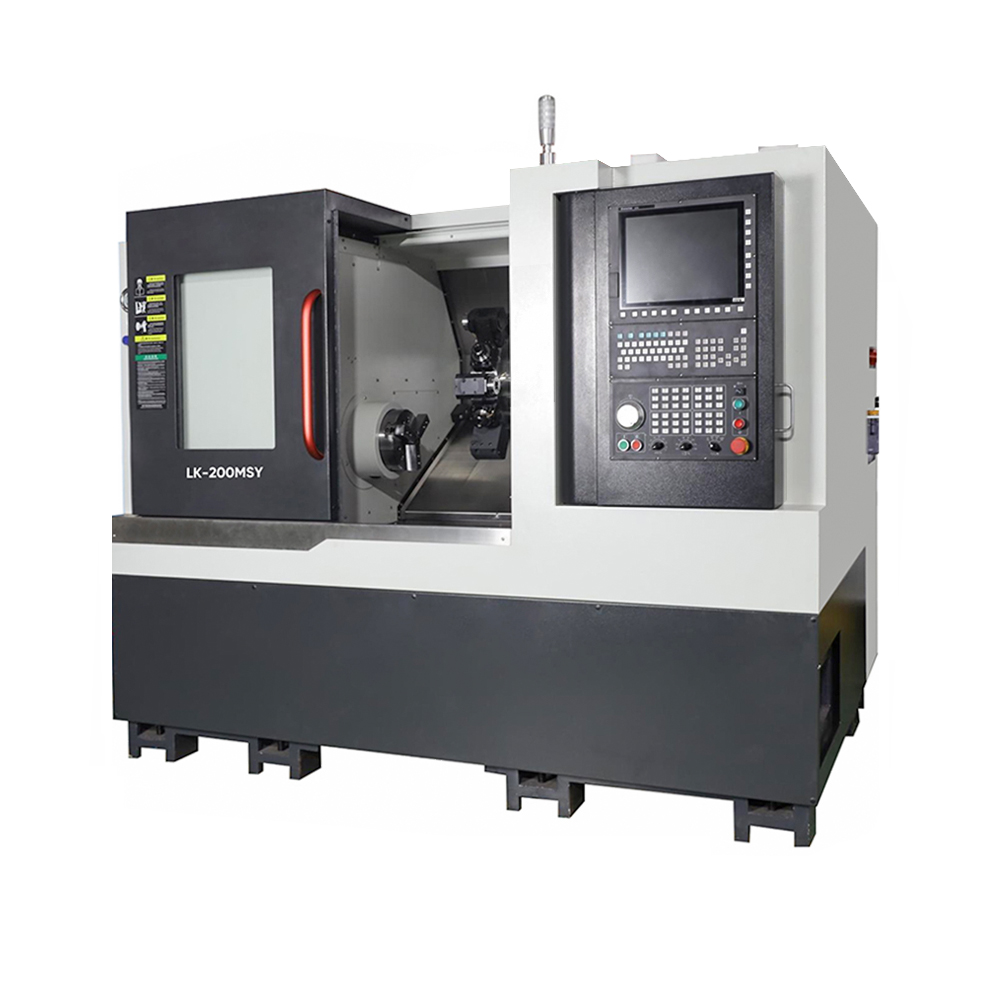

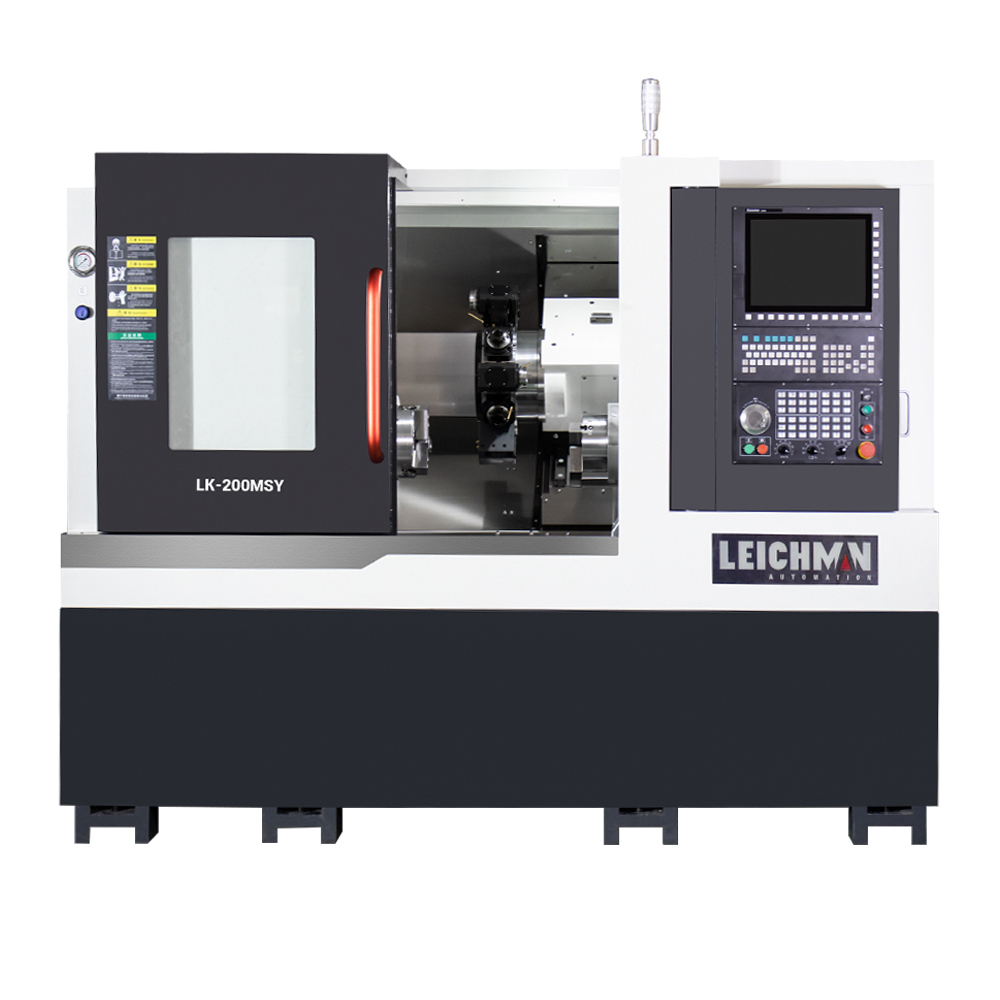

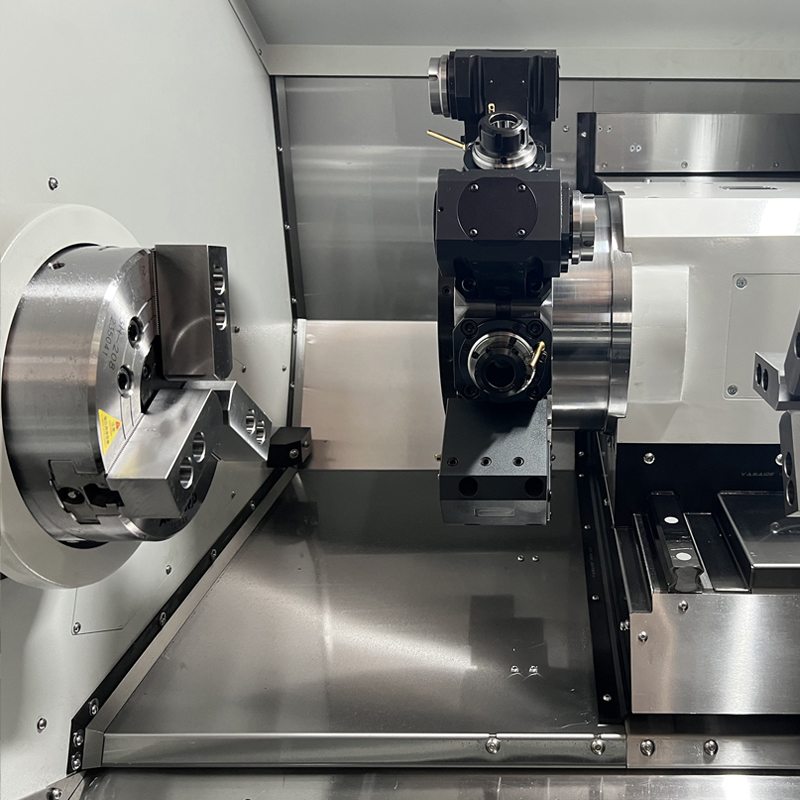

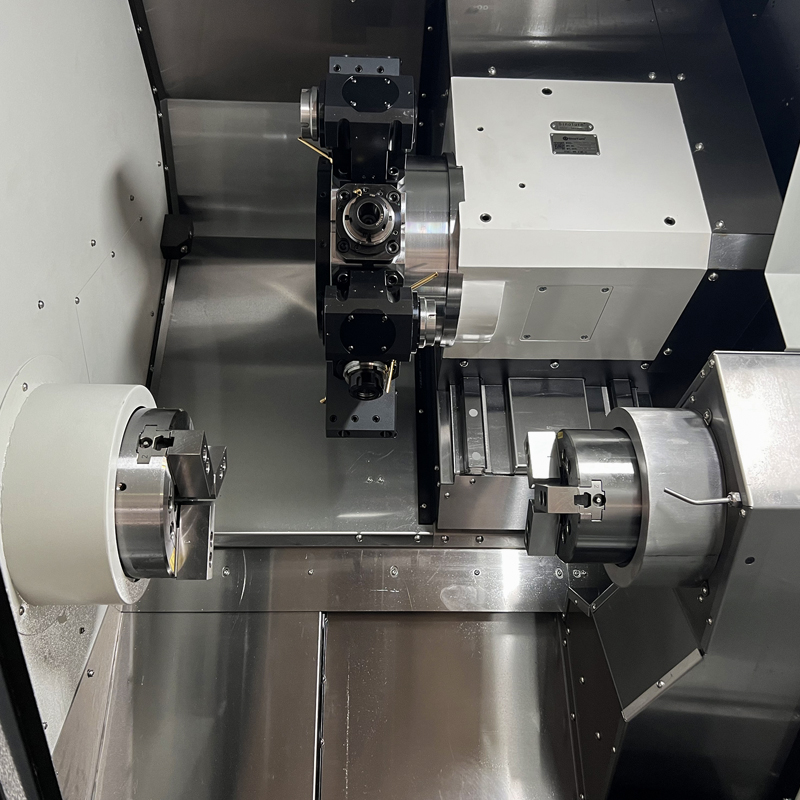

LK-200MSY CNC Turning and Milling Lathe is a high-performance double spindle CNC machine. The machine employs a twin spindle lathe structure, supporting automatic machining on both the forward and reverse ends, enabling high-efficiency, high-precision continuous production.

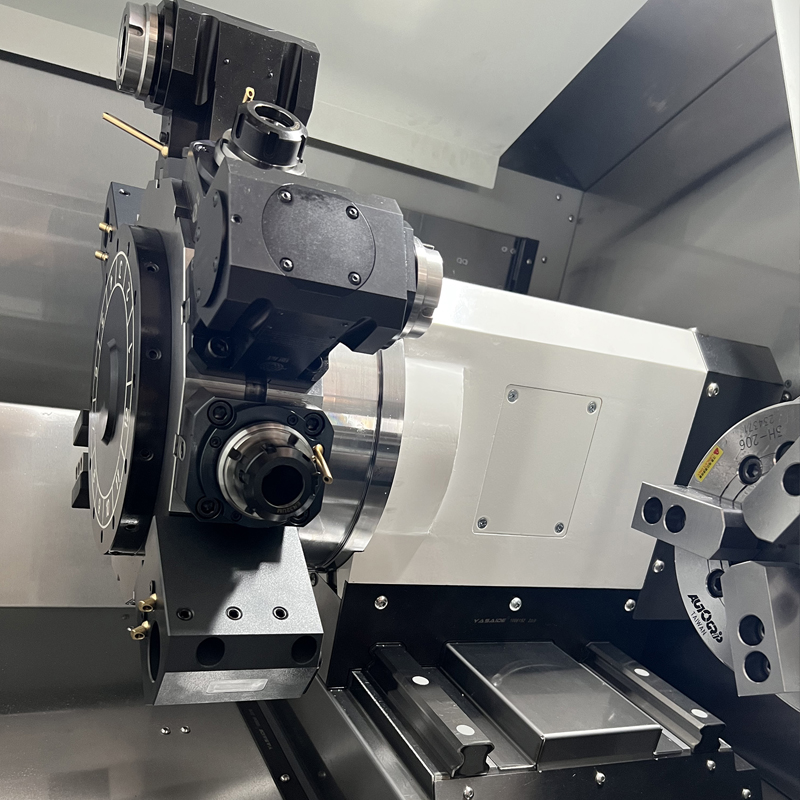

It deals for high-efficiency machining of small-to-medium precision parts in industries12-station BT55 servo-powered turret with servo motor indexing.
| Specifications | Unit | LK-200MSY | |
| Capacity | Max. swing over bed | mm | 700 |
| Max. machining diameter | mm | 350 | |
| Max. machining length | mm | 530 | |
| Travel | X axis travel | mm | 210 |
| Y axis travel | mm | ±50 | |
| Z axis travel | mm | 600 | |
| Accuracy | Spindle runout | mm | 0.003 |
| X/Y/Z/axis positioning accuracy | – | X: 0.004 Z:0.006 | |
| X/Y/Z/axis repositioning accuracy | – | X: 0.002 Z:0.004 | |
| Spindle indexing positioning accuracy | mm | ±0.001° | |
| Main Spindle (Electric Spindle) | Spindle speed | rpm | Max. 4000 |
| Chuck diameter | inch | 8 | |
| Spindle nose | – | A2-6 | |
| Spindle bore | mm | 66 | |
| Max. bar diameter | mm | 52 | |
| Turret | Type | – | BT55 12-positionPowered Turret |

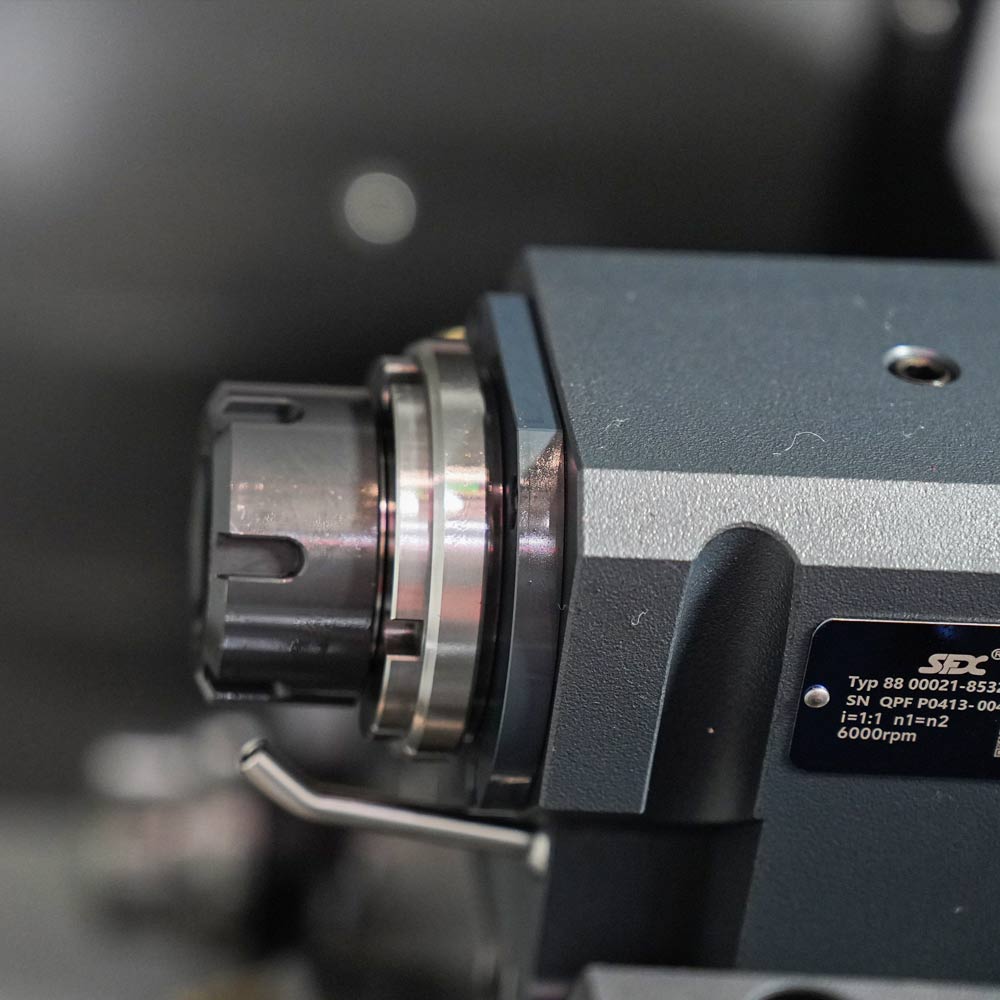

| Power head speed | rpm | Max. 6000 | |
| Outer shank diameter | mm | 25 | |
| Inner shank diameter | mm | 40 | |
| Sub-spindle (Electric Spindle) | Spindle nose | – | A2-5 |
| Chuck diameter | inch | 6’’ | |
| Spindle bore | mm | 56 | |
| Max. bar diameter | mm | 45 | |
| Spindle speed | rpm | Max. 6000 | |
| Rapid Speed | X axis rapid speed | m/min | 30 |
| Y axis rapid speed | m/min | 12 | |
| Z axis rapid speed | m/min | 30 | |
| Motor Power | Electric main spindle | kW | 18.5 |
| X axis servo motor | kW | 2.4 | |
| Z axis servo motor | kW | 2.4 | |
| Y axis servo motor | kW | 2.4 | |
| Milling motor | kW | 5.5 | |
| Sub-spindle | kW | 10.5 | |
| Others | Machine size (L×W×H) | mm | 2540×1810×1850 |
| Net weight | kg | 4600 | |
A self-developed high-performance double spindle machine by Leichman, designed for efficient precision machining of small and medium-sized parts in industries such as automotive, electronics, aerospace, medical devices, and instrumentation.
Key Features:
Submit your machining requirements for a custom solution proposal within 24 hours.
A self-developed high-performance double spindle machine by Leichman, designed for efficient precision machining of small and medium-sized parts in industries such as automotive, electronics, aerospace, medical devices, and instrumentation.
Key Features:
| Feature | Single Spindle Machine | Double Spindle Machine |
| Spindles | 1 | 2 |
| Efficiency | Standard | Very high |
| Best For | General machining, flexible production | Mass production, two-sided machining |
| Accuracy | High | Higher (due to fewer re-clamp operations) |
| Cost | Lower | Higher |
Double spindle CNC machines enable two-sided machining and high-efficiency production by using two coordinated spindles. This includes configurations such as a double spindle machining center, double spindle CNC lathe, twin spindle lathe, and double spindle CNC turning machine, all designed for higher throughput and reduced cycle times.
In contrast, single-spindle machines, including standard CNC lathes, vertical machining centers, and 5-axis machining centers, remain the mainstream choice offered by many CNC milling manufacturers, CNC turning manufacturers, or CNC turn mill center manufacturers, providing strong flexibility and precision for general-purpose machining.
Both machine structures serve different production needs, balancing flexibility, accuracy, and overall productivity.
