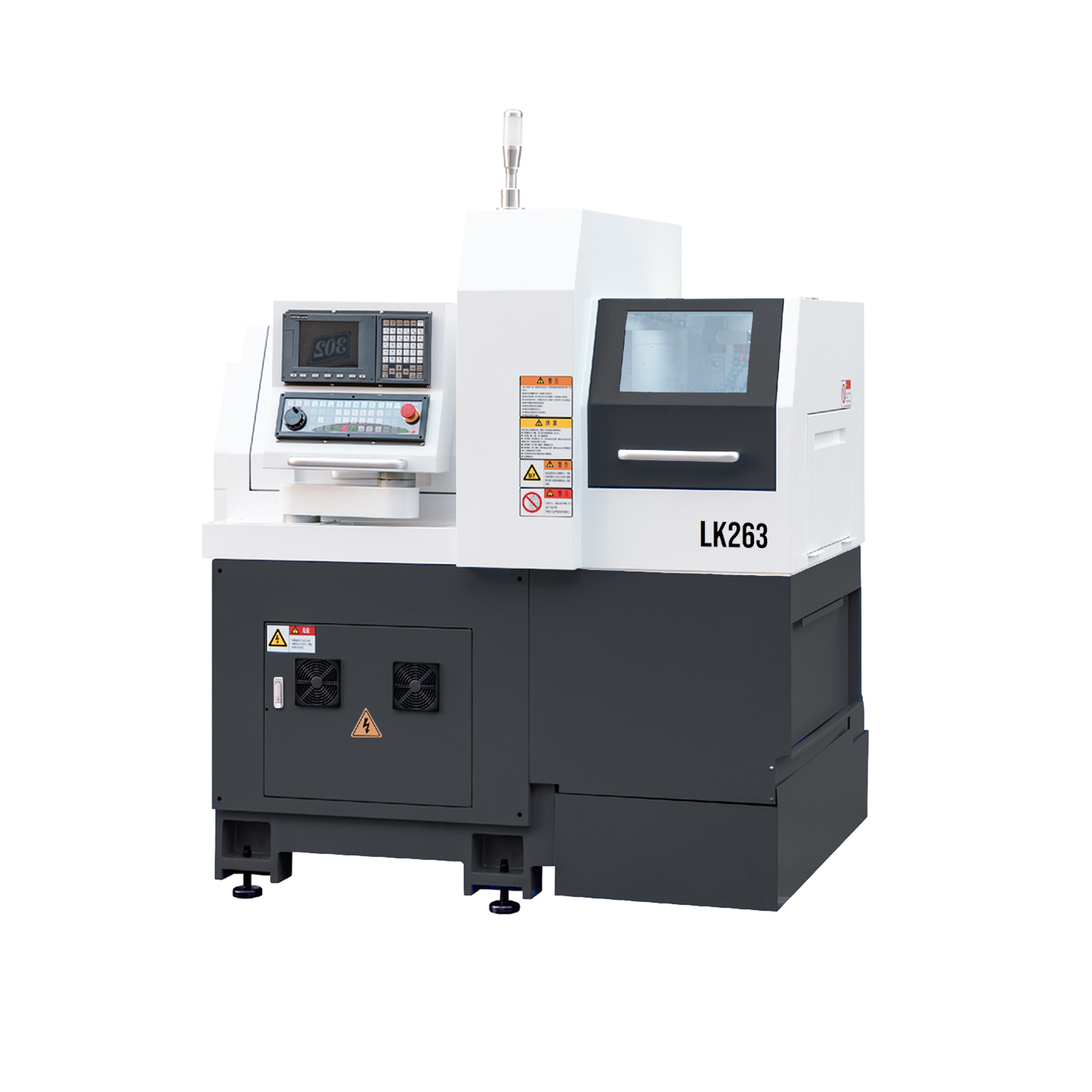

| Specifications | LK263 | ||
| Processing capacity | Max. bar diameter (mm) | Φ26 | |
| Spindle bore diameter (mm) | Φ30 | ||
| Max. machining length (mm) | Guide bush less | 2.5D(Max.50) | |
| Fixed guide bush | 220 | ||
| Rotary guide bush | 180(Optional) | ||
| Spindle max. drilling diameter (mm) | Φ10 | ||
| Spindle max. tapping diameter | M10 | ||
| Radial live tool max. drilling diameter (mm) | Φ8 | ||
| Radial live tool max. thread diameter | M6 | ||
| Mechanical capacity | Spindle speed (r/min) | 10000 (rotary guide bush 8000) | |
| Radial live tool speed (r/min) | 6000 | ||
| Fast moving speed (m/min) | 24(Y1、Z1) | ||
| 20(X1) | |||
| Spindle runout (mm) | ≤0.002 | ||
| Repeated positioning accuracy | ≤0.003 | ||
| Tool system | O.D.tool | 1(□16)+5(□12) | |
| Axial machining tool | 4(ER16) | ||
| Radial live tool | 2(ER11)+2(ER16) | ||
| Motor power | Main spindle (kw) | 4.2 | |
| Linear drive axis (kw) | 1 | ||
| Radial live tool (kw) | 1 | ||
| Cooling pump (kw) | 0.22 | ||
| Machine weight (kg) | 1800 | ||
| Machine dimensions (L × W × H) (mm) | 1700×1300×1800 | ||
CNC controller: The machine is equipped with standard Taiwan SYNTEC system , which offers high efficiency, high precision, and excellent cost-effectiveness.
High-Precision Spindle:The machine features a high-precision oil-cooled electric spindle. The spindle bearings are made of imported high-precision angular contact bearings, ensuring high rigidity and long-term precision retention. The spindle runout is controlled within ≤2μm .
High-Performance Cast Iron: The machine has stable structural design, with whole bed and pallet made from high-quality Meehanite cast iron (also known as dense-baked cast iron),which ensures strong rigidity and excellent stability.
High-Precision Feed System: All feed axes are driven by full servo motors, utilizing imported high-precision guide screws and bearings, as well as high-precision screw guideway to ensure machining precision and long-term precision retention, with repeat positioning accuracy of the feed axes controlled within ≤3μm.
Guide bush Structure: The machine allows for quick switching between guide bush mode and guide bush less mode to meet diverse machining requirements.

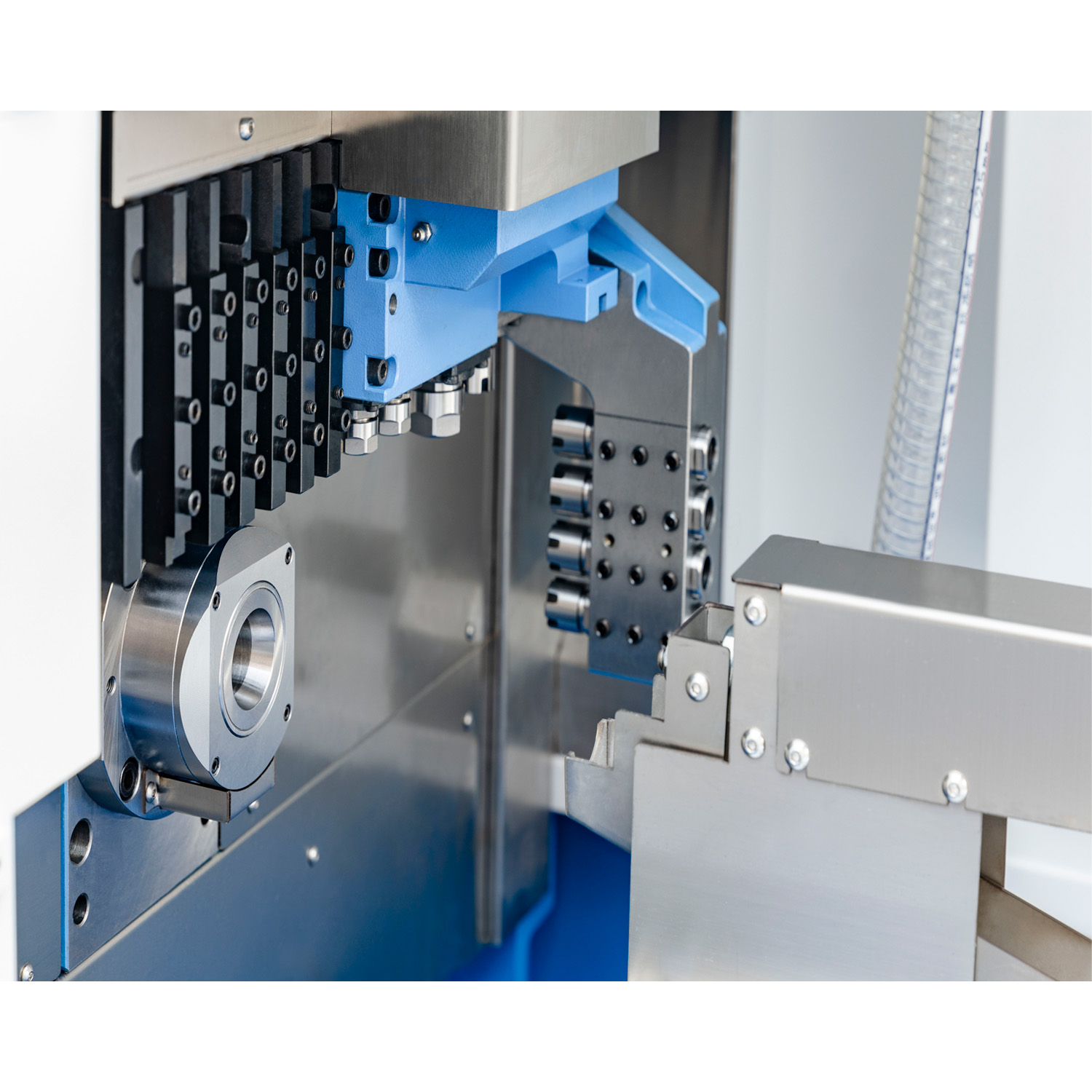

Tooling System: The machine features a horizontal linear tool layout structure, which ensures smooth chip evacuation and a compact design. It is equipped with radial power tools and spindle indexing functions. The versatile tooling system can handle complex machining operations such as turning, milling, and drilling. A wide variety of power tools can be selected based on customer workpiece requirements.
Automation: The machine can be equipped with an automatic bar feeder to achieve continuous automated machining.
Applications: The machine is widely used in industries such as telecommunications, electronics, automotive, pneumatics and hydraulics, medical, instrumentation, and aerospace for the machining of complex, small, precision, and slender shaft parts.
| Main standard configuration | |
| Fixed guide bush | Material receiving device |
| Guide bush less device | Cutting oil device |
| Servo electro-spindle | Automatic lubrication device |
| Spindle cooling device | LED lighting device |
| Radial live tool device | LED three-color alarm light |
| Main NC functions | Main optional accessories |
| SYNTEC 8.4-inch high-precision system | Rotary guide bush device |
| Absolute position servo | High-pressure cooling unit |
| Bus communication | Oil mist collector |
| Hand wheel simulation | Chip conveyor |
| Power Tool Rigid Tapping | Various driven tools (Refer to optional equipment diagram) |
| Torque detection | Flow detection switch |
| Cut-off detection (mechanical) | |
| Long material receiving device | |
| Safety lock | |
