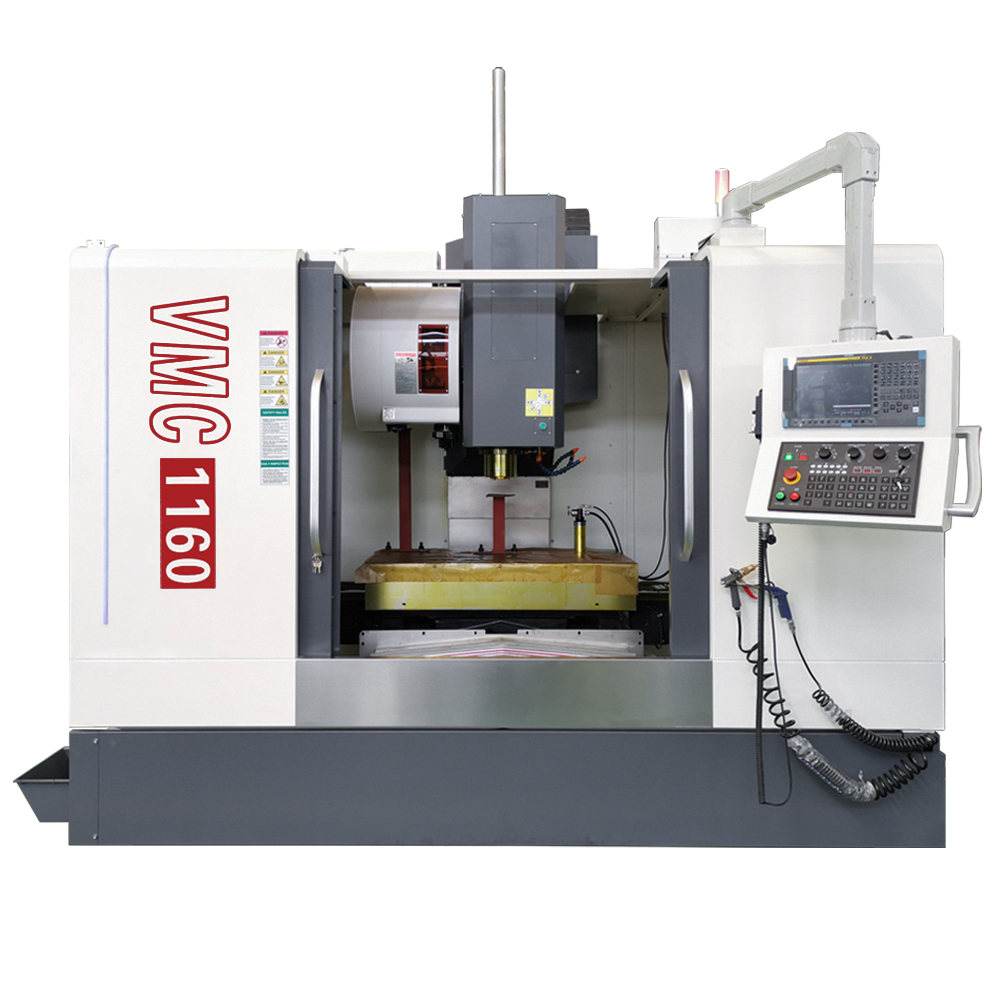

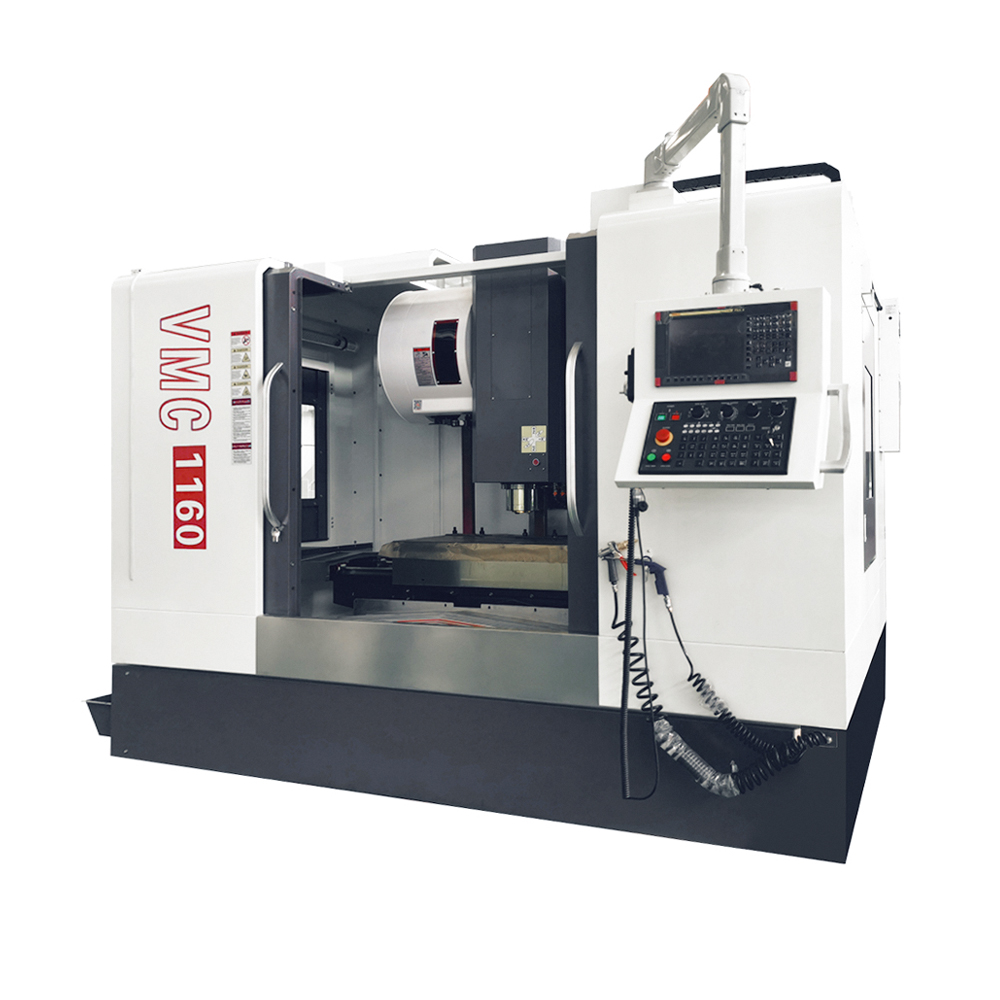

| Specification | Unit | VMC 1160 |
| Table size | mm | 1200×600 |
| T slot(N*W*D) | mm | 5/18/100 |
| Table max.loading | kg | 800 |
| ×Y/Z axis travel | mm | 1100/600/600 |
| Distance fom spindle nose to table suface | mm | 120-720 |
| Distance from spindle center to column | mm | 650 |
| Spindle type | – | BT40φ150 |
| Spindle motor | kw | 11/15 |
| Spindle speed | rpm | 8000(OPT.12000) |
| Rapid moving speed | m/min | 32/32/30 |
| Cutting feed | mm/min | 1-10000 |
| Positioning precision | mm | ±0.004 |
| Re-positioning precision | mm | ±0.003 |
| Tool magazine type | – | 24T Disc type |
| Max.tool weight | kg | 8 |
| Max.tool length | mm | 300 |
| Max.tool diameter | mm | φ80/150 |
| Tool changing time | sec | 1.55 |
| Overall Size | mm | 3950×2250×2800 |
| Weight | kg | 6600 |

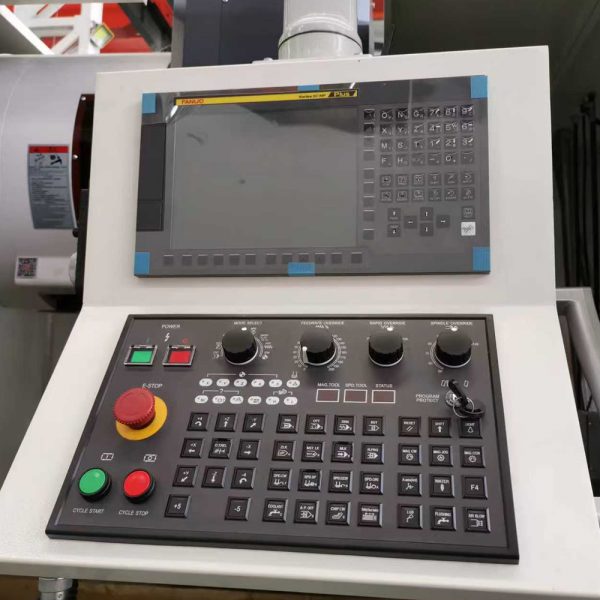

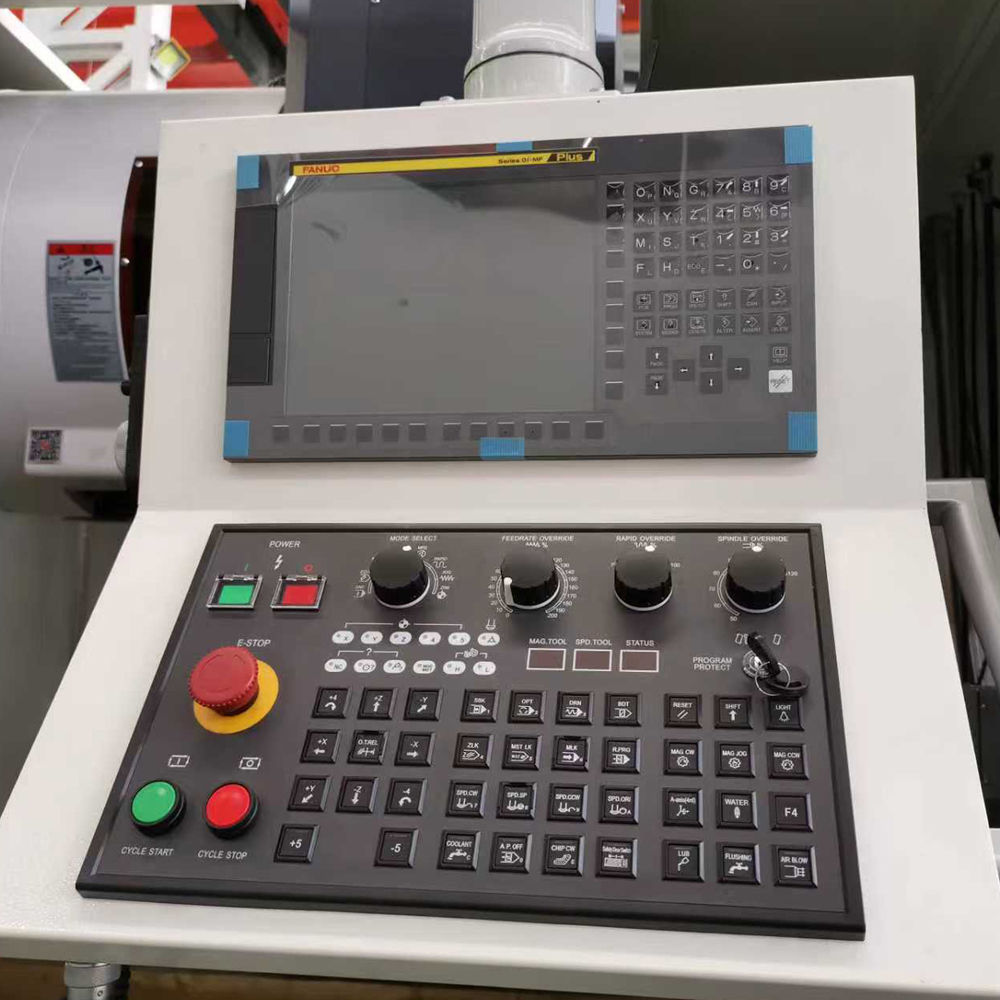

①FANUC Oi MF CNC controller

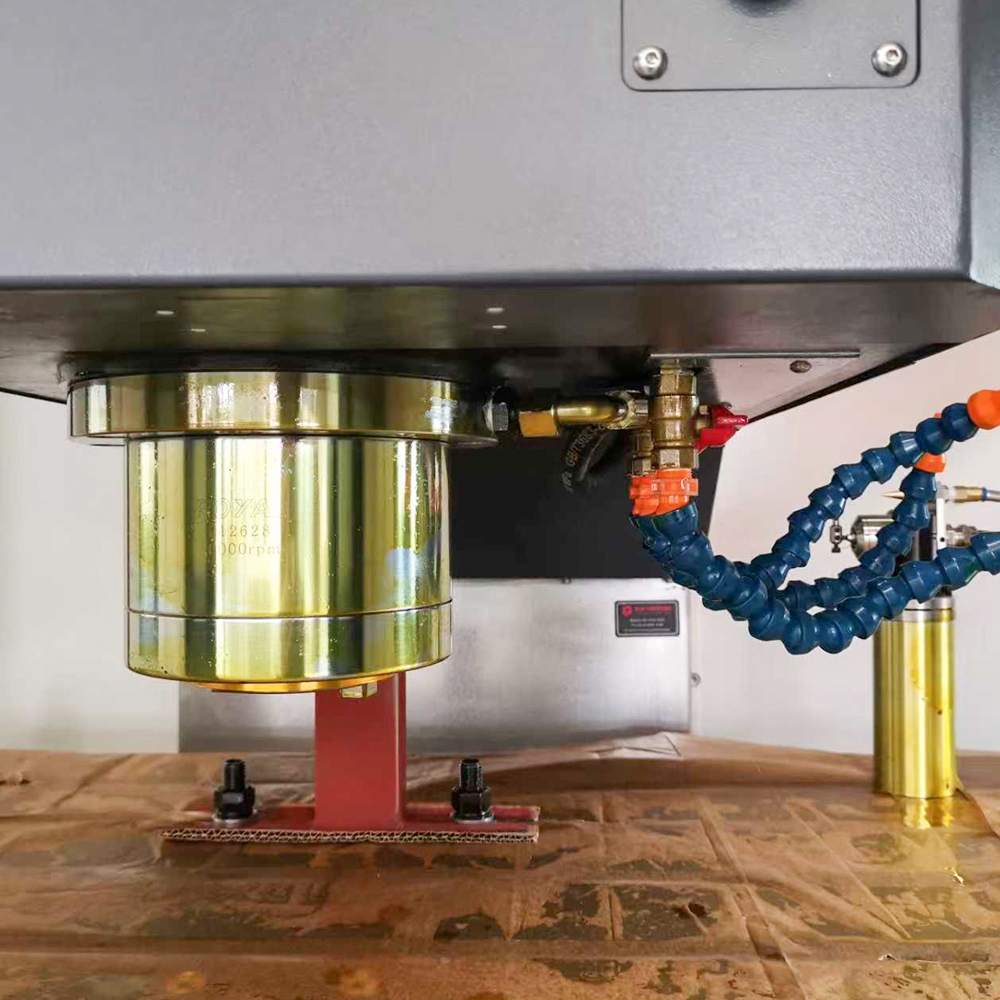

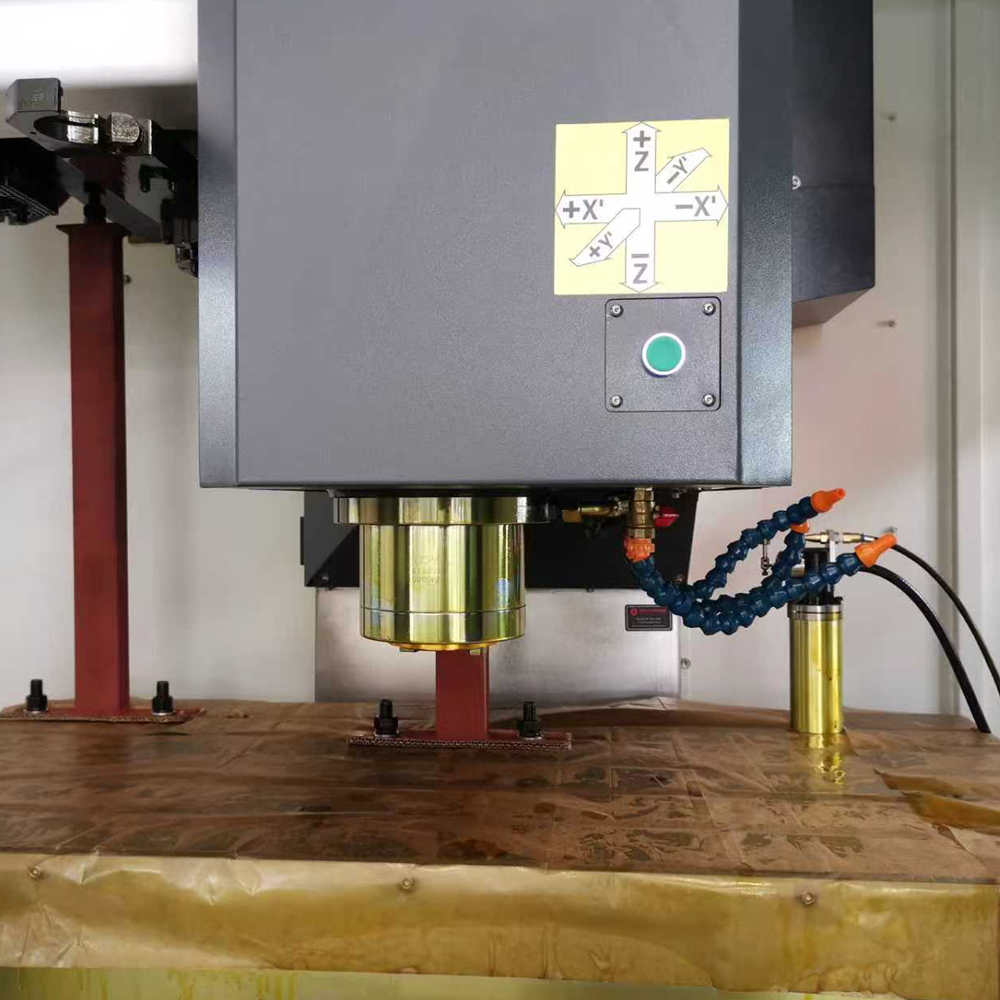

②Taiwan spindle 8000rpm
③Automatic lubrication system
④Cooling system
⑤Working lamp
⑥Three-color Alarm light
⑦Water gun/Air gun
