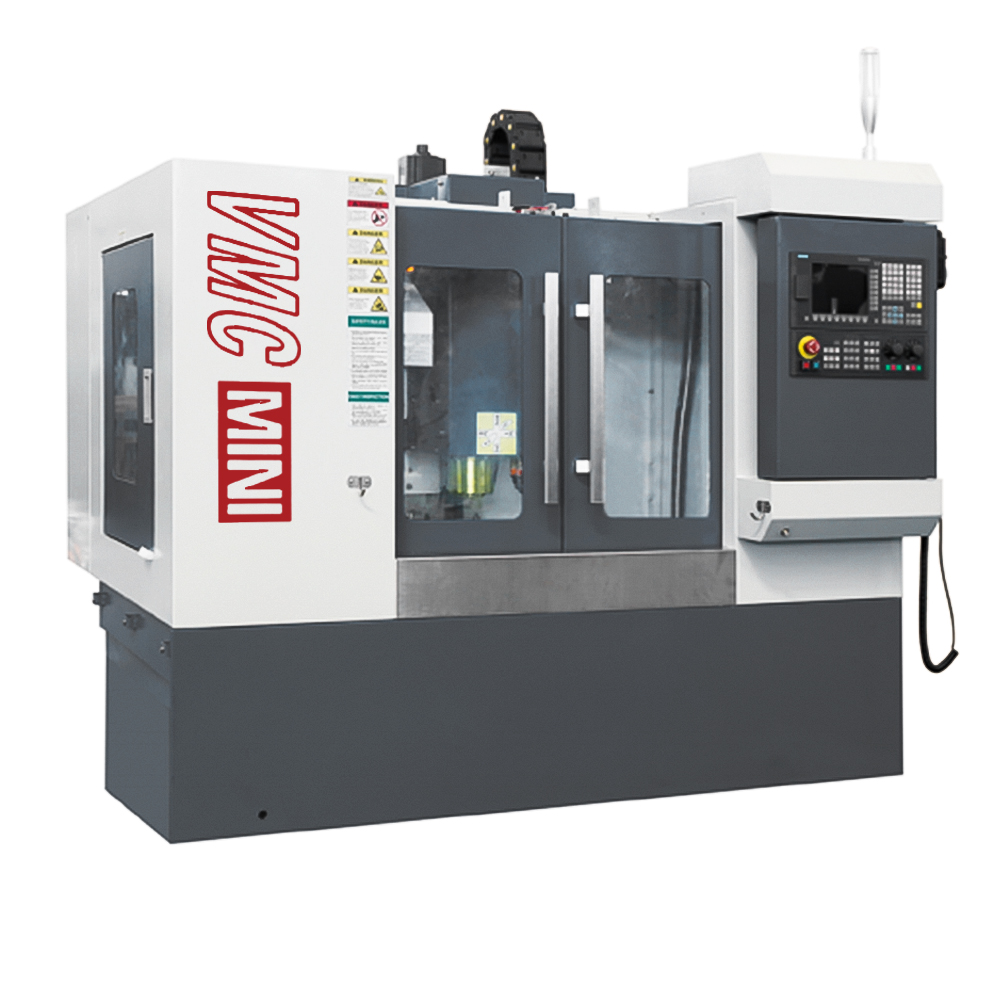

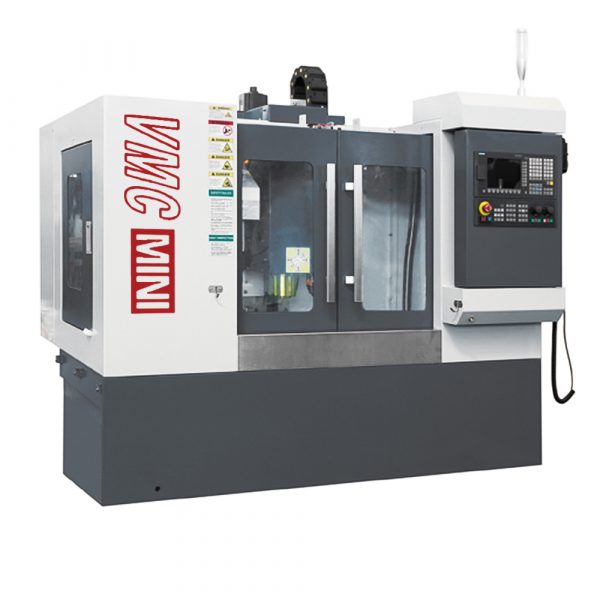

High-performance and compact CNC vertical machining centers are designed for precision machining and small parts production, making them ideal for small parts processing and prototyping.
| Feature | Vertical Machining Center (VMC) | Horizontal Machining Center (HMC) |
| Spindle Orientation | Vertical; suitable for small vertical milling machines, mini vertical machining centers, and high-speed vertical machining centers. | Horizontal; spindle parallel to worktable. |
| Workpiece Setup | Workpiece mounted horizontally on the table; supports small CNC vertical machining centers, mini CNC machining centers, and small CNC vertical milling machines. | Workpiece mounted vertically or horizontally; ideal for large/multi-face parts. |
| Chip Removal | Chips fall naturally due to gravity; easy to maintain. | Requires automatic chip conveyor; better for large batch production. |
| Applications | Ideal for small vertical machining centers for sale, CNC vertical machine centers, and mini machining centers; used in small/medium parts, single-piece or small batch production. | Suitable for large/complex parts, multi-face machining, and high-volume production. |
| Efficiency | High precision and flexible; may require multiple setups for multi-face machining. | High efficiency for multi-face machining; less manual intervention. |
| Cost & Space | Lower cost, compact footprint; suitable for workshops with limited space. | Higher cost, larger footprint; better for automated production lines. |
| Industry Use | Widely used in electronics, automotive, molds, and precision engineering; supplied by reliable CNC vertical machining center manufacturers and CNC vertical milling machine suppliers. | Used in automotive, aerospace, mold making, and heavy machinery. |
| Specification | Unit | VMC mini |
| Table size | mm | 700×260 |
| T slot(N*W*D) | mm | 3/14/80 |
| Table max.loading | kg | 200 |
| ×Y/Z axis travel | mm | 450/260/420 |
| Distance fom spindle nose to table suface | mm | 80-500 |
| Distance from spindle center to column | mm | 330 |
| Spindle type | – | BT40φ120 |
| Spindle motor | kw | 3.7(5.5kw) |
| Spindle speed | rpm | 8000(OPT.12000) |
| Rapid moving speed | m/min | 20/20/16 |
| Cutting feed | mm/min | 1-10000 |
| Positioning precision | mm | ±0.004 |
| Re-positioning precision | mm | ±0.003 |
| Tool magazine type | – | 12T |
| Max.tool weight | kg | 8 |
| Max.tool length | mm | 300 |
| Max.tool diameter | mm | φ100/200 |
| Tool changing time | sec | 1.8 |
| Overall Size | mm | 2130×1600×2250 |
| Weight | kg | 1800 |
①FANUC Oi MF CNC controller
②Taiwan spindle 8000rpm
③Automatic lubrication system
④Cooling system
⑤Working lamp
⑥Three-color Alarm light
⑦Water gun/Air gun
| Feature | Vertical Machining Center (VMC) | Horizontal Machining Center (HMC) |
| Spindle Orientation | Vertical; suitable for small vertical milling machines, mini vertical machining centers, and high-speed vertical machining centers. | Horizontal; spindle parallel to worktable. |
| Workpiece Setup | Workpiece mounted horizontally on the table; supports small CNC vertical machining centers, mini CNC machining centers, and small CNC vertical milling machines. | Workpiece mounted vertically or horizontally; ideal for large/multi-face parts. |
| Chip Removal | Chips fall naturally due to gravity; easy to maintain. | Requires automatic chip conveyor; better for large batch production. |
| Applications | Ideal for small vertical machining centers for sale, CNC vertical machine centers, and mini machining centers; used in small/medium parts, single-piece or small batch production. | Suitable for large/complex parts, multi-face machining, and high-volume production. |
| Efficiency | High precision and flexible; may require multiple setups for multi-face machining. | High efficiency for multi-face machining; less manual intervention. |
| Cost & Space | Lower cost, compact footprint; suitable for workshops with limited space. | Higher cost, larger footprint; better for automated production lines. |
| Industry Use | Widely used in electronics, automotive, molds, and precision engineering; supplied by reliable CNC vertical machining center manufacturers and CNC vertical milling machine suppliers. | Used in automotive, aerospace, mold making, and heavy machinery. |
Submit your machining requirements for a custom solution proposal within 24 hours.
①FANUC Oi MF CNC controller
②Taiwan spindle 8000rpm
③Automatic lubrication system
④Cooling system
⑤Working lamp
⑥Three-color Alarm light
⑦Water gun/Air gun
