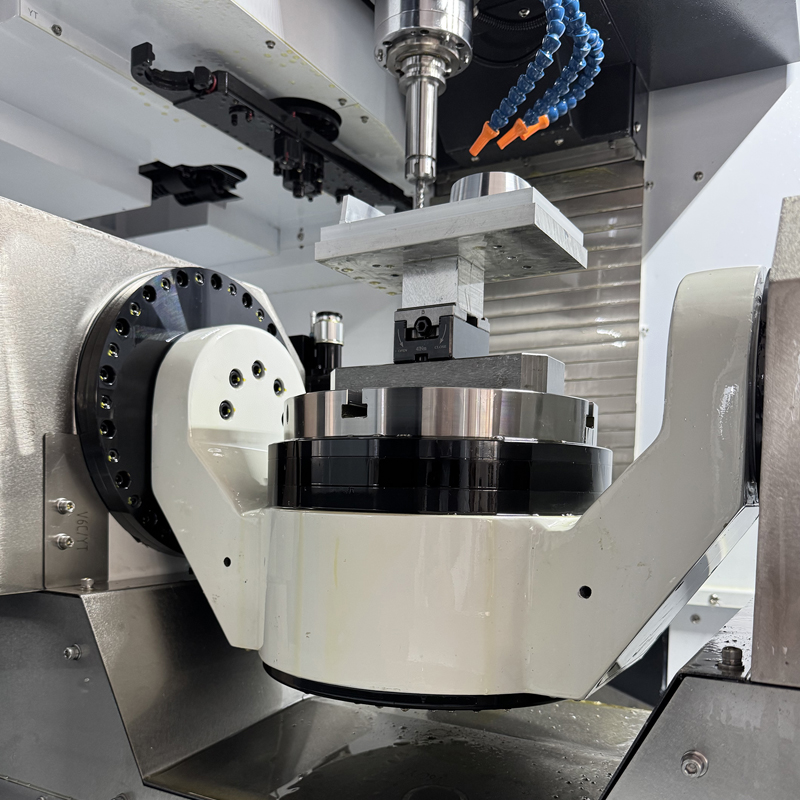

The Leichman LK-380 Five-Axis Machining Center delivers precision multi-axis capabilities for complex component manufacturing. It features synchronized motion control with 500mm X-axis, 510mm Y-axis, and 450mm Z-axis linear travel. The A-axis tilting range of ±110° combined with 360° C-axis rotation enables simultaneous five-sided machining without repositioning.

A 15000rpm BBT40 taper spindle serves as the core power unit, providing 7.5kW rated power and 54N·m maximum torque. This configuration maintains stable cutting performance across diverse materials including aluminum alloys, steel, and composite metals. The arm-type tool magazine holds 24 tools with rapid 3-second changeover capability, supporting tools up to 300mm length and 8kg weight.

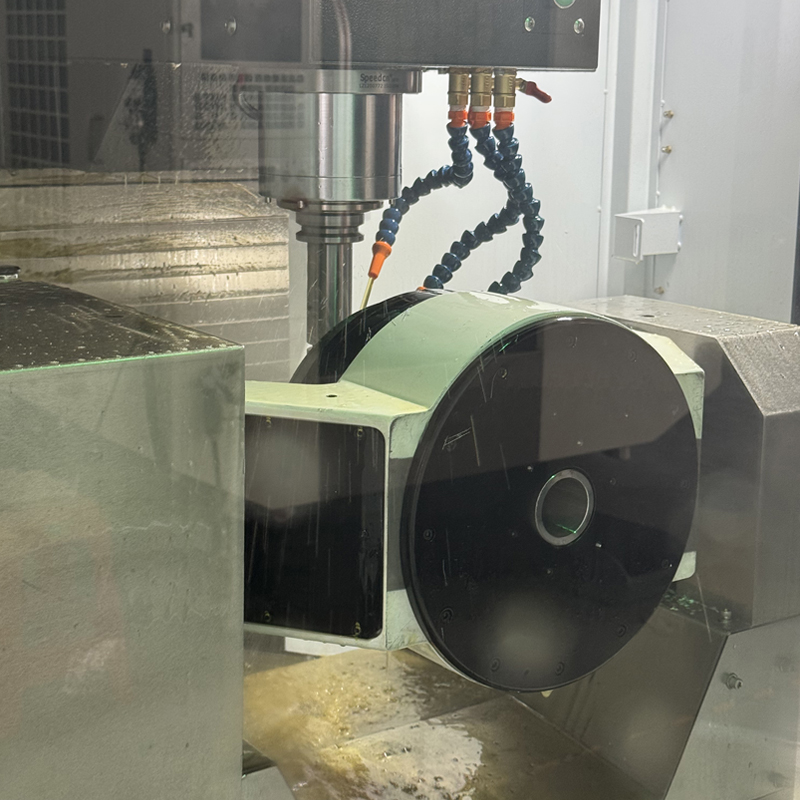

Precision engineering ensures ±0.008mm positioning accuracy on linear axes and 8 arc-second repeatability on rotary axes. All axes achieve rapid traverse speeds of 48m/min, reducing non-productive time during complex operations. The Ø260mm rotary table accommodates workpieces up to 60kg, with adjustable spindle-to-table distance ranging from 37mm to 487mm.

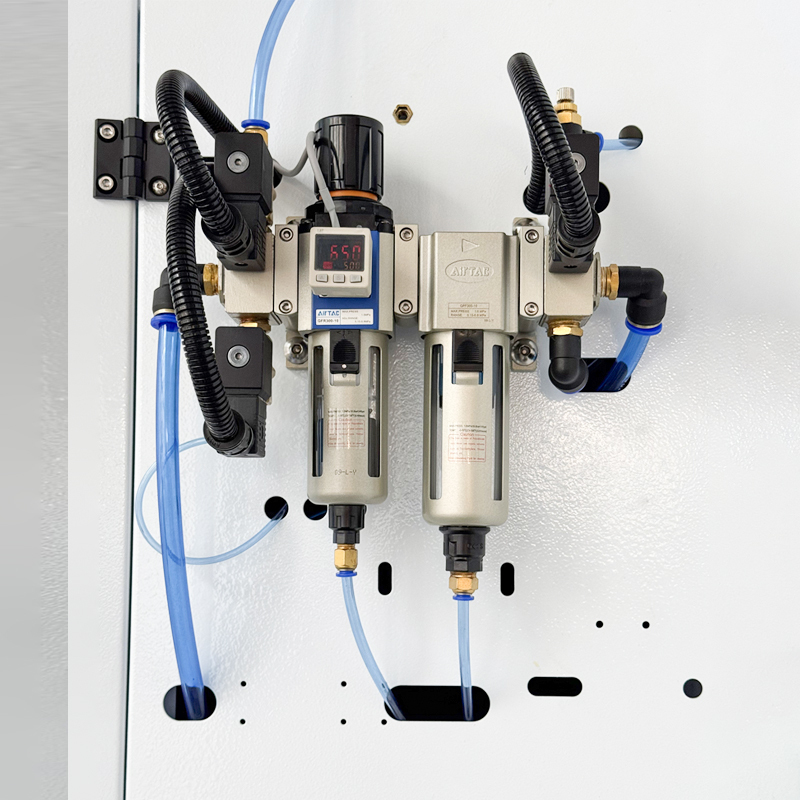

This machine targets precision-driven industries such as aerospace (turbine blades), medical (implants), and automotive (mold cores). Its rigid construction (3500kg weight) and THK roller guideways ensure vibration-free operation during high-speed machining. The 6kgf/cm² air supply requirement integrates with standard workshop utilities.

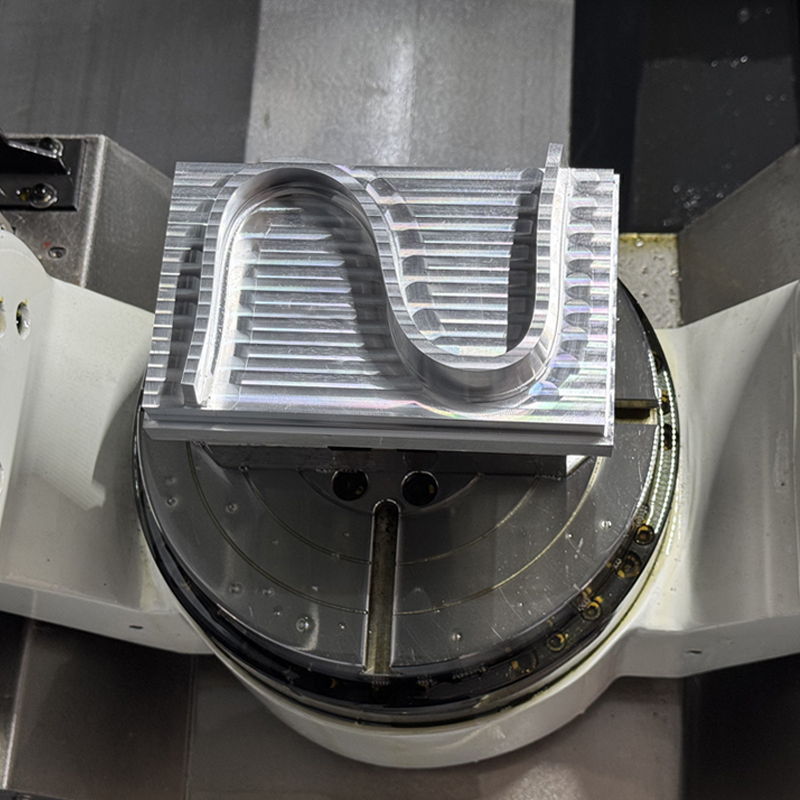

The LK-U380 optimizes production of contoured surfaces, deep-cavity parts, and angled features where conventional machining faces limitations.
