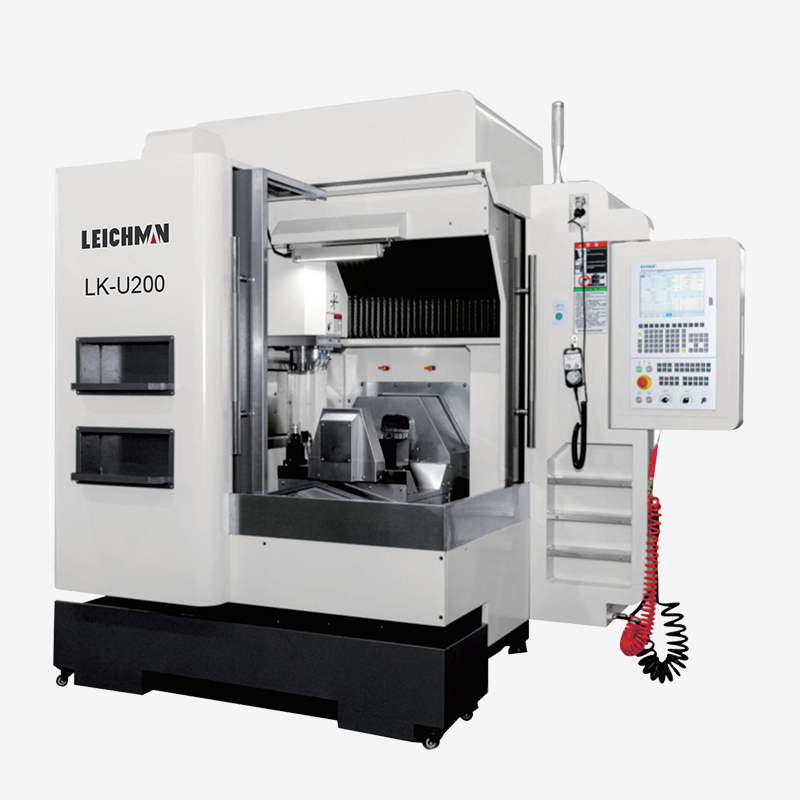

The Leichman LK-U200 Five-Axis Machining Center delivers high-speed precision for complex small to medium components. It features 400mm X-axis, 650mm Y-axis, and 265mm Z-axis linear travel. The +110° A-axis tilting capability combined with 360° C-axis rotation enables simultaneous five-sided machining operations.

A 30000rpm NBT30 taper spindle serves as the core power unit, providing 7.5kW rated power and 10N·m maximum torque. This high-speed configuration is optimized for precision machining of aluminum alloys, plastics, and non-ferrous metals. The D-type servo tool magazine holds 16 tools with 4-second changeover capability, supporting tools up to 220mm length and 4kg weight.

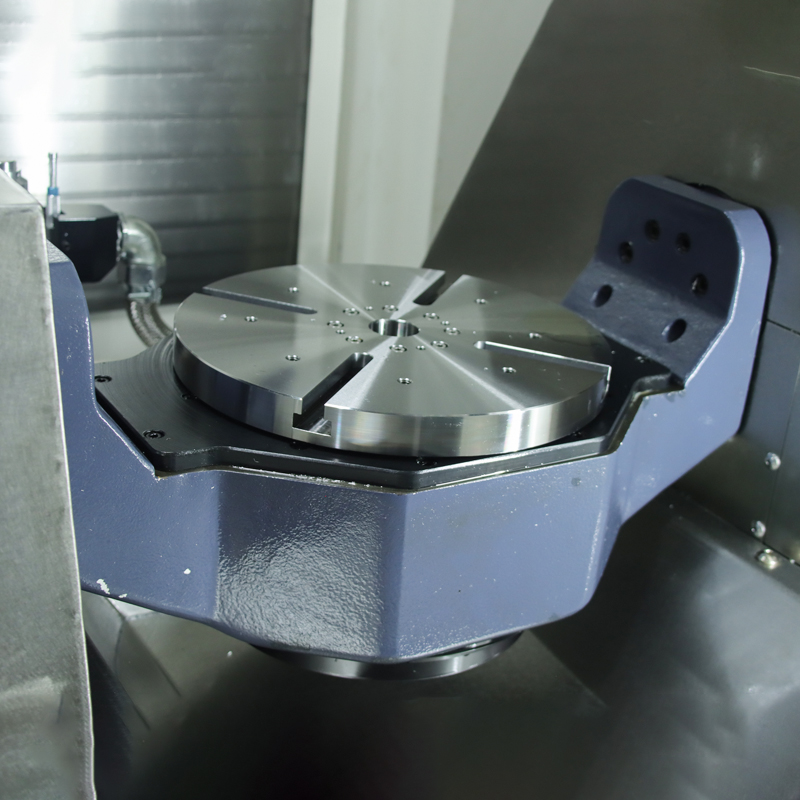

Precision engineering ensures ±0.008mm positioning accuracy on linear axes and 8 arc-second repeatability on rotary axes. All axes achieve rapid traverse speeds of 15m/min. The Ø260mm rotary table accommodates workpieces up to 30kg, with fixed spindle-to-table distance of 340mm.

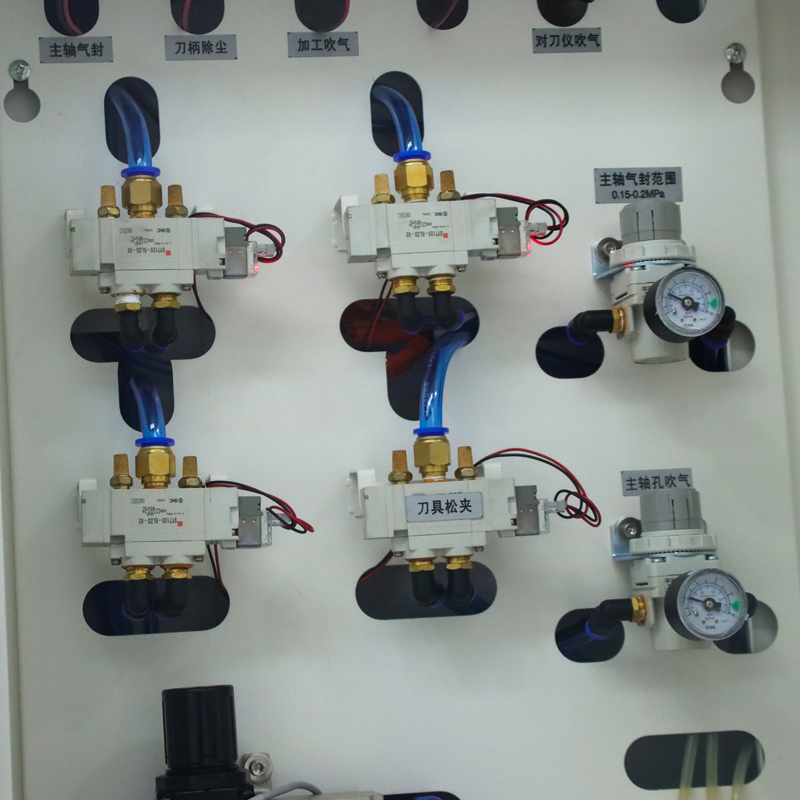

This machine targets precision-focused industries including electronics (connector housings), medical (dental components), and optics (lens mounts). Its compact design (3400kg weight) maintains stability during high-RPM operations. The 6kgf/cm² air supply requirement integrates with standard workshop utilities.

The LK-U200 specializes in intricate contours, micro-features, and high-surface-quality parts where extreme spindle speeds are essential.
