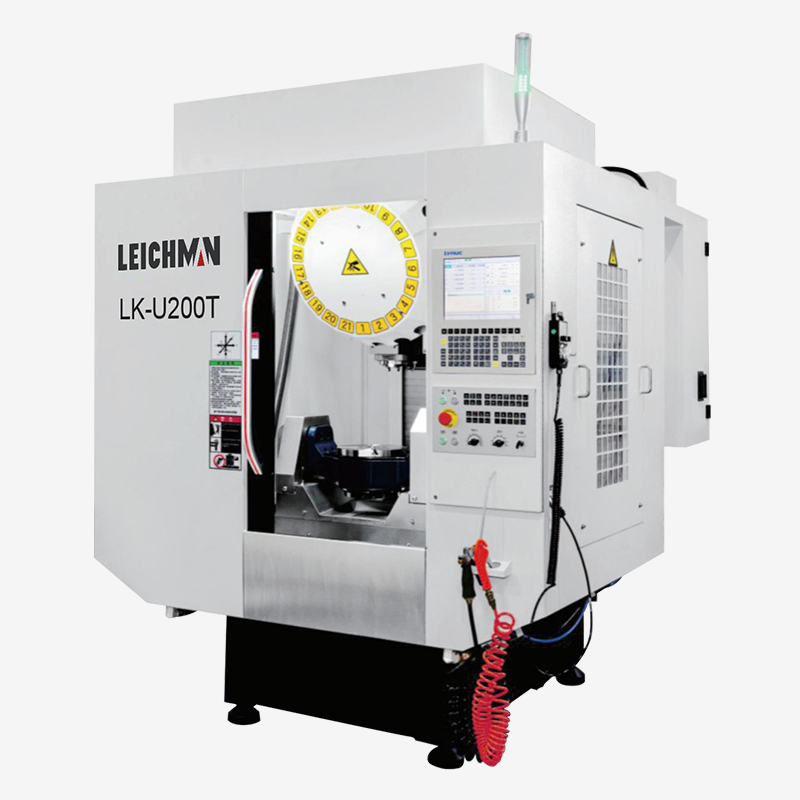

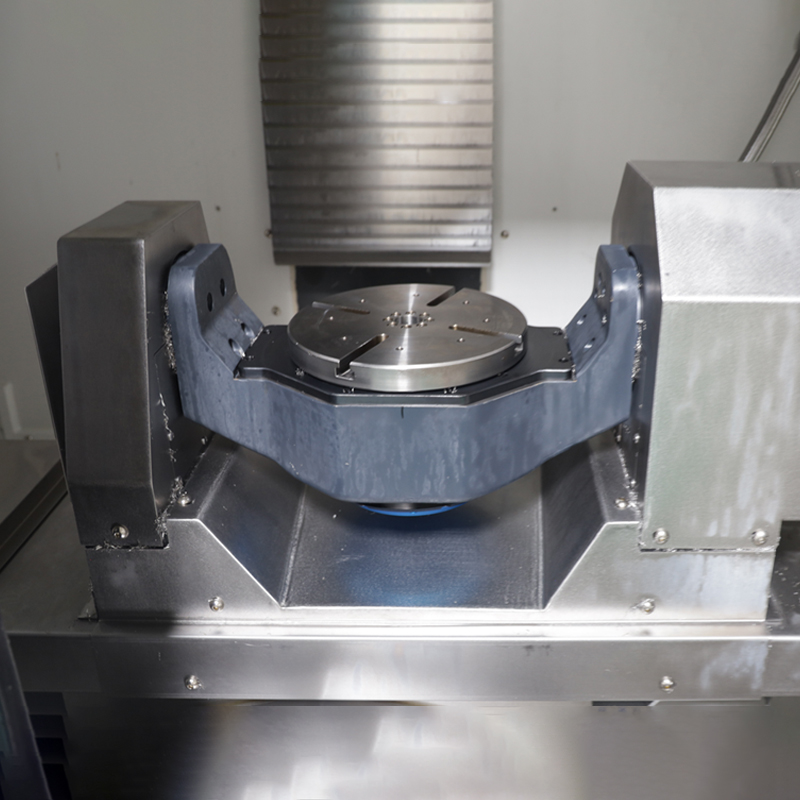

The Leichman LK-U200T Five-Axis Machining Center provides extended travel capabilities for medium-sized precision components. It features 600mm X-axis, 400mm Y-axis, and 330mm Z-axis linear motion. The ±110° A-axis tilting range combined with 360° C-axis rotation enables full five-sided machining.

A 20000rpm BT30 taper spindle delivers 5.5kW rated power and 22N·m maximum torque, suitable for steel, aluminum, and engineering plastics. The clamp-arm servo tool magazine holds 21 tools with 4-second change capability, accommodating tools up to 200mm length and 4kg weight.

Precision specifications include ±0.008mm linear positioning accuracy and 8 arc-second rotary axis repeatability. All axes achieve 48m/min rapid traverse speeds. The Ø260mm rotary table supports workpieces up to 60kg, with 400mm fixed spindle-to-table distance.

This model targets medical (surgical instruments), electronics (housing frames), and mold (inserts) industries. Its 3300kg cast iron construction ensures stability during heavy cutting operations. Standard 6kgf/cm² air supply integrates with workshop utilities.

The LK-U200T excels in elongated components requiring extended X-axis travel and five-axis contouring capabilities.
