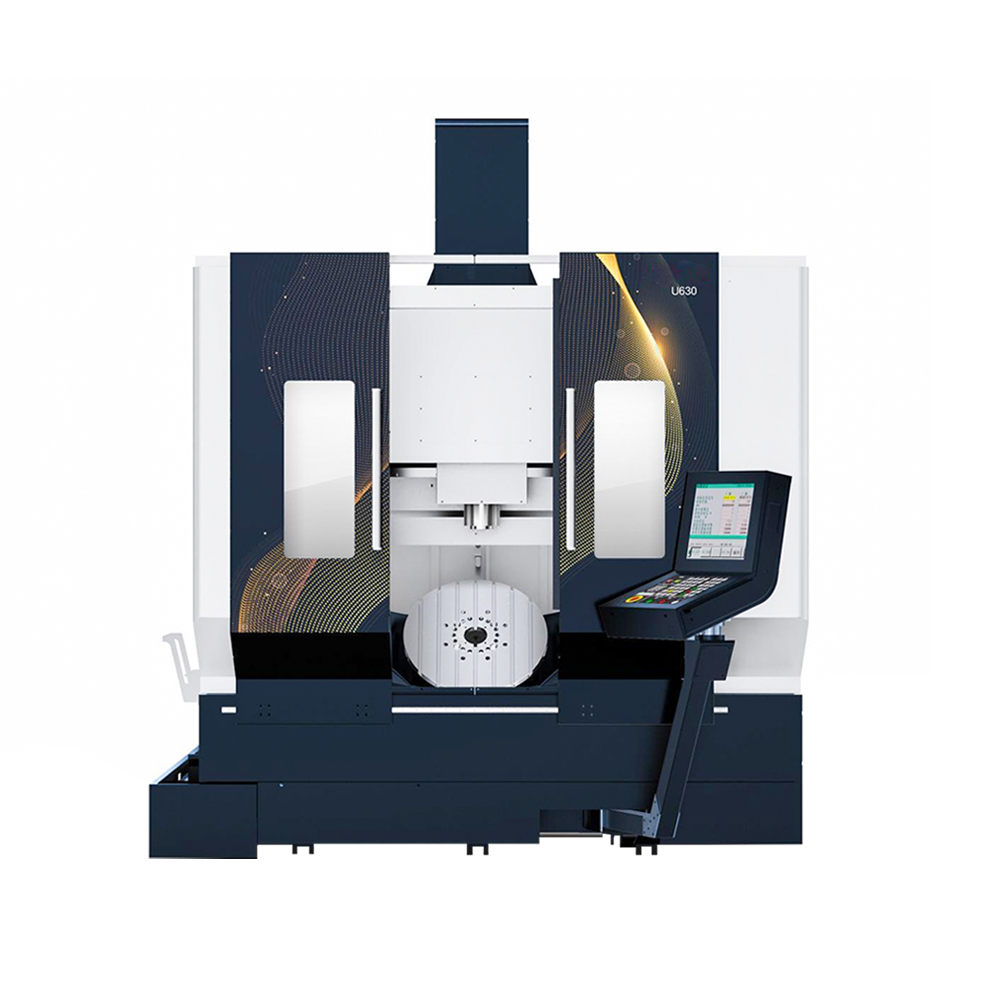

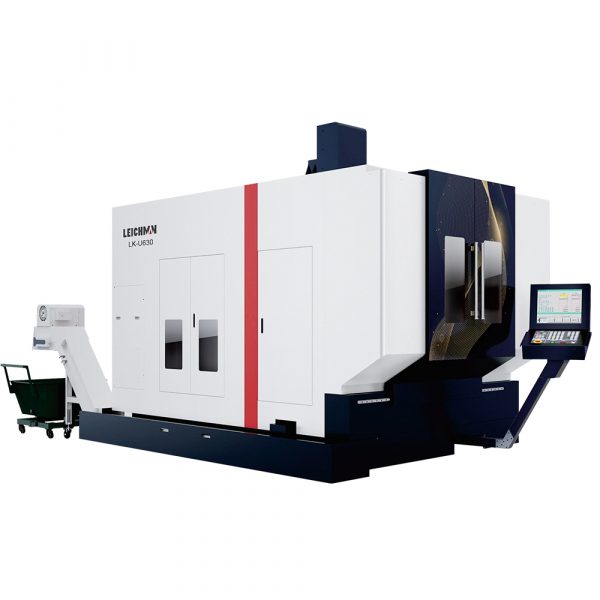

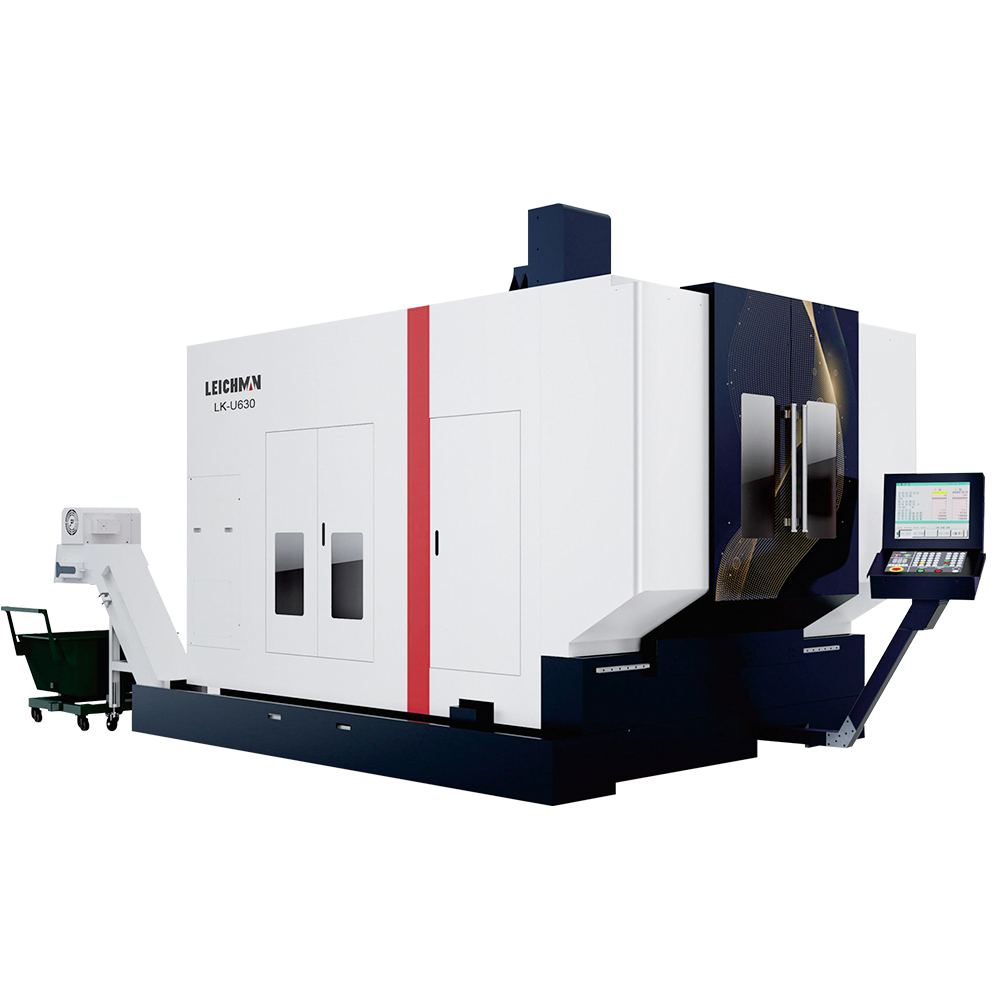

U-630 Gantry-Type Five-Axis Machining Center，automotive manufacturing, and 3C electronics, meeting demands for high complexity and exceptional machining stability.
| Specifications | Unit | LK-U630 | |
| Travel | X-axis travel | mm | 700 |
| Y-axis travel | mm | 900 | |
| Z-axis travel | mm | 500 | |
| Feeds | X-axis rapid traverse speed | m/min | 36 |
| Y-axis rapid traverse speed | m/min | 36 | |
| Z-axis rapid traverse speed | m/min | 36 | |
| X/Y/Z-axis positioning accuracy | mm | ±0.008 | |
| X/Y/Z-axis repeatability | mm | ±0.005 | |
| A axis | A-axis travel (tilting axis) | o | ±110 |
| A-axis maximum speed | rpm | 100 | |
| A-axis rated torque | N.m | 1300X2 | |
| A-axis positioning accuracy | arc | 8” | |
| A-axis repeatability | arc | 6” | |
| C axis | C-axis travel (rotary axis) | 。 | 360 |
| C-axis maximum speed | rpm | 100 | |
| C-axis rated torque | N.m | 1370 | |
| C-axis positioning accuracy | arc | 6” | |
| C-axis repeatability | arc | 4” | |
| A/C-axis brake type | / | Oil brake | |
| Worktable | Spindle nose to table | / | 650 |
| Surface max. distance | |||
| Table (rotary table) size | mm | 630 | |
| Rotary table load capacity | kg | 850 | |
| Spindle | Spindle taper | / | HSKA63 |
| Spindle Max. speed | rpm | 18000 | |
| Spindle rated power | kw | 32 | |
| Spindle rated torque | N.m | 52 | |
| Spindle Max. torque | N.m | 80 | |
| Tool Magazine | Tool magazine type | / | Umbrella-type |
| Tool magazine capacity | pcs | 40 | |
| Tool change time(T-T) | s | 7 | |
| Max. tool length | mm | 300 | |
| Max. tool weight | kg | 8 | |
| Others | Machine dimensions (L×W×H) | mm | 6300*2800*3200 |
| Machine weight | kg | 11000 | |
| Air supply requirement | kgf/cm2 | 6 | |
| Main Power | kw | 40 | |
This self-developed gantry-style 5-axis machining center is specifically designed for high-value industries such as aerospace, precision molds, medical devices, automotive manufacturing, and 3C electronics. It meets demanding requirements for high complexity, stability, and precision.
Key Features:
Advantages
Submit your machining requirements for a custom solution proposal within 24 hours.
This self-developed gantry-style 5-axis machining center is specifically designed for high-value industries such as aerospace, precision molds, medical devices, automotive manufacturing, and 3C electronics. It meets demanding requirements for high complexity, stability, and precision.
Key Features:
Advantages
