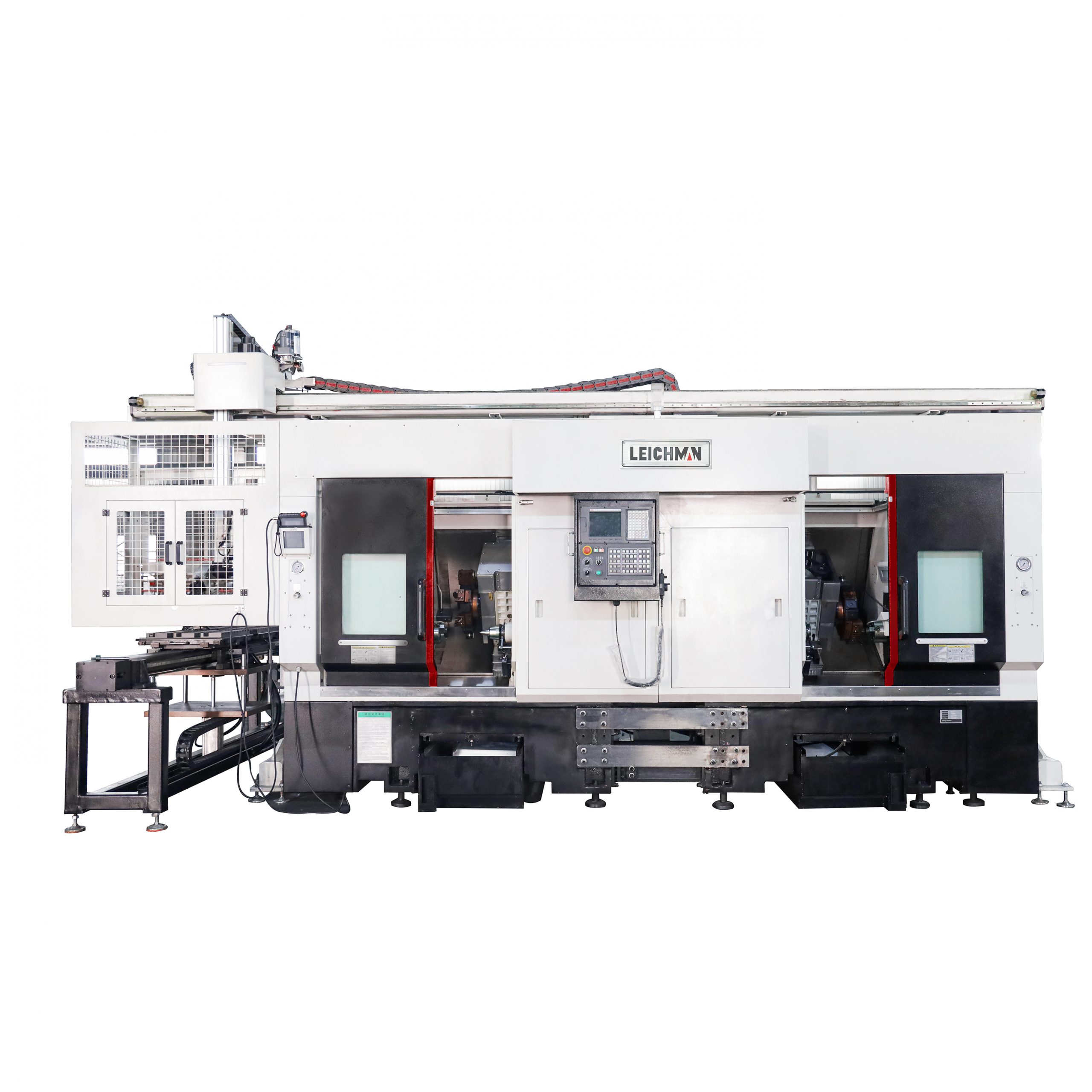

The ODS Series is an opposed dual-spindle, dual-turret mill-turn center designed for complete single-setup machining of complex rotary parts. Featuring dual A2-5 spindles (4000 RPM), simultaneous internal/external cutting, and optional gantry robot automation, it combines turning, milling, and drilling into one compact machine—drastically boosting production efficiency and saving shop-floor space
| ODS Series Facing Dual Spindles Dual Turrets CNC Lathe | |||||
|---|---|---|---|---|---|
| Project | Unit | Technical parameters | |||
| ODS15 | ODS20 | ODS20L | |||
| Processing scope | Maximum bed rotation diameter | mm | φ580 | φ580 | φ580 |
| Maximum cutting diameter | mm | φ280 | φ360 | φ360 | |
| Maximum processing length | mm | 300 | 300 | 500 | |
| Chuck face to center rest | mm | 320 | 320 | 520 | |
| X/Z-axis travel | mm | 160/300 | 200/300 | 200/500 | |
| X/Z-axis rapid feed | m/min | 30/30 | 30/30 | 30/30 | |
| Main shaft | Main shaft maximum speed | RPM | 4000 | 4000 | 4000 |
| Main motor power | kW | 5.5(x2) | 7.5/11(x2) | 7.5/11(x2) | |
| Main shaft through-hole diameter | mm | φ56 | φ63 | φ63 | |
| Maximum bar diameter through | mm | φ45 | φ52 | φ52 | |
| Main shaft center height | mm | 920 | 950 | 950 | |
| Main shaft tip specifications | – | A2-5 | A2-6 | A2-6 | |
| Tailstock | Bore diameter | mm | 80 | 80 | 80 |
| Sleeve cone hole | – | M4 | Morse 5# | Morse 5# | |
| Sleeve stroke | mm | 70 | 70 | 70 | |
| Tailor-made trip | mm | 150 | 150 | 360 | |
| Type of knife support | Form | – | Dota | Dota | Dota |
| Outside diameter cutter | mm | 25×25 | 25×25 | 25×25 | |
| Boring tool bar | mm | φ32 | φ40 | φ40 | |
| Cooling box capacity | L | 150(x2) | 150(x2) | 180(x2) | |
| Machine tool exterior dimensions (length x width x height) (excluding chip conveyor) | mm | 3650x1520x1530 | 3650x1550x1630 | 4152x1842x1630 | |
| Machine tool weight | t | 6 | 7 | 7.8 | |

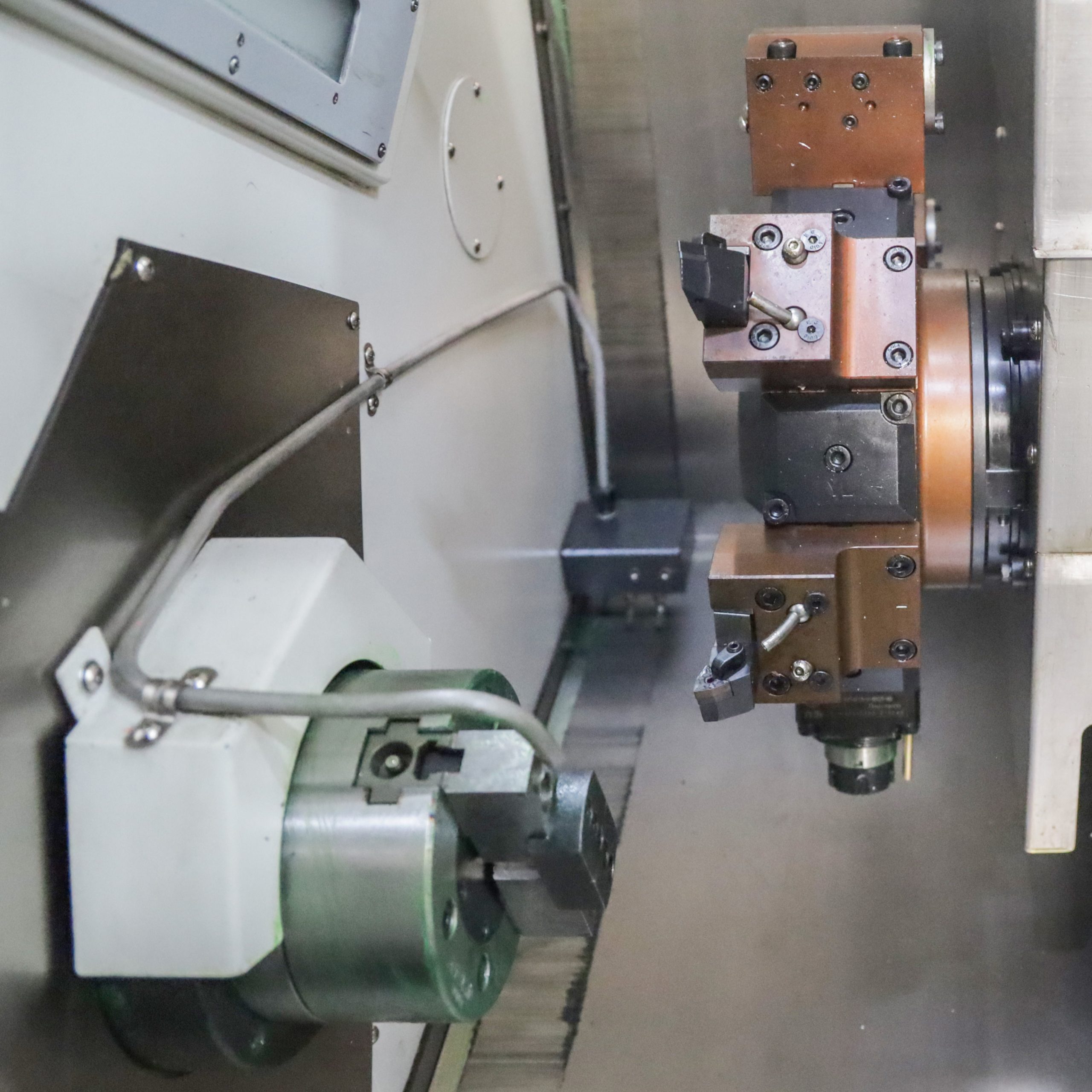

Facing Dual Spindles & Turrets: Opposed dual spindles and dual turrets enable simultaneous heavy duty cutting.
Thermal Symmetry Structure: Utilizes a special thermally symmetric spindle structure to ensure high precision machining.
Slant Bed & Chip Removal: Slant bed design with direct chip removal and flexible easily adjustable tailstock protection.
Dual Sequence Capability: One machine handles two sequences enabling both internal and external machining.

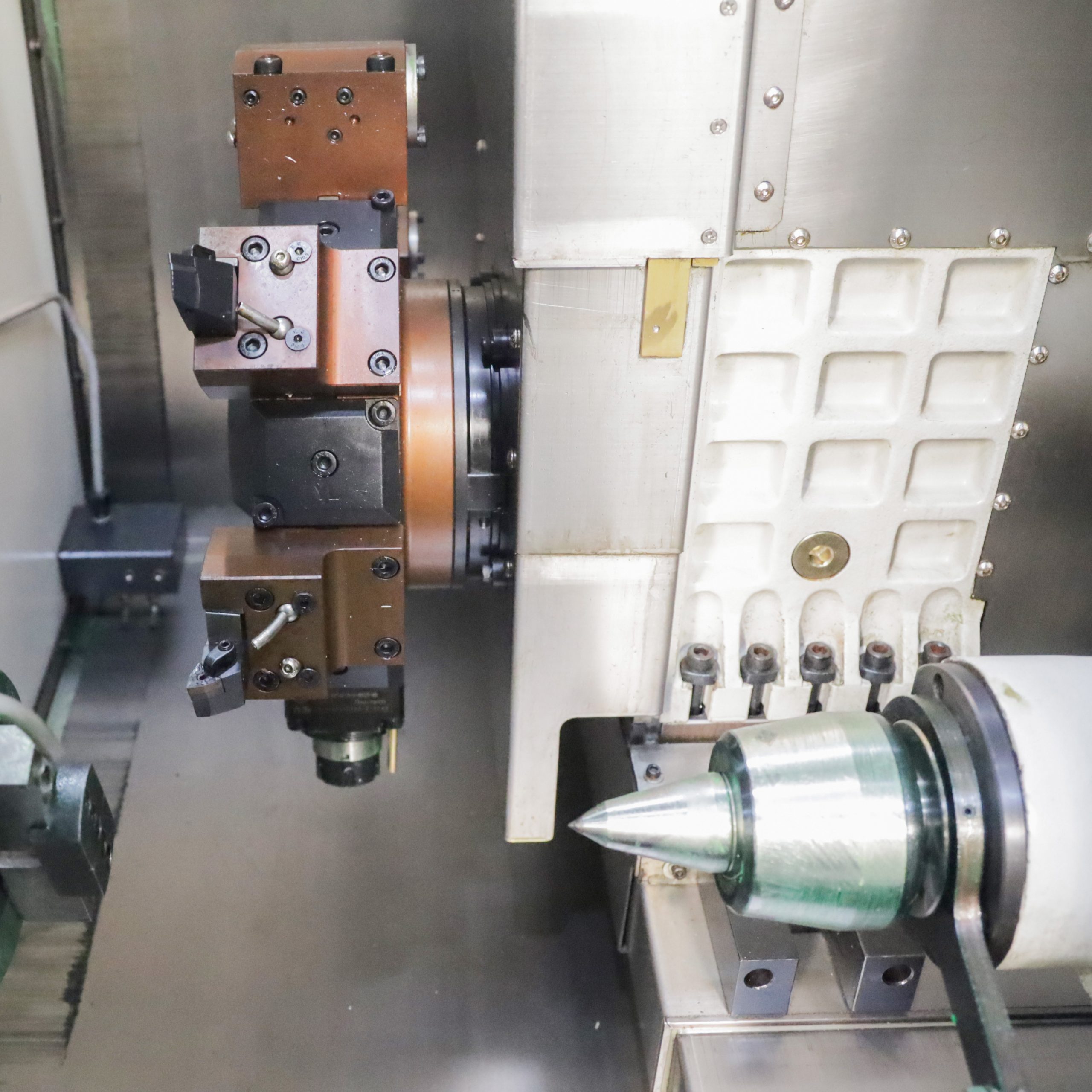

Flexible Shaft Processing: Can be equipped with a tailstock to accommodate various shaft components.
Mill Turn Capability: Optional Y axis with power tool turret for mill turn machining.
Automated Cell Solution: Optional gantry robotic arm for automated loading and unloading establishing an integrated machine cell solution.
Single-Setup Machining: Handles turning, milling, drilling, and tapping in 1 setup.
High Efficiency: Replaces two machines to save floor space and labor.
Superior Accuracy: 0.001° C-axis resolution for complex rotary parts
