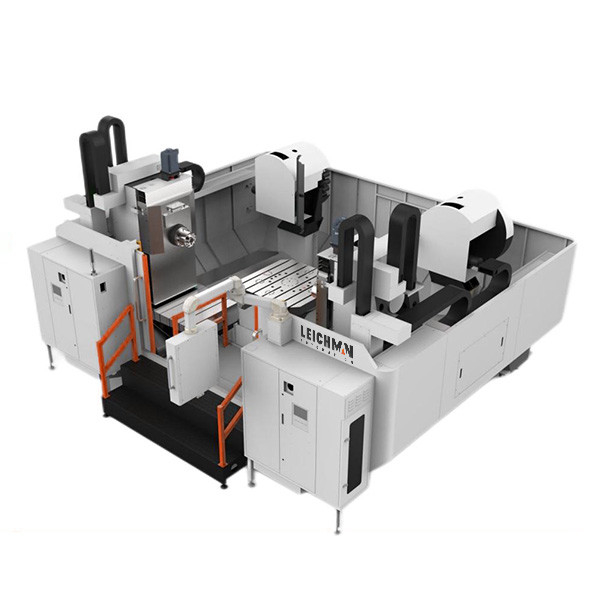

Customizable HMC1100-DS Horizontal Machining Center with Dual-Spindle Capability
This machine is a dual-channel machining center that can realize dual-spindle synchronous machining, realize different cutting operations synchronously, and achieve efficient machining;
This machine is also suitable for processing large box parts;
This machine can achieve heavy load and heavy cutting performance;
This machine Z1/Z2 is horizontal machining. It can also be modified to a vertical + horizontal combination to achieve multi-faceted machining;
Specifications | Standard Configuration | Optional/Remarks |
HMC1100-DS | ||
CNC system | HNC818 | Simens/Fnauc |
Spindle | BT50-3000 | BT50-6000 |
Tool magazine | BT50-24T | 30/40T |
Travel |
Channel 1 /2 XYZ:1500*600*600mm |
Can be customized according to needs |
Spindle nose to worktable center | 450-1050mm | Can be customized according to needs |
Spindle center to worktable surface | -50-500mm | Can be customized according to needs |
Turntable | Diameter 1100mm | 0/90/180/270 |
Chip removal method | Screw type | Optional external chain plate type |
